Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2014-08-18 19:46:42.4 |
| Date & Time (Local) | 1393/5/28 00:16:42.4 |

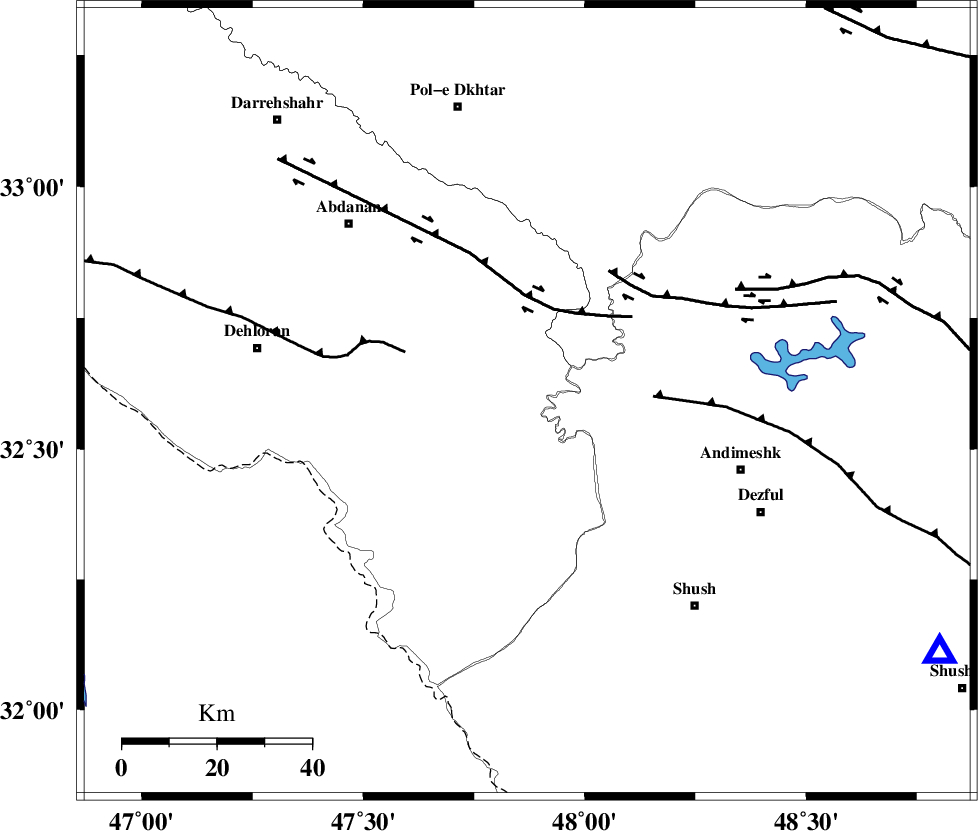

| Location | Lat:32.59 Lon: 47.87 |
| Region | Ilam Province, 48 km North-West of Andimeshk |
Nearest Cities |
|
| 37 km West of Hoseinieh, Khoozestan Province | |
| 39 km South West of Bidruyeh, Khoozestan Province | |
| 45 km South East of Sarabbagh, Ilam Province | |
| 47 km North West of Andimeshk, Khoozestan Province | |
| 47 km South West of Sorkhakan, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 20 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 27 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 28 km | |
| Number of Phases | 7 |
| RMS | 0.6 |
| Number of Stations | 5 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 14.7 km |
| Error in Depth | 19.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93051 | IIEES | SNGE | N | 498.8 | 0.8 | 2014-08-18 19:48:06 | 2014-08-18 09:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-18 19:46:59 | -0.67 | y | 103 | 121 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-18 19:47:13 | 0.61 | y | 103 | 121 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-18 19:47:25 | 0.6 | y | 282 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-18 19:47:27 | 0.34 | y | 296 | 42 | |||
| IIEES | ASAO | E | Sg | E | 2014-08-18 19:48:05 | 0.05 | y | 296 | 42 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-18 19:47:48 | -0.51 | y | 475 | 38 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-18 19:47:52 | -0.79 | y | 507 | 47 | |||
