Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-08-19 06:30:49.3 |
| Date & Time (Local) | 1393/5/28 11:00:49.3 |

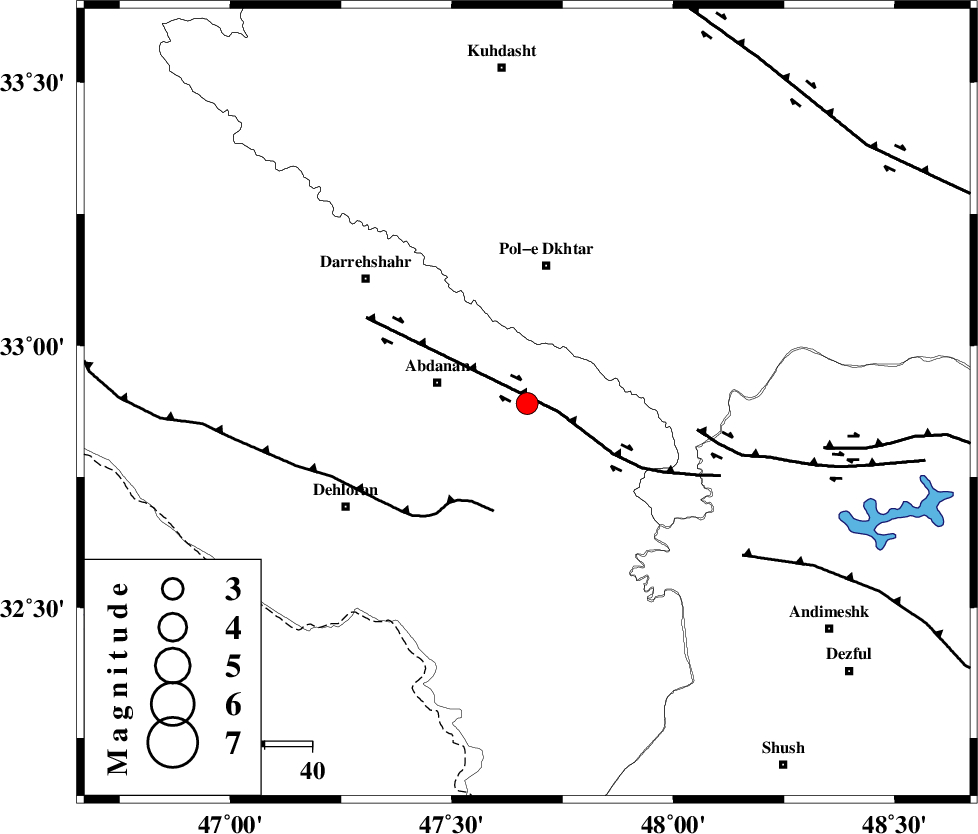

| Location | Lat:32.89 Lon: 47.67 |
| Region | Ilam Province, 19 km East of Abdanan |
Nearest Cities |
|
| 10 km East of Sarabbagh, Ilam Province | |
| 19 km East of Abdanan, Ilam Province | |
| 23 km South of Sarab hammam, Lorestan Province | |
| 30 km South of Pol-e dokhtar, Lorestan Province | |
| 40 km South of Morani, Lorestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 7 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 36 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93125 | IIEES | SHGR | N | 304.9 | 0.34 | 2014-08-19 06:31:35 | 2014-08-19 08:14:00 | n |
| 93126 | IIEES | SHGR | E | 383.3 | 0.48 | 2014-08-19 06:31:35 | 2014-08-19 08:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-19 06:31:12 | 0.28 | y | 137 | 129 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-19 06:31:28 | -0.18 | y | 137 | 129 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-19 06:31:25 | -0.39 | y | 234 | 66 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-19 06:31:27 | -0.08 | y | 246 | 353 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-19 06:31:58 | -0.07 | y | 246 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-19 06:31:32 | 0.49 | y | 285 | 49 | |||
| IIEES | ASAO | N | S | E | 2014-08-19 06:32:04 | 0.03 | y | 285 | 49 | |||
| IIEES | GHIR | Z | Pn | E | 2014-08-19 06:32:26 | -0.12 | y | 721 | 134 | |||
