Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-08-27 09:09:31.2 |
| Date & Time (Local) | 1393/6/5 13:39:31.2 |

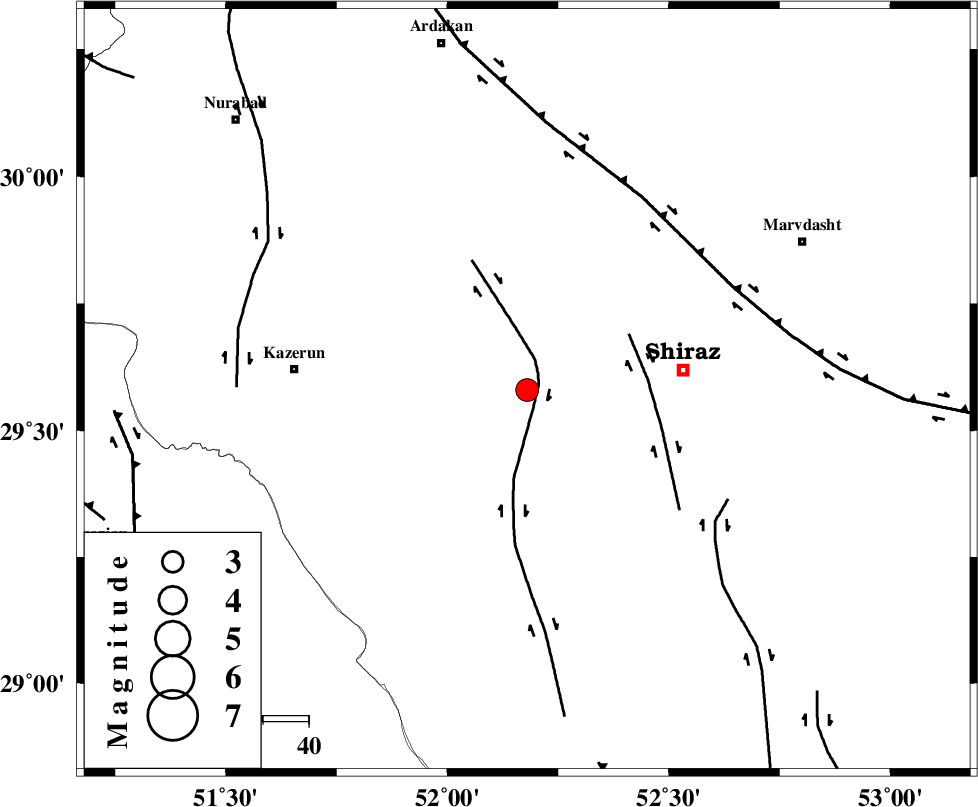

| Location | Lat:29.58 Lon: 52.18 |
| Region | Fars Province, 34 km West of Shiraz |
Nearest Cities |
|
| 10 km North of Richi, Fars Province | |
| 10 km of Khanehzanian, Fars Province | |
| 30 km East of Kalani, Fars Province | |
| 34 km West of Shiraz, Fars Province | |
| 39 km North West of Soltanabad, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 3 km | |
| SABZ_PUSHAN_F_Z3 (Length: 37 km) , Distance to epicenter: 25 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93342 | IIEES | AHRM | N | 363.9 | 0.28 | 2014-08-27 09:10:09 | 2014-08-27 11:58:00 | n |
| 93343 | IIEES | AHRM | E | 787 | 0.4 | 2014-08-27 09:10:10 | 2014-08-27 11:58:00 | n |
| 93344 | IIEES | GHIR | E | 466.4 | 0.52 | 2014-08-27 09:10:26 | 2014-08-27 11:58:00 | n |
| 93345 | IIEES | KRBR | E | 18.6 | 0.56 | 2014-08-27 09:11:53 | 2014-08-27 11:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2014-08-27 09:09:50 | -0.08 | y | 116 | 228 | |||
| IIEES | AHRM | N | Sg | E | 2014-08-27 09:10:05 | 0.05 | y | 116 | 228 | |||
| IIEES | GHIR | Z | Pg | E | 2014-08-27 09:09:58 | -0.02 | y | 163 | 151 | |||
| IIEES | GHIR | E | Sg | E | 2014-08-27 09:10:18 | 0.05 | y | 163 | 151 | |||
| IIEES | YZKH | Z | Pn | E | 2014-08-27 09:10:27 | 0.17 | y | 388 | 36 | |||
| IIEES | KRBR | Z | Pn | E | 2014-08-27 09:10:34 | -0.14 | y | 445 | 83 | |||
| IIEES | TABS | Z | Pn | E | 2014-08-27 09:10:59 | -0.07 | y | 651 | 45 | |||
