Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2014-08-27 20:01:25.1 |
| Date & Time (Local) | 1393/6/6 00:31:25.1 |

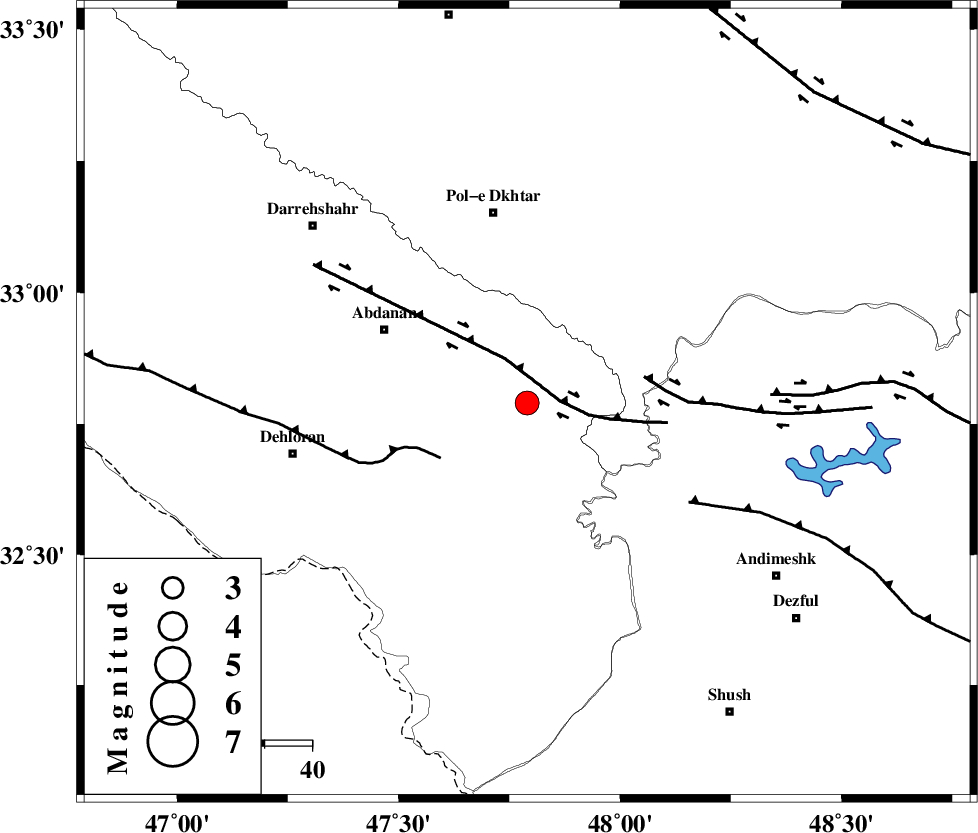

| Location | Lat:32.79 Lon: 47.79 |
| Region | Ilam Province, 41 km South of Pol-e dokhtar |
Nearest Cities |
|
| 24 km South East of Sarabbagh, Ilam Province | |
| 34 km South East of Abdanan, Ilam Province | |
| 35 km South East of Sarab hammam, Lorestan Province | |
| 41 km South of Pol-e dokhtar, Lorestan Province | |
| 42 km North West of Bidruyeh, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 7 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 25 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93363 | IIEES | SHGR | E | 769.9 | 0.28 | 2014-08-27 20:02:03 | 2014-08-27 09:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-27 20:01:45 | -0.02 | y | 122 | 128 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-27 20:02:00 | 0.02 | y | 122 | 128 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-27 20:02:00 | -0.15 | y | 228 | 62 | |||
| IIEES | KHMZ | Z | Sg | E | 2014-08-27 20:02:29 | 0 | y | 228 | 62 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-27 20:02:08 | 0.05 | y | 285 | 46 | |||
| IIEES | GHVR | Z | Pn | E | 2014-08-27 20:02:18 | 0.13 | y | 371 | 59 | |||
