Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2014-09-01 00:14:20.3 |
| Date & Time (Local) | 1393/6/10 04:44:20.3 |

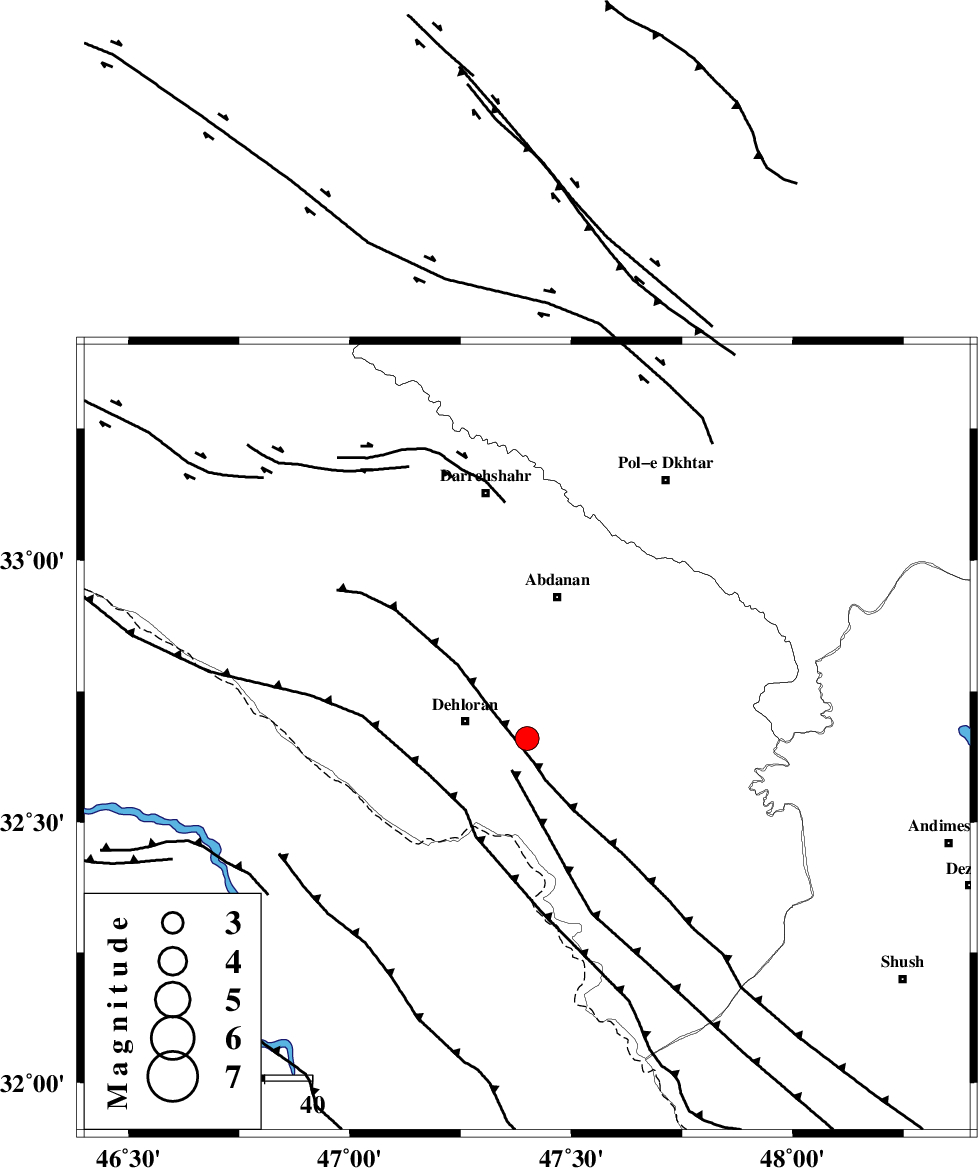

| Location | Lat:32.66 Lon: 47.4 |
| Region | Ilam Province, 14 km East of Dehloran |
Nearest Cities |
|
| 13 km North of Musian, Ilam Province | |
| 14 km East of Dehloran, Ilam Province | |
| 31 km South West of Sarabbagh, Ilam Province | |
| 31 km South of Abdanan, Ilam Province | |
| 44 km South East of Bishehzar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 2 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 40 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 64 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93428 | IIEES | SHGR | N | 594.7 | 0.68 | 2014-09-01 00:15:32 | 2014-09-01 03:30:00 | n |
| 93429 | IIEES | SNGE | N | 180.7 | 0.68 | 2014-09-01 00:15:45 | 2014-09-01 03:30:00 | n |
| 93430 | IIEES | ASAO | N | 125 | 0.55 | 2014-09-01 00:16:01 | 2014-09-01 03:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-09-01 00:14:44 | -0.21 | y | 145 | 115 | |||
| IIEES | SHGR | E | Sg | E | 2014-09-01 00:15:02 | 0.1 | y | 145 | 115 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-09-01 00:15:01 | -0.13 | y | 267 | 63 | |||
| IIEES | SNGE | Z | Pn | E | 2014-09-01 00:15:01 | -0.05 | y | 269 | 359 | |||
| IIEES | ASAO | Z | Pn | E | 2014-09-01 00:15:08 | 0.22 | y | 321 | 49 | |||
| IIEES | ASAO | N | Sg | E | 2014-09-01 00:15:50 | -0.1 | y | 321 | 49 | |||
| IIEES | GHVR | Z | Pn | E | 2014-09-01 00:15:19 | 0.23 | y | 410 | 60 | |||
