Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2014-09-24 03:17:13.2 |
| Date & Time (Local) | 1393/7/2 06:47:13.2 |
| Location | Lat:30.62 Lon: 57.22 |
| Region | Kerman Province, 39 km North-East of Kerman |
Nearest Cities |
|
| 9 km of Harjand, Kerman Province | |
| 14 km North of Dehlulu, Kerman Province | |
| 28 km North East of Hutak, Kerman Province | |
| 28 km South East of Hejdak, Kerman Province | |
| 30 km North East of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |

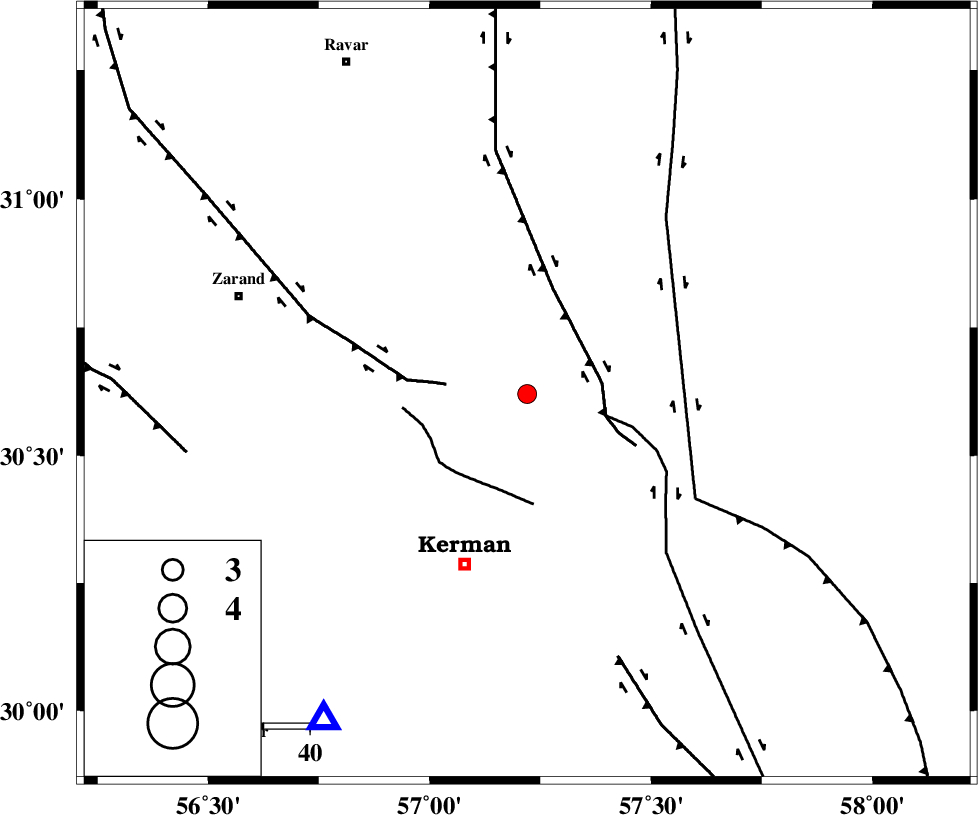

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 16 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 18 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 18 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93673 | IIEES | BSRN | N | 36.6 | 0.48 | 2014-09-24 03:18:21 | 2014-09-24 03:43:00 | n |
| 93674 | IIEES | YZKH | E | 27.7 | 0.52 | 2014-09-24 03:18:49 | 2014-09-24 03:43:00 | n |
| 93675 | IIEES | TABS | N | 21.6 | 0.56 | 2014-09-24 03:18:59 | 2014-09-24 03:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2014-09-24 03:17:27 | 0.1 | y | 83.4 | 212 | |||
| IIEES | KRBR | E | Sg | E | 2014-09-24 03:17:38 | -0.12 | y | 83.4 | 212 | |||
| IIEES | BSRN | Z | Pn | E | 2014-09-24 03:17:50 | 0.21 | y | 235 | 50 | |||
| IIEES | BSRN | N | Sg | E | 2014-09-24 03:18:19 | -0.15 | y | 235 | 50 | |||
| IIEES | YZKH | Z | Pn | E | 2014-09-24 03:18:00 | -0.05 | y | 317 | 309 | |||
