Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-10-03 01:13:22.9 |
| Date & Time (Local) | 1393/7/11 04:43:22.9 |

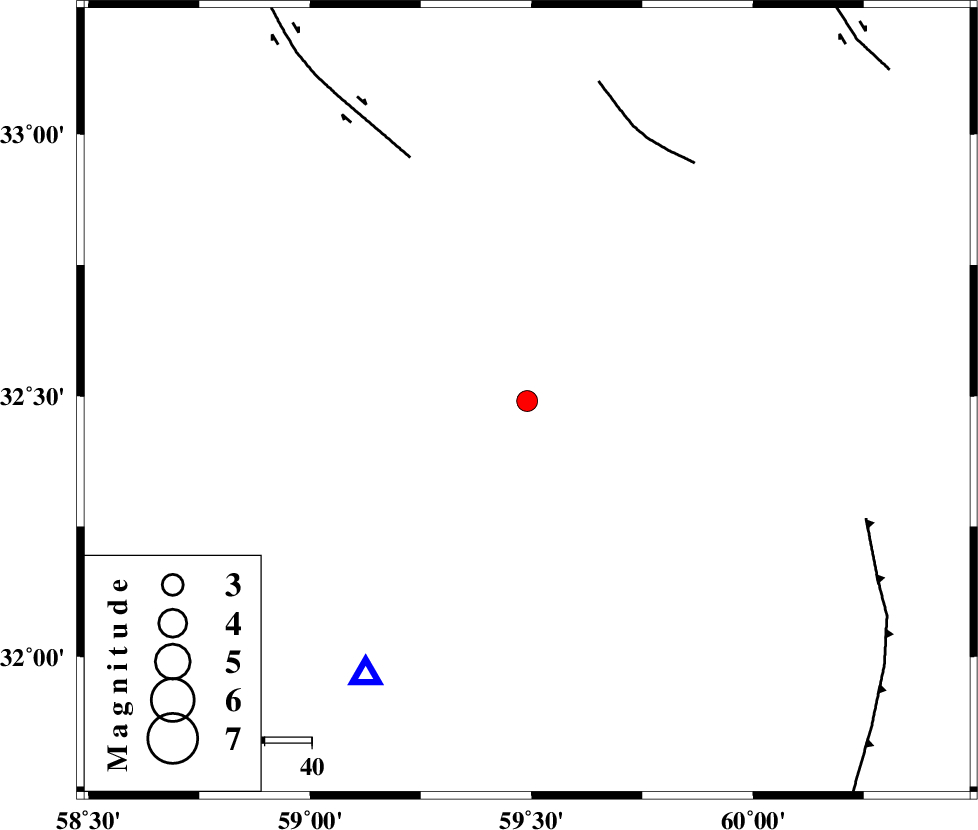

| Location | Lat:32.49 Lon: 59.49 |
| Region | Khorasan(south) Province, 32 km South-West of Sarbisheh |
Nearest Cities |
|
| 5 km of Kalateh soleyman, Khorasan(south) Province | |
| 11 km North East of Mokhtaran, Khorasan(south) Province | |
| 18 km South East of Gaz, Khorasan(south) Province | |
| 30 km South of Mud, Khorasan(south) Province | |
| 31 km West of Salmabad, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 57 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 61 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 76 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93732 | IIEES | KRBR | E | 29.8 | 0.52 | 2014-10-03 01:15:16 | 2014-10-03 01:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2014-10-03 01:13:47 | -0.02 | y | 148 | 30 | |||
| IIEES | SHRT | E | Sg | E | 2014-10-03 01:14:05 | -0.02 | y | 148 | 30 | |||
| IIEES | KRBR | Z | Pn | E | 2014-10-03 01:14:18 | 0.21 | y | 381 | 224 | |||
| IIEES | KRBR | E | Sg | E | 2014-10-03 01:15:09 | -0.17 | y | 381 | 224 | |||
| IIEES | YZKH | Z | Pn | E | 2014-10-03 01:14:28 | 0.02 | y | 461 | 270 | |||
