Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-12-13 05:17:56.5 |
| Date & Time (Local) | 1393/9/22 08:47:56.5 |

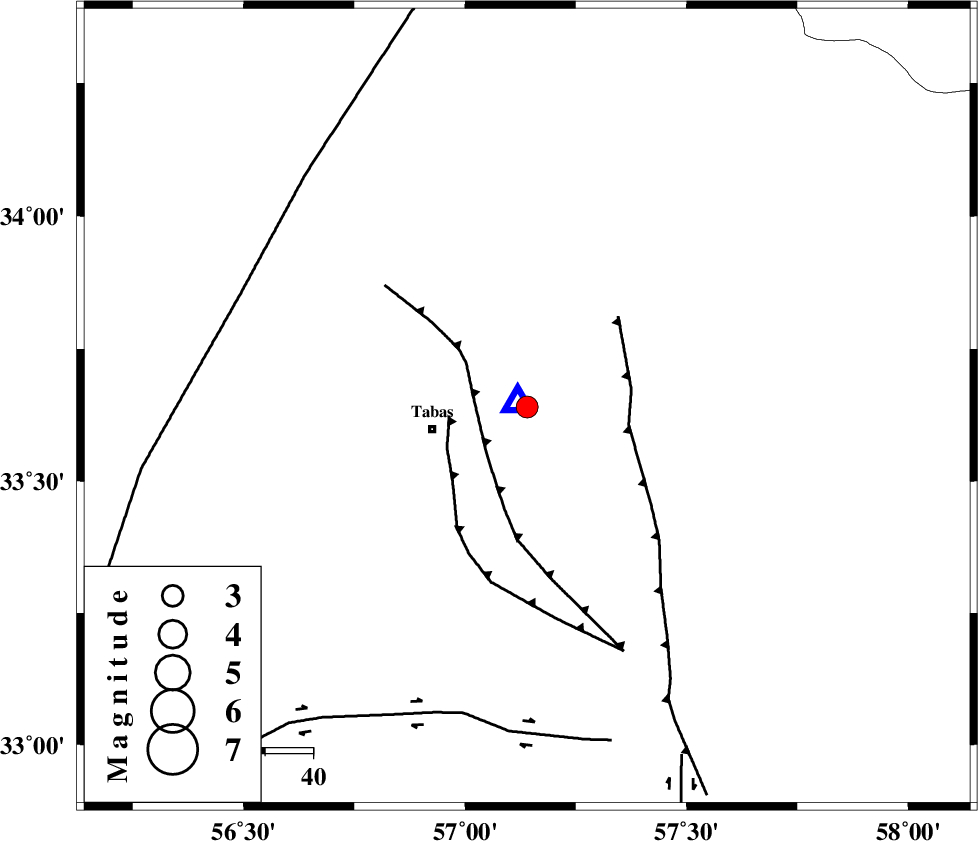

| Location | Lat:33.64 Lon: 57.14 |
| Region | Yazd Province, 20 km East of Tabas |
Nearest Cities |
|
| 20 km North East of Tabas, Yazd Province | |
| 23 km South West of Reqqeh, Khorasan(center) Province | |
| 23 km North East of Oshtoqran, Yazd Province | |
| 24 km West of Arsak, Khorasan(center) Province | |
| 29 km North East of Kerit, Yazd Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 12 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 16 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 22 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94511 | IIEES | TABS | N | 8054.6 | 0.13 | 2014-12-13 05:18:01 | 2014-12-13 05:54:00 | n |
| 94512 | IIEES | YZKH | N | 91.4 | 0.43 | 2014-12-13 05:19:15 | 2014-12-13 05:54:00 | n |
| 94513 | IIEES | YZKH | E | 88.4 | 0.28 | 2014-12-13 05:19:17 | 2014-12-13 05:54:00 | n |
| 94514 | IIEES | KRBR | E | 42 | 0.31 | 2014-12-13 05:19:53 | 2014-12-13 05:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2014-12-13 05:17:58 | 0.06 | y | 2.37 | 298 | |||
| IIEES | BSRN | Z | Pn | E | 2014-12-13 05:18:36 | -0.4 | y | 263 | 134 | |||
| IIEES | YZKH | Z | Pn | E | 2014-12-13 05:18:38 | -0.35 | y | 276 | 241 | |||
| IIEES | YZKH | N | Sn | 2014-12-13 05:19:10 | 0.22 | y | 276 | 241 | ||||
| IIEES | SHRT | Z | Pn | E | 2014-12-13 05:18:41 | 0.25 | y | 292 | 89 | |||
| IIEES | KRBR | Z | Pn | E | 2014-12-13 05:18:55 | 0.43 | y | 407 | 185 | |||
| IIEES | NASN | Z | Pn | E | 2014-12-13 05:18:55 | -0.29 | y | 415 | 258 | |||
| IIEES | GHVR | Z | Pn | E | 2014-12-13 05:19:13 | 0.36 | y | 552 | 281 | |||
| IIEES | ASAO | Z | Pn | E | 2014-12-13 05:19:26 | -0.24 | y | 664 | 281 | |||
