Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2015-08-24 06:27:17.5 |
| Date & Time (Local) | 1394/6/2 10:57:17.5 |

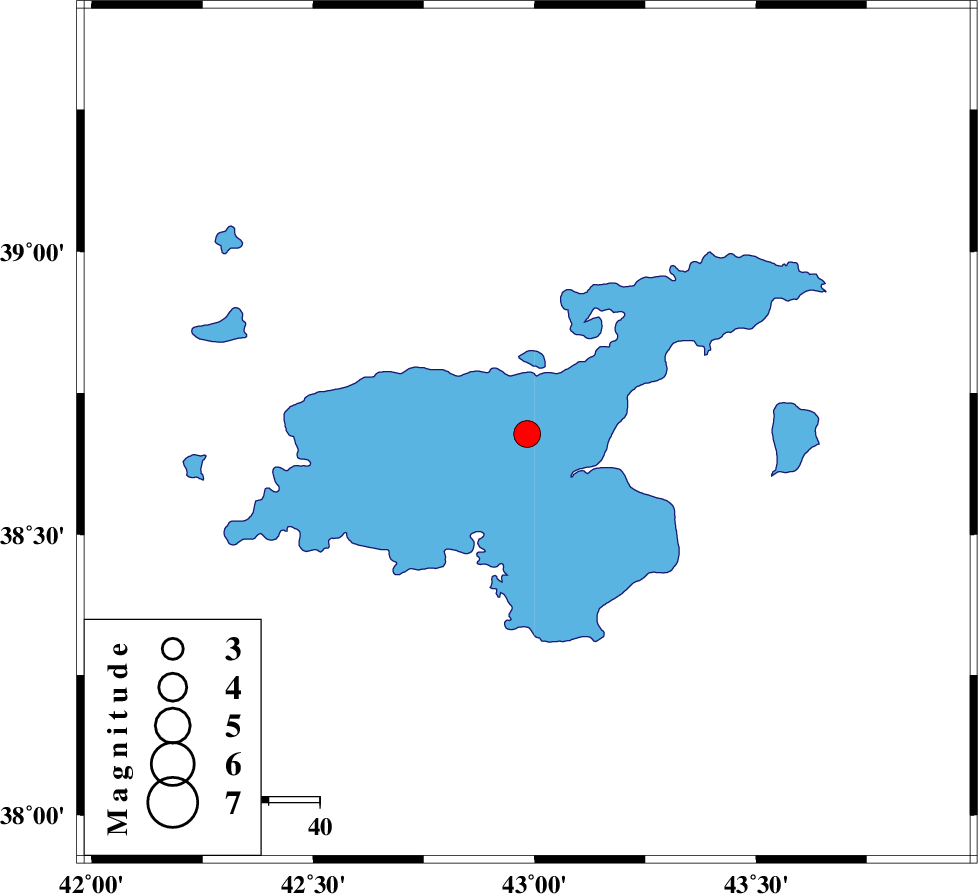

| Location | Lat:38.678 Lon: 42.983 |
| Region | Turkey |
Nearest Cities |
|
| 117 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 118 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 127 km North West of Gatur, Azarbaijan Gharbi Province | |
| 129 km South West of Arab dizaj, Azarbaijan Gharbi Province | |
| 130 km South West of Zavieh, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 111 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 144 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100455 | IIEES | GRMI | N | 130.8 | 0.75 | 2015-08-24 06:29:40 | 2015-08-25 11:53:00 | n |
| 100456 | IIEES | GRMI | E | 150.8 | 0.97 | 2015-08-24 06:29:40 | 2015-08-25 11:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2015-08-24 06:27:44 | -0.21 | y | 165 | 62 | |||
| IIEES | MAKU | N | Sg | E | 2015-08-24 06:28:05 | 0.25 | y | 165 | 62 | |||
| IIEES | GRMI | Z | Pn | E | 2015-08-24 06:28:18 | -0.04 | y | 427 | 87 | |||
| IIEES | GRMI | N | Sg | E | 2015-08-24 06:29:16 | -0.17 | y | 427 | 87 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-08-24 06:28:33 | 0 | y | 550 | 112 | |||
| IIEES | SNGE | Z | Pn | E | 2015-08-24 06:28:34 | 0.19 | y | 556 | 134 | |||
