Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2015-08-30 14:38:41.6 |
| Date & Time (Local) | 1394/6/8 19:08:41.6 |

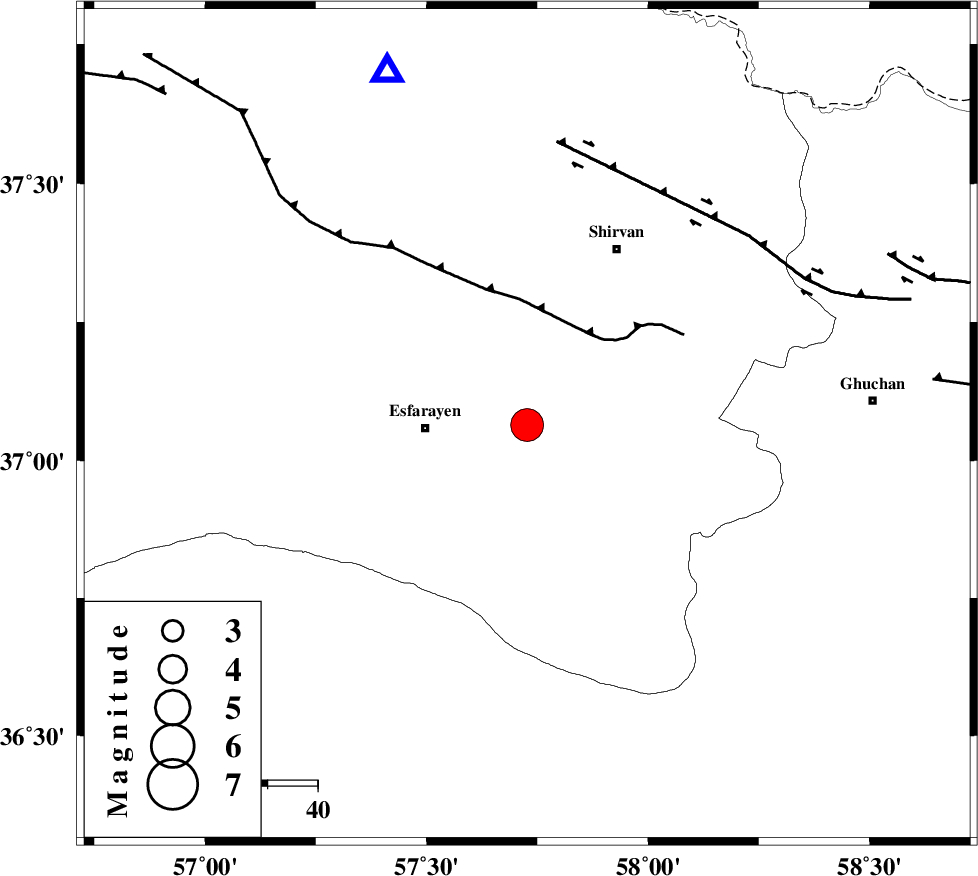

| Location | Lat:37.064 Lon: 57.727 |
| Region | Khorasan(north) Province, 20 km -East of Esfarayen |
Nearest Cities |
|
| 11 km East of Parkanlu, Khorasan(north) Province | |
| 20 km North East of Abbasabad, Khorasan(north) Province | |
| 20 km North East of Esfarayen, Khorasan(north) Province | |
| 24 km South West of Geliyan, Khorasan(north) Province | |
| 26 km North West of Bam, Khorasan(north) Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 11 km | |
| RIVAND_F (Length: 70 km) , Distance to epicenter: 31 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 49 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 21 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100620 | IIEES | BJRD | E | 20215.4 | 0.39 | 2015-08-30 14:39:08 | 2015-08-31 05:47:00 | n |
| 100621 | IIEES | MRVT | E | 18176.2 | 0.5 | 2015-08-30 14:39:35 | 2015-08-31 05:47:00 | n |
| 100622 | IIEES | MRVT | N | 16117.8 | 0.5 | 2015-08-30 14:39:36 | 2015-08-31 05:47:00 | n |
| 100623 | IIEES | SHRO | E | 8101.2 | 0.67 | 2015-08-30 14:39:40 | 2015-08-31 05:47:00 | n |
| 100624 | IIEES | SHRO | N | 7046.4 | 0.63 | 2015-08-30 14:39:41 | 2015-08-31 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2015-08-30 14:38:54 | -0.41 | y | 76 | 338 | |||
| IIEES | BJRD | E | Sg | E | 2015-08-30 14:39:04 | 0.01 | y | 76 | 338 | |||
| IIEES | MRVT | Z | Pg | E | 2015-08-30 14:39:08 | 0.2 | y | 159 | 295 | |||
| IIEES | MRVT | N | Sg | E | 2015-08-30 14:39:27 | 0.25 | y | 159 | 295 | |||
| IIEES | SHRO | Z | Pg | E | 2015-08-30 14:39:13 | 0.07 | y | 193 | 233 | |||
| IIEES | SHRO | N | Sg | E | 2015-08-30 14:39:36 | -0.13 | y | 193 | 233 | |||
| IIEES | TABS | Z | Pn | E | 2015-08-30 14:39:36 | 0.05 | y | 383 | 188 | |||
| IIEES | SHRT | Z | Pn | E | 2015-08-30 14:39:44 | 0.4 | y | 445 | 148 | |||
| IIEES | DAMV | Z | Pn | E | 2015-08-30 14:39:57 | 0.62 | y | 541 | 255 | |||
| IIEES | BSRN | Z | Pn | E | 2015-08-30 14:40:01 | -0.19 | y | 580 | 167 | |||
| IIEES | YZKH | Z | Pn | E | 2015-08-30 14:40:02 | -0.61 | y | 592 | 210 | |||
| IIEES | CHTH | Z | Pn | E | 2015-08-30 14:40:05 | 0.75 | y | 605 | 260 | |||
| IIEES | THKV | Z | Pn | E | 2015-08-30 14:40:06 | -0.4 | y | 627 | 260 | |||
| IIEES | NASN | Z | Pn | E | 2015-08-30 14:40:09 | -0.59 | y | 652 | 225 | |||
| IIEES | GHVR | Z | Pn | E | 2015-08-30 14:40:09 | -0.28 | y | 652 | 246 | |||
| IIEES | ASAO | Z | Pn | E | 2015-08-30 14:40:22 | -0.22 | y | 750 | 250 | |||
| IIEES | KRBR | Z | Pn | E | 2015-08-30 14:40:28 | 0.82 | y | 790 | 187 | |||
| IIEES | KHMZ | Z | Pn | E | 2015-08-30 14:40:27 | -0.16 | y | 795 | 245 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-08-30 14:40:29 | -0.32 | y | 807 | 270 | |||
| IIEES | ZHSF | Z | Pn | E | 2015-08-30 14:40:38 | 0.25 | y | 874 | 160 | |||
| IIEES | SNGE | Z | Pn | E | 2015-08-30 14:40:48 | -0.29 | y | 960 | 260 | |||
| IIEES | BNDS | Z | Pn | E | 2015-08-30 14:41:03 | -0.22 | y | 1081 | 188 | |||
| IIEES | AHRM | Z | Pn | E | 2015-08-30 14:41:04 | -0.27 | y | 1089 | 215 | |||
| IIEES | MAKU | Z | Pn | E | 2015-08-30 14:41:14 | -0.17 | y | 1169 | 287 | |||
