Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2015-10-13 17:35:51.1 |
| Date & Time (Local) | 1394/7/21 21:05:51.1 |

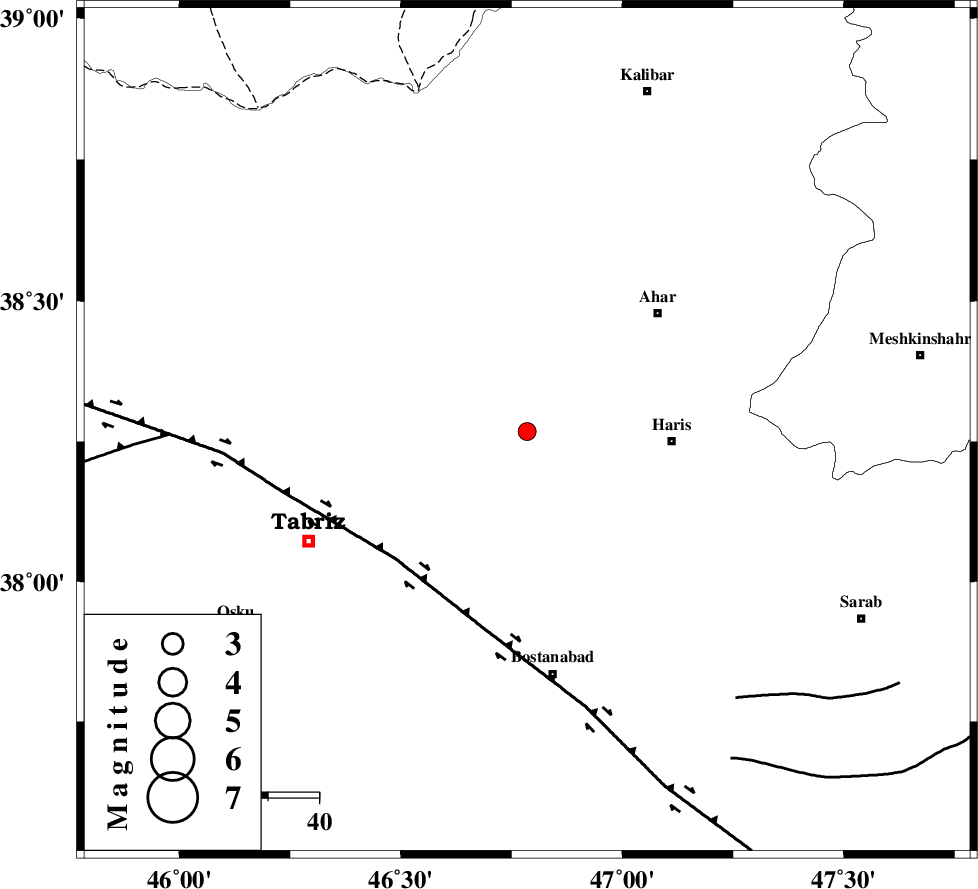

| Location | Lat:38.268 Lon: 46.785 |
| Region | Azarbaijan Sharghi Province, 29 km -West of Haris |
Nearest Cities |
|
| 8 km North of Bilverdi, Azarbaijan Sharghi Province | |
| 15 km West of Nikcheh, Azarbaijan Sharghi Province | |
| 15 km East of Sarand, Azarbaijan Sharghi Province | |
| 20 km North West of Bakhshayesh, Azarbaijan Sharghi Province | |
| 21 km North East of Khvajeh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 36 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 67 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 70 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 101721 | IIEES | GRMI | E | 99.8 | 0.19 | 2015-10-13 17:36:28 | 2015-10-14 08:48:00 | n |
| 101722 | IIEES | GRMI | N | 106.1 | 0.14 | 2015-10-13 17:36:31 | 2015-10-14 08:48:00 | n |
| 101723 | IIEES | MAKU | N | 47.1 | 0.47 | 2015-10-13 17:36:56 | 2015-10-14 08:48:00 | n |
| 101724 | IIEES | ZNJK | E | 28.7 | 0.39 | 2015-10-13 17:37:06 | 2015-10-14 08:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2015-10-13 17:36:10 | 0.03 | y | 114 | 58 | |||
| IIEES | GRMI | N | Sg | E | 2015-10-13 17:36:24 | -0.02 | y | 114 | 58 | |||
| IIEES | MAKU | Z | Pn | E | 2015-10-13 17:36:26 | 0.14 | y | 219 | 304 | |||
| IIEES | MAKU | N | Sg | E | 2015-10-13 17:36:53 | -0.11 | y | 219 | 304 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-10-13 17:36:29 | 0.01 | y | 244 | 136 | |||
| IIEES | ZNJK | N | Sg | E | 2015-10-13 17:37:00 | -0.05 | y | 244 | 136 | |||
