Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2015-10-16 23:38:52.7 |
| Date & Time (Local) | 1394/7/25 03:08:52.7 |

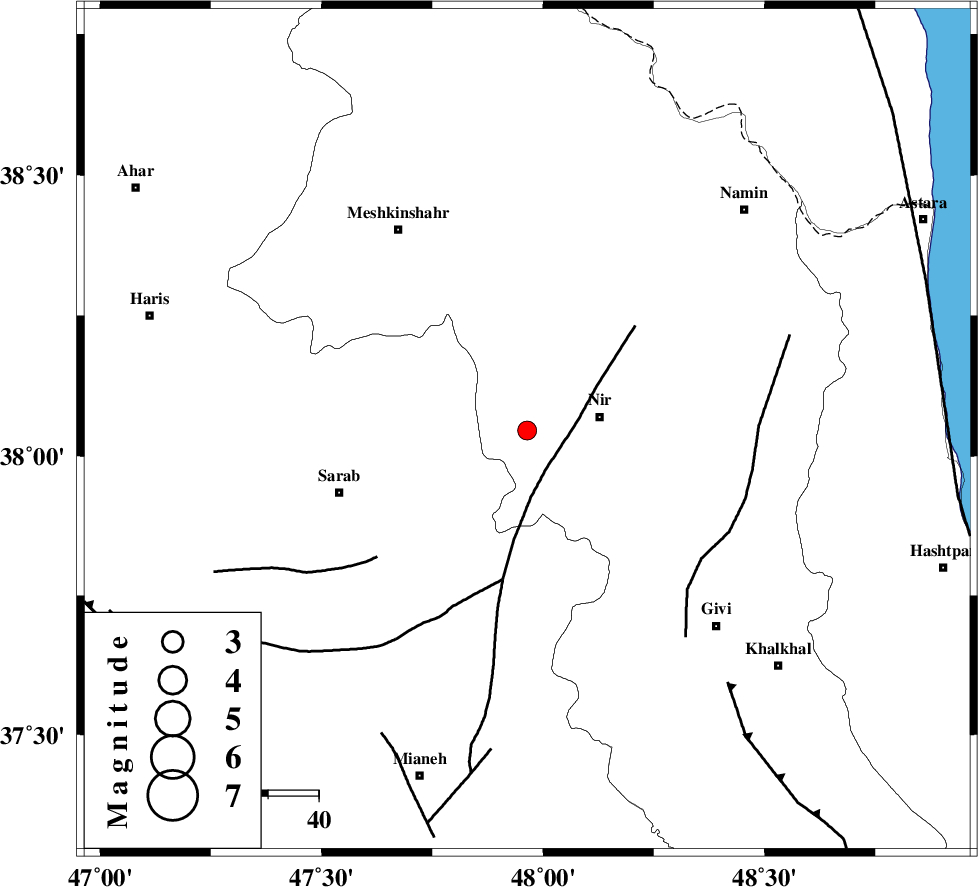

| Location | Lat:38.045 Lon: 47.964 |
| Region | Ardebil Province, 15 km -West of Nir |
Nearest Cities |
|
| 11 km North of Qarehshiran, Ardebil Province | |
| 12 km of Eslamabad, Ardebil Province | |
| 14 km North East of Kalian, Azarbaijan Sharghi Province | |
| 15 km West of Nir, Ardebil Province | |
| 17 km West of Rezaqoli qeshlaq, Ardebil Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 9 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 43 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 64 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 3 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 101768 | IIEES | GRMI | E | 208.9 | 0.13 | 2015-10-16 23:39:19 | 2015-10-17 08:31:00 | n |
| 101769 | IIEES | MAKU | N | 29.4 | 0.53 | 2015-10-16 23:40:31 | 2015-10-17 08:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2015-10-16 23:39:07 | 0.53 | y | 85.1 | 356 | |||
| IIEES | GRMI | N | Sg | E | 2015-10-16 23:39:17 | -0.36 | y | 85.1 | 356 | |||
| IIEES | ZNJK | Z | Pg | E | 2015-10-16 23:39:20 | -0.13 | y | 165 | 157 | |||
| IIEES | MAKU | Z | Pn | E | 2015-10-16 23:39:40 | -0.02 | y | 320 | 298 | |||
| IIEES | MAKU | N | Sg | E | 2015-10-16 23:40:22 | -0.02 | y | 320 | 298 | |||
