Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2015-10-31 20:47:22.8 |
| Date & Time (Local) | 1394/8/10 00:17:22.8 |

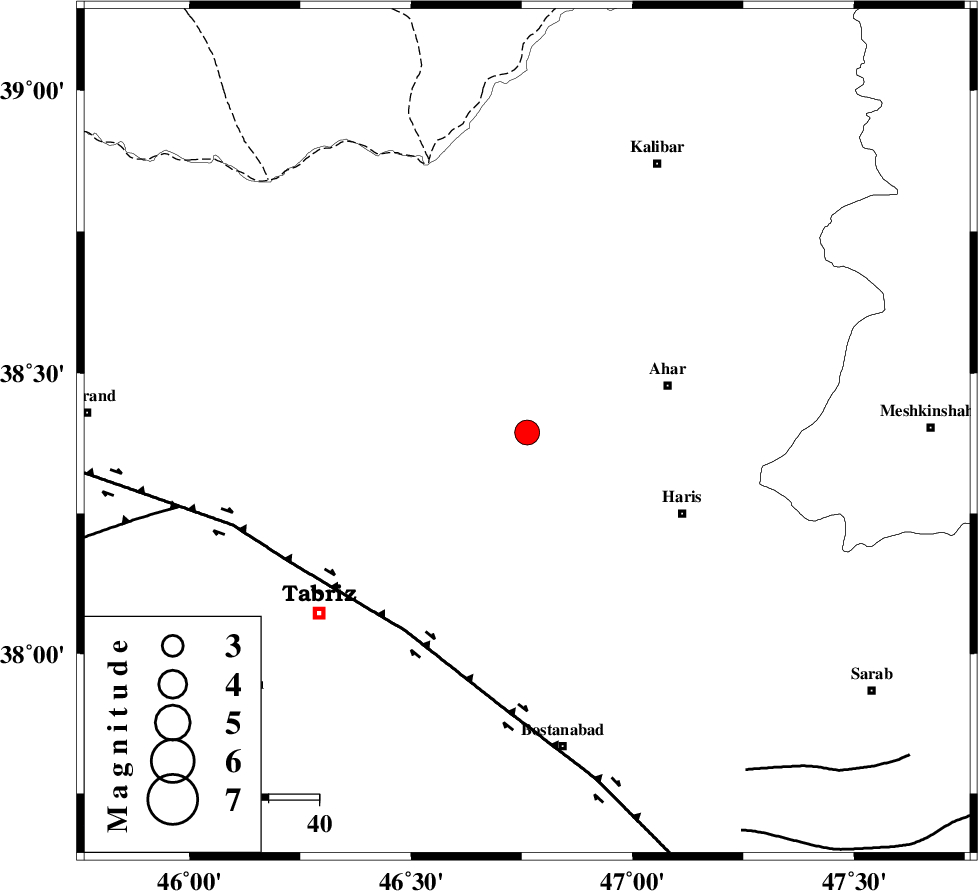

| Location | Lat:38.394 Lon: 46.762 |
| Region | Azarbaijan Sharghi Province, 29 km -West of Ahar |
Nearest Cities |
|
| 15 km East of Varzagan, Azarbaijan Sharghi Province | |
| 17 km North East of Sarand, Azarbaijan Sharghi Province | |
| 19 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 20 km North of Bilverdi, Azarbaijan Sharghi Province | |
| 21 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 46 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 70 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 80 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 102139 | IIEES | MAKU | N | 566.8 | 0.45 | 2015-10-31 20:48:30 | 2015-11-01 10:06:00 | n |
| 102140 | IIEES | MAKU | E | 191.5 | 0.54 | 2015-10-31 20:48:32 | 2015-11-01 10:06:00 | n |
| 102141 | IIEES | ZNJK | N | 393.9 | 0.34 | 2015-10-31 20:48:36 | 2015-11-01 10:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2015-10-31 20:47:41 | 0.17 | y | 109 | 65 | |||
| IIEES | GRMI | N | Sg | E | 2015-10-31 20:47:54 | -0.15 | y | 109 | 65 | |||
| IIEES | MAKU | Z | Pn | E | 2015-10-31 20:47:56 | -0.02 | y | 210 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-10-31 20:48:02 | -0.04 | y | 256 | 138 | |||
| IIEES | ZNJK | N | Sg | E | 2015-10-31 20:48:35 | -0.02 | y | 256 | 138 | |||
| IIEES | SNGE | Z | Pn | E | 2015-10-31 20:48:16 | -0.31 | y | 370 | 172 | |||
| IIEES | ASAO | Z | Pn | E | 2015-10-31 20:48:35 | 0.49 | y | 517 | 145 | |||
