Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2015-12-21 21:09:10.3 |
| Date & Time (Local) | 1394/10/1 00:39:10.3 |

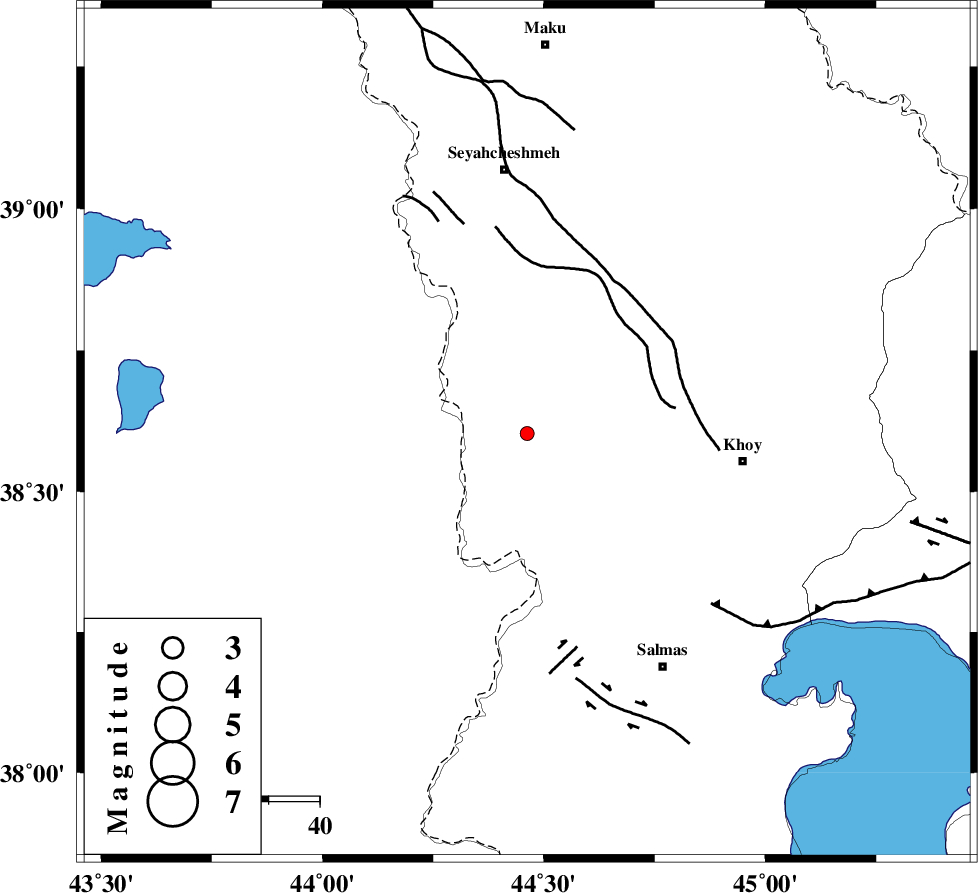

| Location | Lat:38.603 Lon: 44.462 |
| Region | Azarbaijan Gharbi Province, 52 km South of Seyah Cheshmah |
Nearest Cities |
|
| 5 km of Baleh sur-e sofla, Azarbaijan Gharbi Province | |
| 14 km North of Gatur, Azarbaijan Gharbi Province | |
| 25 km South of Zarabad, Azarbaijan Gharbi Province | |
| 30 km North West of Beyk sofla, Azarbaijan Gharbi Province | |
| 41 km North West of Saylab, Azarbaijan Gharbi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 30 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 43 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 49 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 102990 | IIEES | MAKU | N | 93.6 | 0.34 | 2015-12-21 21:09:41 | 2015-12-22 07:56:00 | n |
| 102991 | IIEES | GRMI | E | 3.8 | 0.44 | 2015-12-21 21:10:38 | 2015-12-22 07:56:00 | n |
| 102992 | IIEES | GRMI | N | 5 | 0.38 | 2015-12-21 21:10:39 | 2015-12-22 07:56:00 | n |
| 102993 | IIEES | SNGE | N | 1 | 0.72 | 2015-12-21 21:11:44 | 2015-12-22 07:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2015-12-21 21:09:25 | 0 | y | 85.6 | 13 | |||
| IIEES | GRMI | Z | Pn | E | 2015-12-21 21:09:55 | 0 | y | 299 | 85 | |||
| IIEES | GRMI | N | Sg | E | 2015-12-21 21:10:34 | 0 | y | 299 | 85 | |||
| IIEES | SNGE | Z | Pn | E | 2015-12-21 21:10:16 | 0 | y | 467 | 146 | |||
