Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2015-12-24 02:41:27.9 |
| Date & Time (Local) | 1394/10/3 06:11:27.9 |

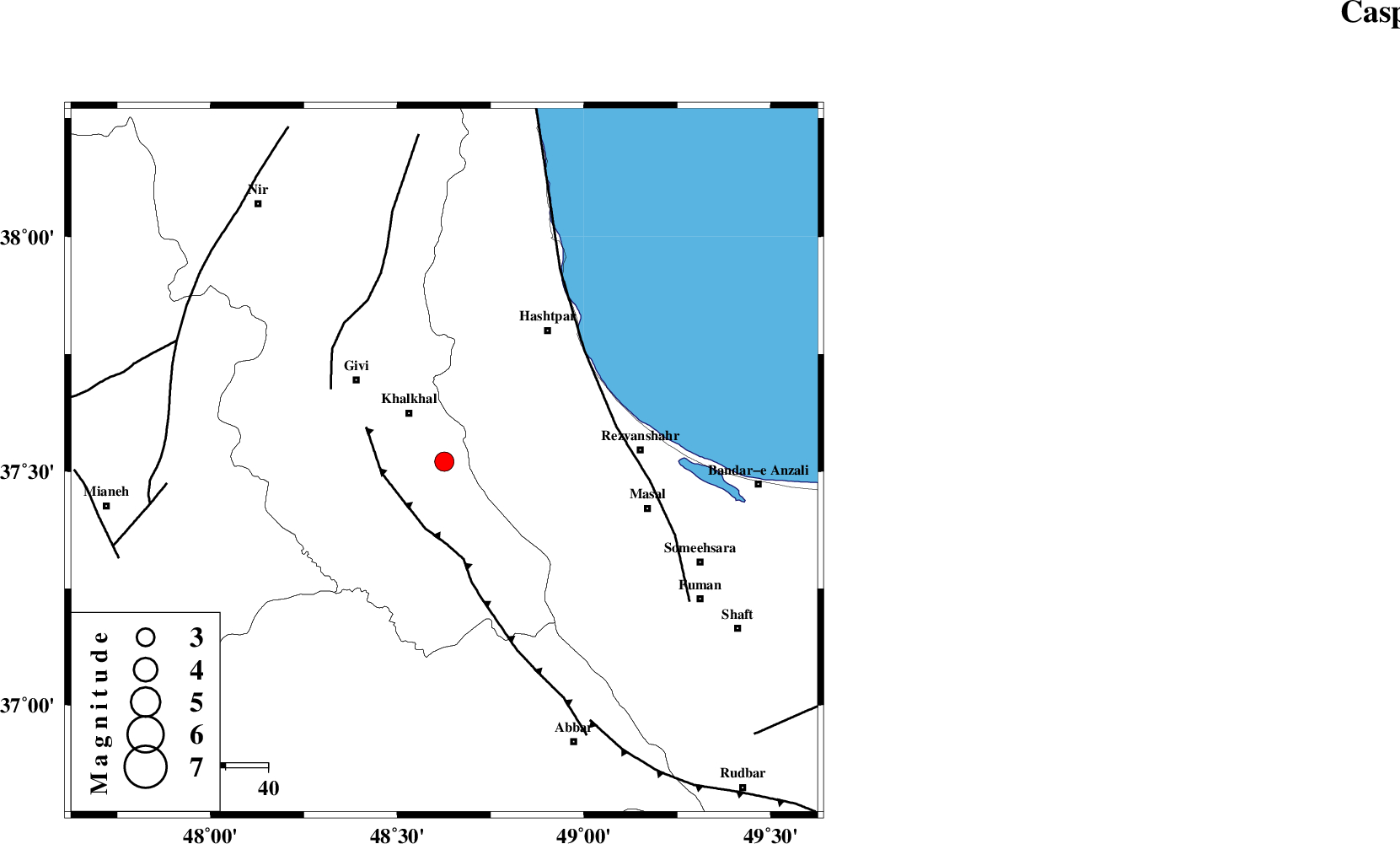

| Location | Lat:37.521 Lon: 48.626 |
| Region | Ardebil Province, 14 km South of Khalkhal |
Nearest Cities |
|
| 11 km of Khojin, Ardebil Province | |
| 14 km South of Khalkhal, Ardebil Province | |
| 17 km North of Kalur, Ardebil Province | |
| 22 km East of Gazaz, Ardebil Province | |
| 23 km West of Ardeh, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 14 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 32 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 41 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >2 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103052 | IIEES | ZNJK | E | 529.6 | 0.3 | 2015-12-24 02:41:56 | 2015-12-26 07:03:00 | n |
| 103053 | IIEES | GRMI | E | 1673.5 | 0.25 | 2015-12-24 02:42:14 | 2015-12-26 07:03:00 | n |
| 103054 | IIEES | GRMI | N | 2199.2 | 0.25 | 2015-12-24 02:42:14 | 2015-12-26 07:03:00 | n |
| 103055 | IIEES | SNGE | N | 42.1 | 0.48 | 2015-12-24 02:42:58 | 2015-12-26 07:03:00 | n |
| 103056 | IIEES | ASAO | N | 23.4 | 0.55 | 2015-12-24 02:43:12 | 2015-12-26 07:03:00 | n |
| 103057 | IIEES | GHVR | N | 16.6 | 0.36 | 2015-12-24 02:43:36 | 2015-12-26 07:03:00 | n |
| 103058 | IIEES | GHVR | E | 40.6 | 0.88 | 2015-12-24 02:43:41 | 2015-12-26 07:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2015-12-24 02:41:44 | -0.03 | y | 94.5 | 177 | |||
| IIEES | ZNJK | N | Sg | E | 2015-12-24 02:41:55 | -0.29 | y | 94.5 | 177 | |||
| IIEES | GRMI | Z | Pg | E | 2015-12-24 02:41:53 | -0.06 | y | 157 | 336 | |||
| IIEES | GRMI | N | Sg | E | 2015-12-24 02:42:12 | -0.08 | y | 157 | 336 | |||
| IIEES | THKV | Z | Pn | E | 2015-12-24 02:42:08 | -0.24 | y | 269 | 131 | |||
| IIEES | CHTH | Z | Pn | E | 2015-12-24 02:42:11 | 0.28 | y | 286 | 128 | |||
| IIEES | SNGE | Z | Pn | E | 2015-12-24 02:42:12 | 0.46 | y | 293 | 203 | |||
| IIEES | ASAO | Z | Pn | E | 2015-12-24 02:42:21 | 1.36 | n | 4 | 353 | 159 | ||
| IIEES | DAMV | Z | Pn | E | 2015-12-24 02:42:25 | 4.12 | n | 4 | 366 | 124 | ||
| IIEES | MAKU | Z | Pn | E | 2015-12-24 02:42:26 | 1.3 | n | 4 | 400 | 302 | ||
| IIEES | GHVR | Z | Pn | E | 2015-12-24 02:42:28 | 2.04 | n | 4 | 412 | 144 | ||
