Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2016-01-09 11:15:22.5 |
| Date & Time (Local) | 1394/10/19 14:45:22.5 |

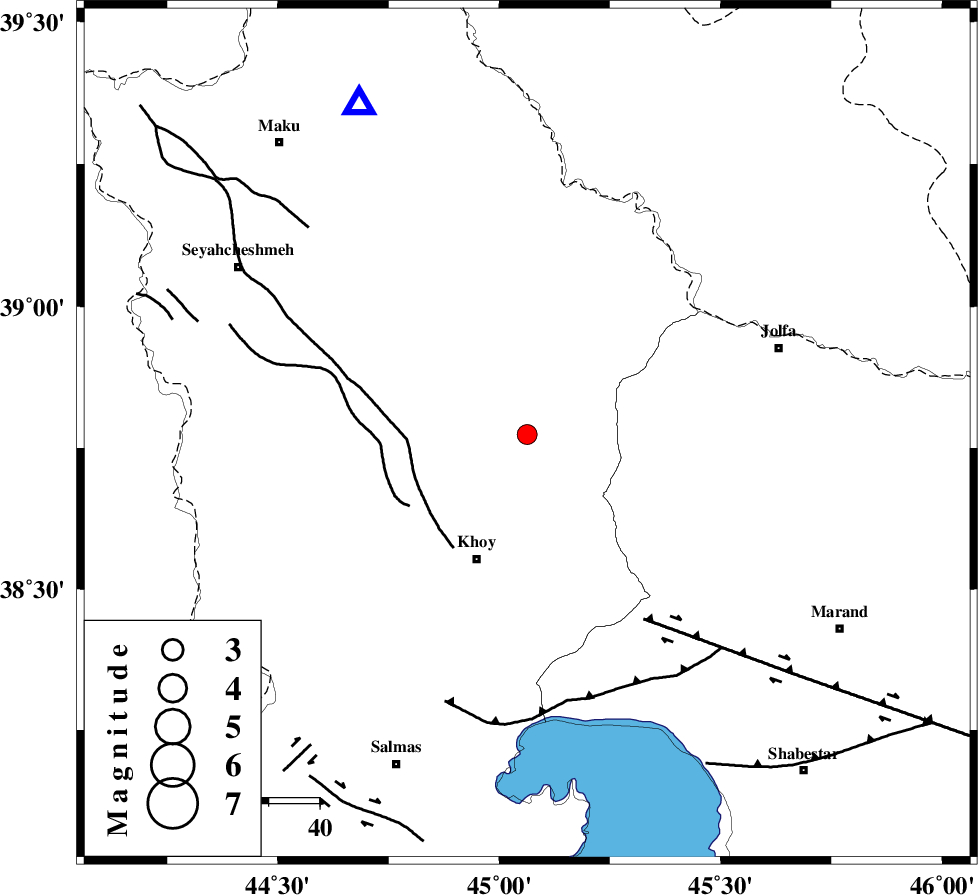

| Location | Lat:38.774 Lon: 45.063 |
| Region | Azarbaijan Gharbi Province, 26 km North-East of Khoy |
Nearest Cities |
|
| 7 km of Churas, Azarbaijan Gharbi Province | |
| 12 km South of Gharreziaodin, Azarbaijan Gharbi Province | |
| 15 km South East of Bastam, Azarbaijan Gharbi Province | |
| 16 km North West of Evaogli, Azarbaijan Gharbi Province | |
| 17 km North East of Dizaj, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 23 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 43 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 53 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 3 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103707 | IIEES | MAKU | N | 617.8 | 0.25 | 2016-01-09 11:15:44 | 2016-01-10 08:25:00 | n |
| 103708 | IIEES | MAKU | E | 563.8 | 0.34 | 2016-01-09 11:15:45 | 2016-01-10 08:25:00 | n |
| 103709 | IIEES | GRMI | E | 82.1 | 0.39 | 2016-01-09 11:16:34 | 2016-01-10 08:25:00 | n |
| 103710 | IIEES | GRMI | N | 67.5 | 0.51 | 2016-01-09 11:16:34 | 2016-01-10 08:25:00 | n |
| 103711 | IIEES | ZNJK | E | 5.5 | 0.5 | 2016-01-09 11:17:22 | 2016-01-10 08:25:00 | n |
| 103712 | IIEES | ZNJK | N | 6.9 | 0.8 | 2016-01-09 11:17:23 | 2016-01-10 08:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2016-01-09 11:15:35 | -0.16 | y | 72.3 | 333 | |||
| IIEES | MAKU | E | Sg | E | 2016-01-09 11:15:44 | 0.02 | y | 72.3 | 333 | |||
| IIEES | GRMI | Z | Pn | E | 2016-01-09 11:16:01 | 0.73 | y | 246 | 88 | |||
| IIEES | GRMI | E | Sg | E | 2016-01-09 11:16:31 | -0.27 | y | 246 | 88 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-01-09 11:16:19 | -0.48 | y | 395 | 125 | |||
| IIEES | ZNJK | N | Sg | E | 2016-01-09 11:17:13 | 0.08 | y | 395 | 125 | |||
| IIEES | SNGE | Z | Pn | E | 2016-01-09 11:16:47 | 20.95 | n | 4 | 456 | 153 | ||
