Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2016-01-22 10:41:54.5 |
| Date & Time (Local) | 1394/11/2 14:11:54.5 |

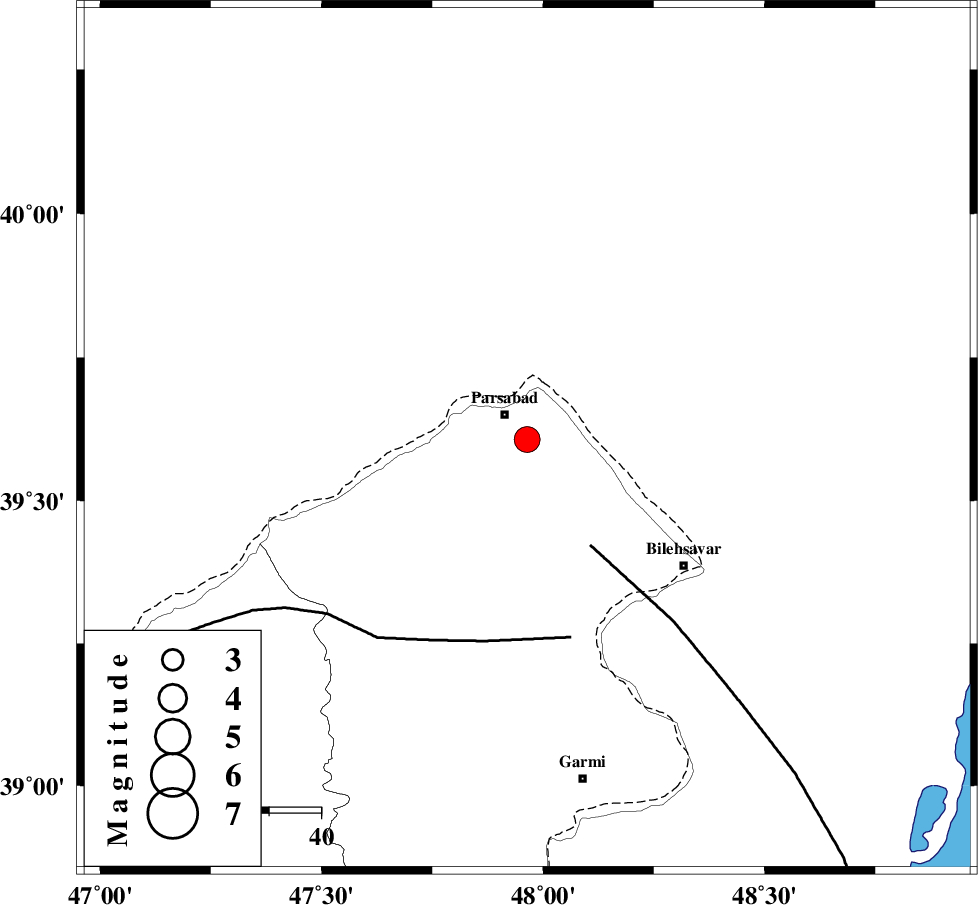

| Location | Lat:39.607 Lon: 47.964 |
| Region | Ardebil Province, 6 km of Pars Abad |
Nearest Cities |
|
| 5 km of Tazeh kand-e gadim, Ardebil Province | |
| 6 km of Pars Abad, Ardebil Province | |
| 8 km of Kushlu, Ardebil Province | |
| 14 km North of Jaefarabad, Ardebil Province | |
| 36 km North West of Gorg tappeh, Ardebil Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 24 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 39 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103862 | IIEES | GRMI | N | 2072.2 | 0.16 | 2016-01-22 10:42:21 | 2016-01-23 07:06:00 | n |
| 103863 | IIEES | GRMI | E | 3261.1 | 0.19 | 2016-01-22 10:42:21 | 2016-01-23 07:06:00 | n |
| 103864 | IIEES | THKV | N | 69.7 | 0.47 | 2016-01-22 10:43:54 | 2016-01-23 07:06:00 | n |
| 103865 | IIEES | THKV | E | 83.6 | 0.51 | 2016-01-22 10:43:56 | 2016-01-23 07:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2016-01-22 10:42:09 | 0.25 | y | 88.7 | 184 | |||
| IIEES | GRMI | N | Sg | E | 2016-01-22 10:42:20 | -0.24 | y | 88.7 | 184 | |||
| IIEES | MAKU | Z | Pn | E | 2016-01-22 10:42:36 | -0.1 | y | 284 | 265 | |||
| IIEES | THKV | Z | Pn | E | 2016-01-22 10:43:01 | -0.73 | y | 483 | 147 | |||
| IIEES | CHTH | Z | Pn | E | 2016-01-22 10:43:04 | 0.63 | y | 496 | 145 | |||
| IIEES | CHTH | N | Sn | 2016-01-22 10:43:53 | -0.02 | y | 496 | 145 | ||||
| IIEES | SNGE | Z | Pn | E | 2016-01-22 10:43:02 | -1.63 | n | 4 | 504 | 186 | ||
| IIEES | DAMV | Z | Pn | E | 2016-01-22 10:43:13 | 1.43 | n | 4 | 565 | 140 | ||
| IIEES | ASAO | Z | Pn | E | 2016-01-22 10:43:15 | 0.75 | y | 590 | 161 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-01-22 10:43:25 | -0.05 | y | 675 | 164 | |||
| IIEES | MRVT | Z | Pn | E | 2016-01-22 10:43:33 | -0.42 | y | 739 | 104 | |||
| IIEES | BJRD | Z | Pn | E | 2016-01-22 10:43:47 | -0.09 | y | 848 | 101 | |||
