Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2016-02-03 02:44:41.3 |
| Date & Time (Local) | 1394/11/14 06:14:41.3 |

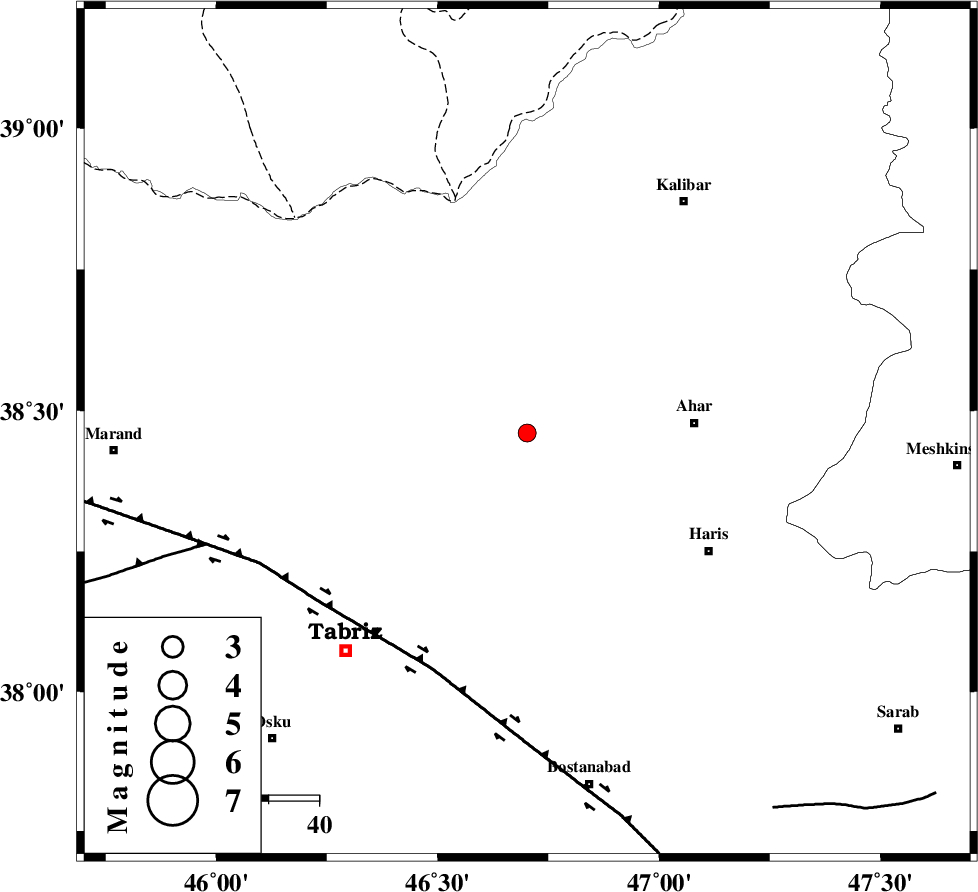

| Location | Lat:38.46 Lon: 46.702 |
| Region | Azarbaijan Sharghi Province, 33 km -West of Ahar |
Nearest Cities |
|
| 7 km of Varzagan, Azarbaijan Sharghi Province | |
| 16 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 20 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 89 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 104184 | IIEES | GRMI | E | 139.3 | 0.19 | 2016-02-03 02:45:16 | 2016-02-03 07:05:00 | n |
| 104185 | IIEES | GRMI | N | 173.3 | 0.19 | 2016-02-03 02:45:18 | 2016-02-03 07:05:00 | n |
| 104186 | IIEES | MAKU | E | 33.6 | 0.37 | 2016-02-03 02:45:40 | 2016-02-03 07:05:00 | n |
| 104187 | IIEES | MAKU | N | 61.5 | 0.16 | 2016-02-03 02:45:40 | 2016-02-03 07:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2016-02-03 02:45:00 | -0.08 | y | 111 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2016-02-03 02:45:13 | -0.04 | y | 111 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2016-02-03 02:45:14 | -0.2 | y | 201 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2016-02-03 02:45:38 | 0.22 | y | 201 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-02-03 02:45:22 | 0.49 | y | 265 | 138 | |||
| IIEES | ZNJK | N | Sg | E | 2016-02-03 02:45:56 | 0.1 | y | 265 | 138 | |||
| IIEES | SNGE | Z | Pn | E | 2016-02-03 02:45:35 | -0.58 | y | 378 | 171 | |||
