Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-03-13 19:49:22.6 |
| Date & Time (Local) | 1394/12/23 23:19:22.6 |

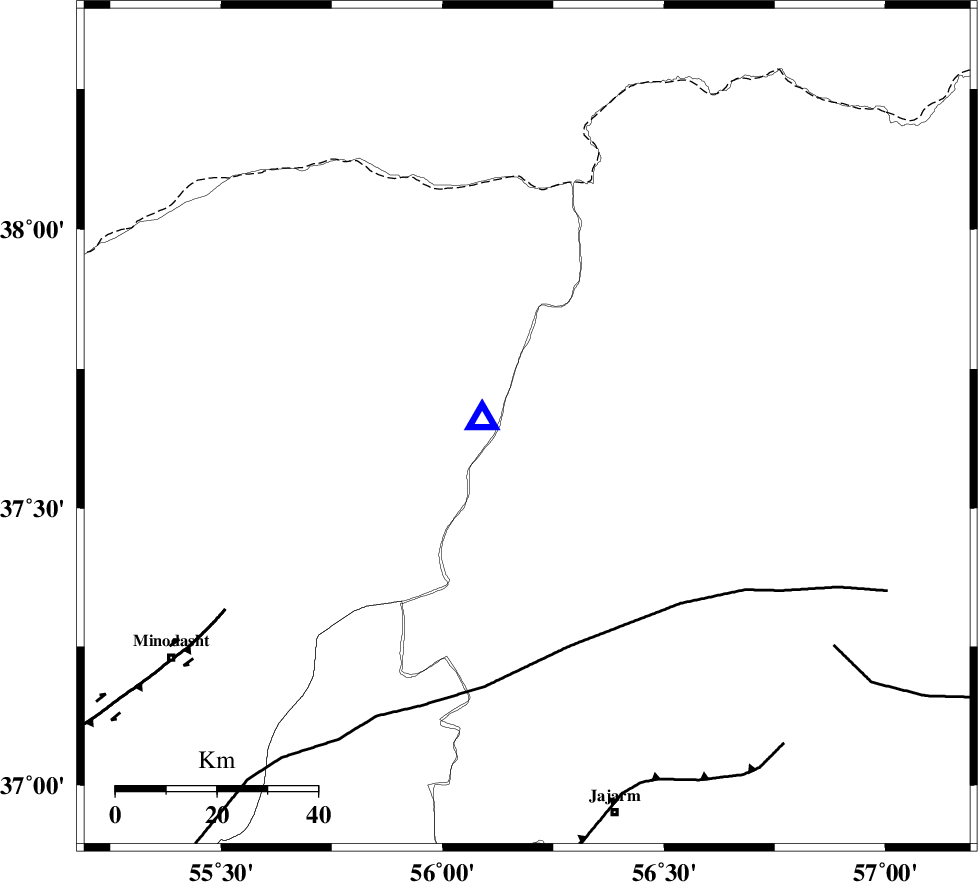

| Location | Lat:37.644 Lon: 56.191 |
| Region | Khorasan(north) Province, 67 km -West of Ashkhaneh |
Nearest Cities |
|
| 16 km West of Garmab, Khorasan(north) Province | |
| 22 km North East of Golidagh, Golestan Province | |
| 31 km South of Qazanqayeh, Golestan Province | |
| 35 km South East of Moravehtappeh, Golestan Province | |
| 52 km North East of Pashikmar, Golestan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 44 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 75 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 75 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >8.1 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 104988 | IIEES | MRVT | N | 12290.4 | 0.24 | 2016-03-13 19:49:26 | 2016-03-14 08:37:00 | n |
| 104989 | IIEES | MRVT | E | 19021.2 | 0.16 | 2016-03-13 19:49:26 | 2016-03-14 08:37:00 | n |
| 104990 | IIEES | DAMV | N | 10.2 | 0.47 | 2016-03-13 19:51:39 | 2016-03-14 08:37:00 | n |
| 104991 | IIEES | DAMV | E | 11.9 | 0.47 | 2016-03-13 19:51:44 | 2016-03-14 08:37:00 | n |
| 104992 | IIEES | TABS | N | 3.9 | 0.46 | 2016-03-13 19:51:19 | 2016-03-14 08:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-03-13 19:49:24 | -0.06 | y | 9.18 | 281 | |||
| IIEES | MRVT | N | Sg | E | 2016-03-13 19:49:26 | 0.08 | y | 9.18 | 281 | |||
| IIEES | BJRD | Z | Pg | E | 2016-03-13 19:49:40 | -0.49 | y | 108 | 86 | |||
| IIEES | BJRD | E | Sg | E | 2016-03-13 19:49:55 | 0.39 | y | 108 | 86 | |||
| IIEES | DAMV | Z | Pn | E | 2016-03-13 19:50:25 | -0.42 | n | 4 | 439 | 241 | ||
| IIEES | TABS | Z | Pn | E | 2016-03-13 19:50:26 | -0.3 | y | 451 | 169 | |||
| IIEES | SHRT | Z | Pn | E | 2016-03-13 19:50:37 | -5.92 | n | 4 | 578 | 139 | ||
| IIEES | YZKH | Z | Pn | E | 2016-03-13 19:50:45 | -0.06 | y | 601 | 195 | |||
| IIEES | ASAO | Z | Pn | E | 2016-03-13 19:50:53 | 0.59 | y | 653 | 240 | |||
| IIEES | BSRN | Z | Pn | E | 2016-03-13 19:50:56 | 0.27 | y | 685 | 156 | |||
| IIEES | GRMI | Z | Pn | E | 2016-03-13 19:51:02 | -0.22 | y | 738 | 283 | |||
