Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2016-04-01 06:35:13.0 |
| Date & Time (Local) | 1395/1/13 11:05:13.0 |

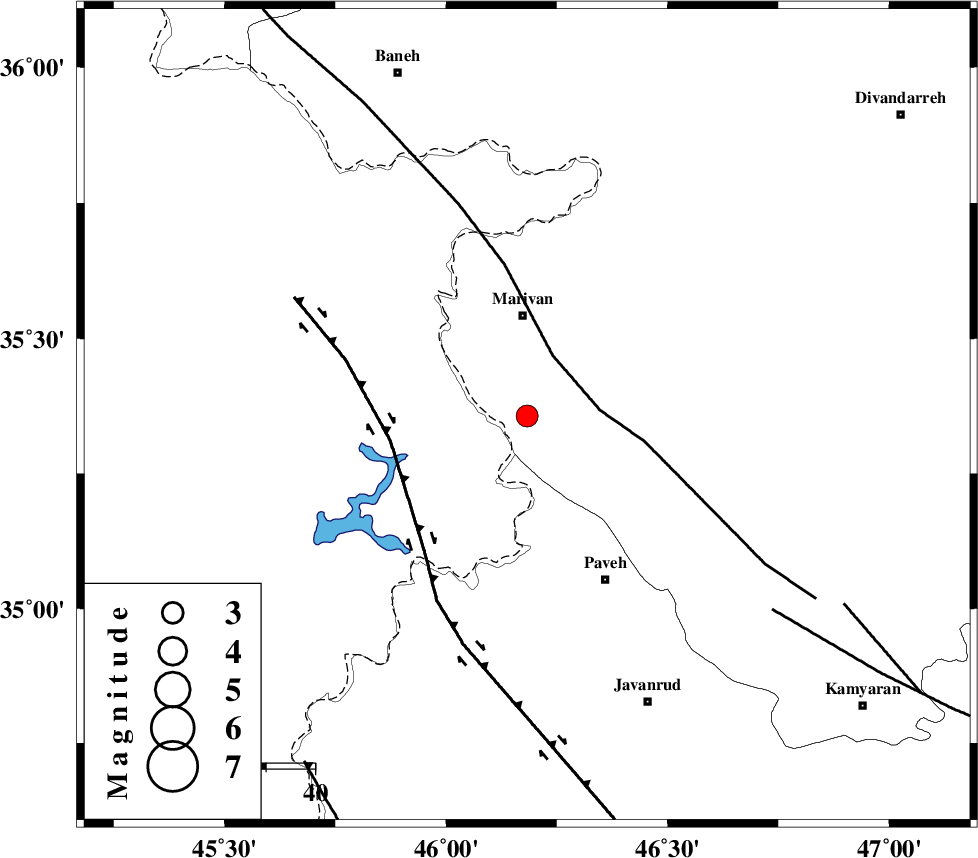

| Location | Lat:35.357 Lon: 46.183 |
| Region | Kurdistan Province, 21 km South of Marivan |
Nearest Cities |
|
| 7 km North of Qaleh ji, Kurdistan Province | |
| 11 km South of Kanidinar, Kurdistan Province | |
| 13 km North of Oramantakht, Kurdistan Province | |
| 18 km North of Dezavard, Kermanshah Province | |
| 19 km South East of Ney, Kurdistan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 13 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 28 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 64 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 9.9 km |
| Error in Depth | 13.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 105115 | IIEES | ZNJK | N | 44.3 | 0.64 | 2016-04-01 06:36:37 | 2016-04-02 10:33:00 | n |
| 105116 | IIEES | ASAO | E | 34.8 | 0.65 | 2016-04-01 06:37:03 | 2016-04-02 10:33:00 | n |
| 105117 | IIEES | ASAO | N | 40.2 | 0.6 | 2016-04-01 06:37:05 | 2016-04-02 10:33:00 | n |
| 105118 | IIEES | KHMZ | E | 30.5 | 0.73 | 2016-04-01 06:37:16 | 2016-04-02 10:33:00 | n |
| 105119 | IIEES | KHMZ | N | 43.8 | 0.73 | 2016-04-01 06:37:17 | 2016-04-02 10:33:00 | n |
| 105120 | IIEES | GHVR | E | 15.8 | 0.69 | 2016-04-01 06:37:44 | 2016-04-02 10:33:00 | n |
| 105121 | IIEES | GHVR | N | 15.2 | 0.46 | 2016-04-01 06:38:05 | 2016-04-02 10:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pn | E | 2016-04-01 06:35:54 | -0.01 | y | 269 | 56 | |||
| IIEES | ZNJK | N | Sg | E | 2016-04-01 06:36:28 | 0.03 | y | 269 | 56 | |||
| IIEES | ASAO | Z | Pn | E | 2016-04-01 06:36:06 | 0.12 | y | 362 | 103 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-04-01 06:36:09 | -0.08 | y | 391 | 116 | |||
| IIEES | GRMI | Z | Pn | E | 2016-04-01 06:36:12 | -0.04 | y | 412 | 21 | |||
| IIEES | GHVR | Z | Pn | E | 2016-04-01 06:36:19 | 0.1 | y | 473 | 100 | |||
| IIEES | GHVR | E | Sg | E | 2016-04-01 06:37:24 | -0.05 | y | 473 | 100 | |||
| IIEES | DAMV | Z | Pn | E | 2016-04-01 06:36:26 | -0.1 | y | 526 | 85 | |||
| IIEES | YZKH | Z | Pn | E | 2016-04-01 06:37:03 | -2.37 | n | 4 | 844 | 111 | ||
