Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2016-04-09 20:14:35.2 |
| Date & Time (Local) | 1395/1/22 00:44:35.2 |

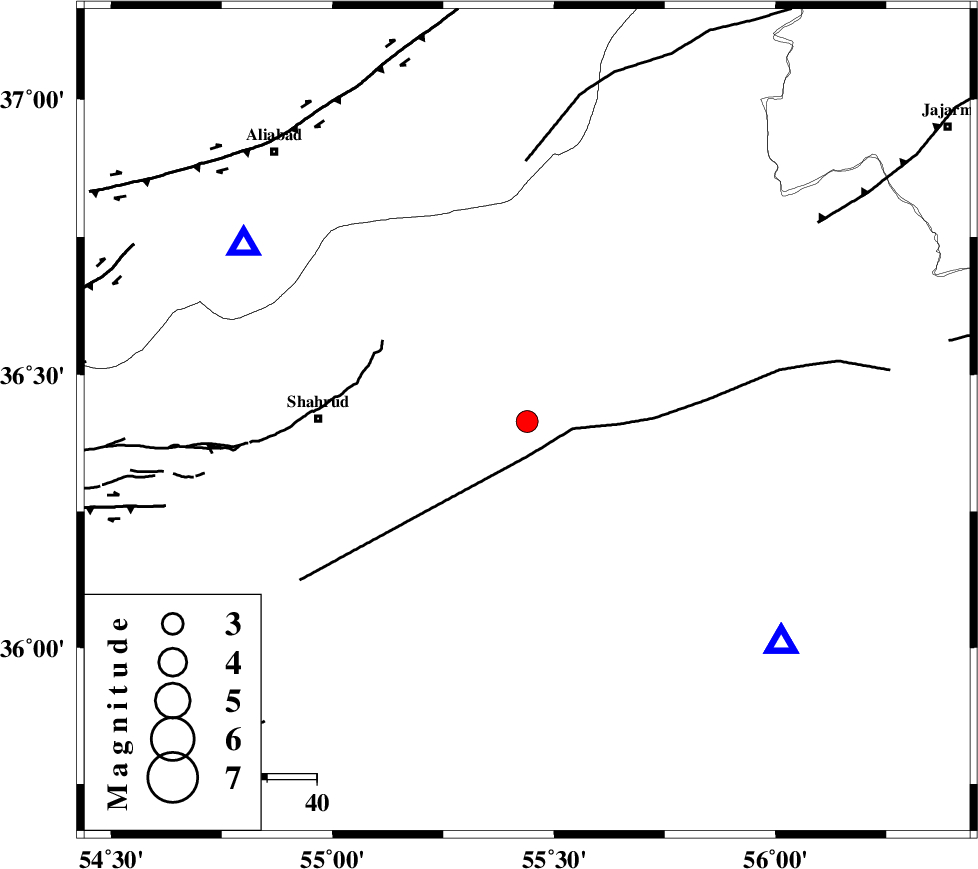

| Location | Lat:36.414 Lon: 55.439 |
| Region | Semnan Province, 42 km -East of Shahrud |
Nearest Cities |
|
| 19 km North West of Miamay, Semnan Province | |
| 30 km South East of Kalateh khanj, Semnan Province | |
| 39 km South East of Qaleh-ye nokharqan, Semnan Province | |
| 39 km North East of Ruyan, Semnan Province | |
| 40 km East of Bastam, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 7 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 45 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 53 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 105275 | IIEES | MRVT | E | 453 | 0.4 | 2016-04-09 20:15:24 | 2016-04-10 06:29:00 | n |
| 105276 | IIEES | MRVT | N | 356.8 | 0.29 | 2016-04-09 20:15:24 | 2016-04-10 06:29:00 | n |
| 105277 | IIEES | BJRD | E | 61.9 | 0.42 | 2016-04-09 20:15:41 | 2016-04-10 06:29:00 | n |
| 105278 | IIEES | BJRD | N | 57.3 | 0.38 | 2016-04-09 20:15:48 | 2016-04-10 06:29:00 | n |
| 105279 | IIEES | DAMV | E | 45.1 | 0.45 | 2016-04-09 20:16:21 | 2016-04-10 06:29:00 | n |
| 105280 | IIEES | DAMV | N | 34.2 | 0.51 | 2016-04-09 20:16:24 | 2016-04-10 06:29:00 | n |
| 105281 | IIEES | TABS | N | 57.6 | 0.63 | 2016-04-09 20:16:23 | 2016-04-10 06:29:00 | n |
| 105282 | IIEES | TABS | E | 35.8 | 0.69 | 2016-04-09 20:16:29 | 2016-04-10 06:29:00 | n |
| 105283 | IIEES | THKV | N | 35.2 | 0.36 | 2016-04-09 20:16:42 | 2016-04-10 06:29:00 | n |
| 105284 | IIEES | THKV | E | 33.6 | 0.6 | 2016-04-09 20:16:42 | 2016-04-10 06:29:00 | n |
| 105285 | IIEES | GHVR | E | 24.4 | 0.43 | 2016-04-09 20:16:47 | 2016-04-10 06:29:00 | n |
| 105286 | IIEES | GHVR | N | 20.9 | 0.55 | 2016-04-09 20:16:57 | 2016-04-10 06:29:00 | n |
| 105287 | IIEES | YZKH | E | 16.7 | 0.79 | 2016-04-09 20:16:49 | 2016-04-10 06:29:00 | n |
| 105288 | IIEES | YZKH | N | 13.1 | 0.46 | 2016-04-09 20:16:51 | 2016-04-10 06:29:00 | n |
| 105289 | IIEES | BSRN | N | 5.8 | 0.82 | 2016-04-09 20:17:43 | 2016-04-10 06:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-04-09 20:14:47 | -0.06 | y | 68.5 | 131 | |||
| IIEES | MRVT | Z | Pg | E | 2016-04-09 20:15:00 | 0.31 | y | 150 | 23 | |||
| IIEES | BJRD | Z | Pn | E | 2016-04-09 20:15:11 | 0.42 | y | 226 | 50 | |||
| IIEES | BJRD | E | Sg | E | 2016-04-09 20:15:38 | -0.33 | y | 226 | 50 | |||
| IIEES | DAMV | Z | Pn | E | 2016-04-09 20:15:23 | 0.29 | y | 324 | 255 | |||
| IIEES | TABS | Z | Pn | E | 2016-04-09 20:15:26 | 0.58 | y | 343 | 153 | |||
| IIEES | CHTH | Z | Pn | E | 2016-04-09 20:15:31 | 0.18 | y | 392 | 263 | |||
| IIEES | THKV | Z | Pn | E | 2016-04-09 20:15:34 | -0.18 | y | 414 | 264 | |||
| IIEES | GHVR | Z | Pn | E | 2016-04-09 20:15:36 | -0.27 | y | 437 | 242 | |||
| IIEES | YZKH | Z | Pn | E | 2016-04-09 20:15:38 | -0.45 | y | 453 | 190 | |||
| IIEES | ASAO | Z | Pn | E | 2016-04-09 20:15:49 | -0.09 | y | 533 | 249 | |||
| IIEES | SHRT | Z | Pn | E | 2016-04-09 20:15:49 | -0.17 | y | 539 | 123 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-04-09 20:15:55 | 0.28 | y | 581 | 241 | |||
| IIEES | BSRN | Z | Pn | E | 2016-04-09 20:15:57 | -0.36 | y | 599 | 144 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-04-09 20:15:58 | 0.51 | y | 605 | 275 | |||
| IIEES | GRMI | Z | Pn | E | 2016-04-09 20:16:10 | -1.52 | y | 717 | 294 | |||
