Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-04-14 10:18:53.0 |
| Date & Time (Local) | 1395/1/26 14:48:53.0 |

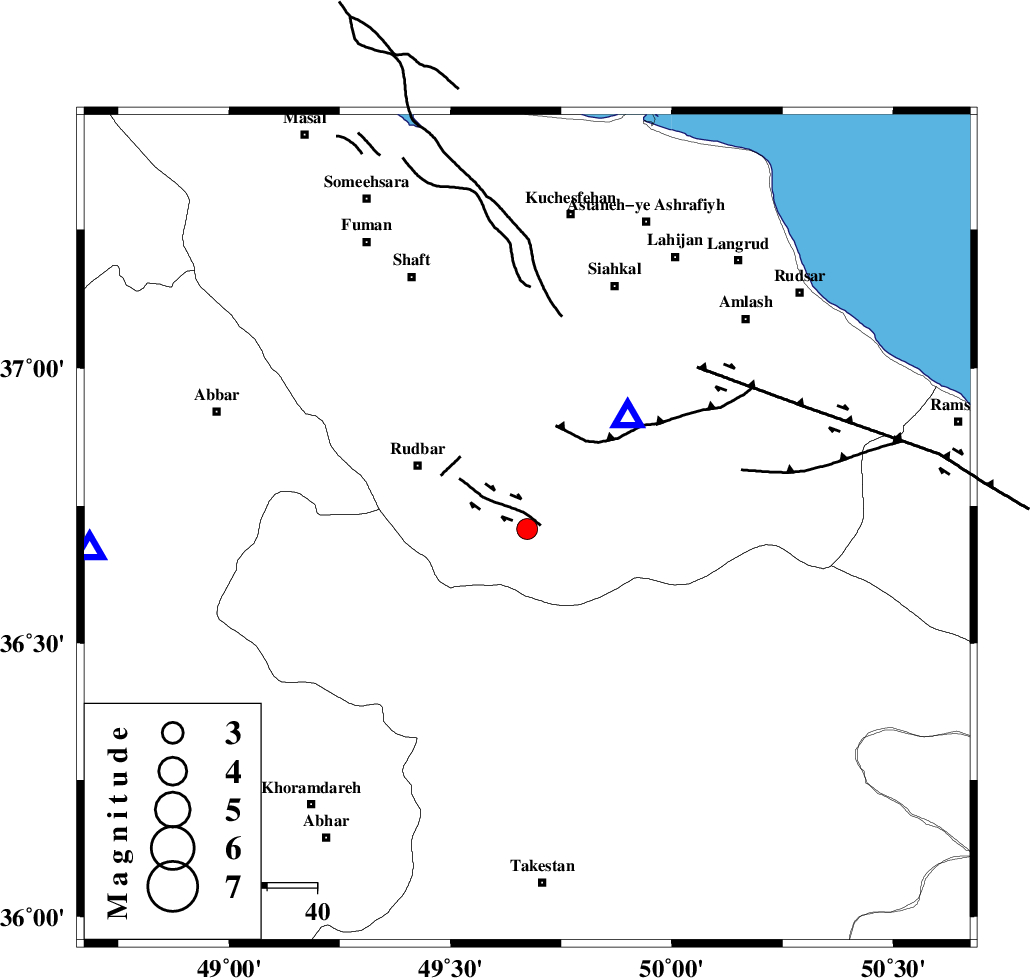

| Location | Lat:36.708 Lon: 49.673 |
| Region | Gilan Province, 25 km South-East of Rudbar |
Nearest Cities |
|
| 10 km North West of Jirhandeh, Gilan Province | |
| 17 km South of Dashtvil, Gilan Province | |
| 17 km North East of Loshan, Gilan Province | |
| 19 km North East of Kuhgir-e sofla, Ghazvin Province | |
| 24 km South East of Rostamabad, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 4 km | |
| ALAMUTRUD_F (Length: 140 km) , Distance to epicenter: 15 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 32 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 105462 | IIEES | THKV | E | 271.8 | 0.21 | 2016-04-14 10:19:30 | 2016-04-16 06:22:00 | n |
| 105463 | IIEES | DAMV | E | 83.4 | 0.41 | 2016-04-14 10:20:01 | 2016-04-16 06:22:00 | n |
| 105464 | IIEES | DAMV | N | 82.9 | 0.33 | 2016-04-14 10:20:02 | 2016-04-16 06:22:00 | n |
| 105465 | IIEES | GRMI | N | 33.7 | 0.63 | 2016-04-14 10:20:14 | 2016-04-16 06:22:00 | n |
| 105466 | IIEES | GRMI | E | 24.6 | 0.15 | 2016-04-14 10:20:14 | 2016-04-16 06:22:00 | n |
| 105467 | IIEES | GHVR | E | 34.7 | 0.19 | 2016-04-14 10:20:20 | 2016-04-16 06:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2016-04-14 10:19:08 | -0.18 | y | 88.4 | 268 | |||
| IIEES | ZNJK | N | Sg | E | 2016-04-14 10:19:18 | -0.43 | y | 88.4 | 268 | |||
| IIEES | THKV | Z | Pg | E | 2016-04-14 10:19:12 | -3.83 | n | 4 | 139 | 129 | ||
| IIEES | CHTH | Z | Pg | E | 2016-04-14 10:19:18 | -0.5 | y | 158 | 124 | |||
| IIEES | DAMV | Z | Pn | E | 2016-04-14 10:19:31 | 0.96 | y | 239 | 119 | |||
| IIEES | DAMV | N | Sg | E | 2016-04-14 10:20:00 | -0.36 | y | 239 | 119 | |||
| IIEES | ASAO | Z | Pn | E | 2016-04-14 10:19:31 | 0.43 | y | 242 | 172 | |||
| IIEES | SNGE | Z | Pn | E | 2016-04-14 10:19:35 | 0.54 | y | 276 | 230 | |||
| IIEES | GRMI | Z | Pn | E | 2016-04-14 10:19:35 | -0.11 | y | 281 | 327 | |||
| IIEES | GHVR | Z | Pn | E | 2016-04-14 10:19:35 | -0.49 | y | 285 | 150 | |||
| IIEES | GHVR | E | Sg | E | 2016-04-14 10:20:12 | -0.3 | y | 285 | 150 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-04-14 10:19:42 | 0.47 | y | 330 | 175 | |||
