Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2016-05-23 06:04:57.7 |
| Date & Time (Local) | 1395/3/3 10:34:57.7 |

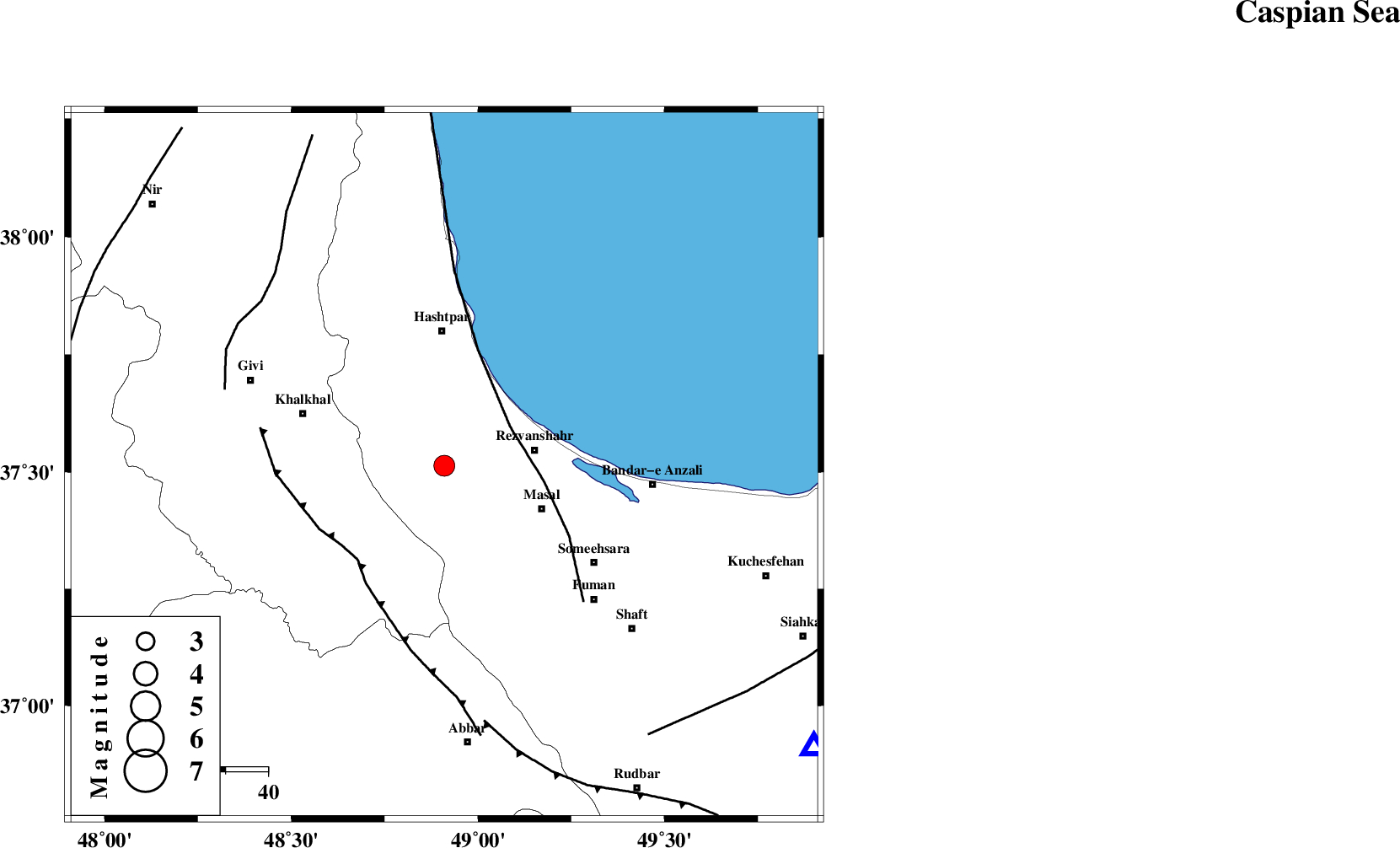

| Location | Lat:37.513 Lon: 48.91 |
| Region | Gilan Province, 22 km -West of Rezvanshahr |
Nearest Cities |
|
| 5 km of Ardeh, Gilan Province | |
| 16 km West of Parrehsar, Gilan Province | |
| 18 km North West of Shangavar, Gilan Province | |
| 18 km South West of Void, Gilan Province | |
| 22 km West of Rezvanshahr, Gilan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 18 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 30 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 55 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 8.2 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106238 | IIEES | ZNJK | E | 944.5 | 0.14 | 2016-05-23 06:05:26 | 2016-05-23 06:34:00 | n |
| 106239 | IIEES | GRMI | E | 577.3 | 0.33 | 2016-05-23 06:05:48 | 2016-05-23 06:34:00 | n |
| 106240 | IIEES | GRMI | N | 820.3 | 0.34 | 2016-05-23 06:05:48 | 2016-05-23 06:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2016-05-23 06:05:14 | 0.01 | y | 95.6 | 192 | |||
| IIEES | ZNJK | E | Sg | E | 2016-05-23 06:05:25 | -0.23 | y | 95.6 | 192 | |||
| IIEES | GRMI | Z | Pg | E | 2016-05-23 06:05:25 | -0.13 | y | 169 | 329 | |||
| IIEES | CHTH | Z | Pn | E | 2016-05-23 06:05:37 | -0.65 | y | 266 | 131 | |||
| IIEES | SNGE | Z | Pn | E | 2016-05-23 06:05:43 | 0.23 | y | 303 | 208 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-23 06:05:48 | 0.14 | y | 344 | 163 | |||
| IIEES | GHVR | Z | Pn | E | 2016-05-23 06:05:54 | -0.09 | y | 397 | 147 | |||
| IIEES | MAKU | Z | Pn | E | 2016-05-23 06:06:07 | 9.67 | n | 4 | 422 | 300 | ||
| IIEES | KHMZ | Z | Pn | E | 2016-05-23 06:05:59 | 0.66 | y | 429 | 167 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-23 06:06:24 | -0.02 | y | 632 | 145 | |||
| IIEES | MRVT | Z | Pn | E | 2016-05-23 06:06:20 | -3.23 | n | 4 | 634 | 86 | ||
| IIEES | SHRO | Z | Pn | E | 2016-05-23 06:06:27 | 0.5 | y | 656 | 103 | |||
