Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2016-05-24 17:52:00.9 |
| Date & Time (Local) | 1395/3/4 22:22:00.9 |

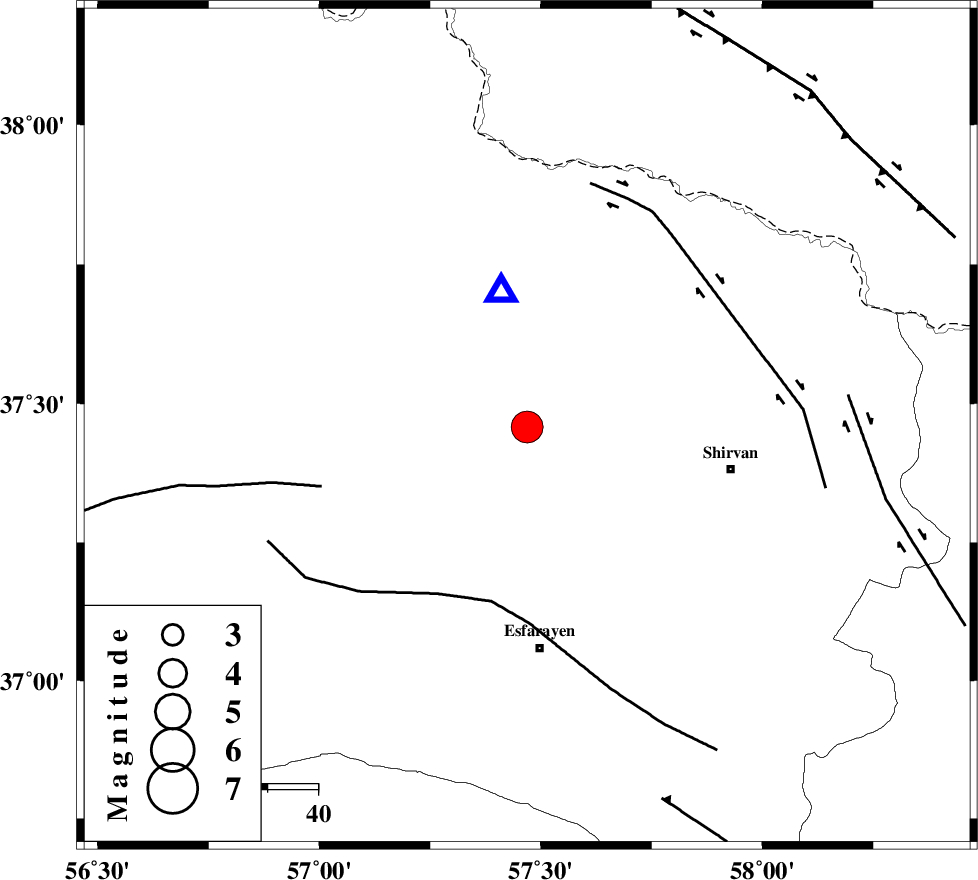

| Location | Lat:37.458 Lon: 57.469 |
| Region | Khorasan(north) Province, 12 km -East of Bojnurd |
Nearest Cities |
|
| 7 km of Hesar-egarmkhanh, Khorasan(north) Province | |
| 12 km East of Void, Khorasan(north) Province | |
| 12 km East of Bojnurd, Khorasan(north) Province | |
| 28 km North West of Zavarom, Khorasan(north) Province | |
| 34 km South West of Tukur, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 36 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 43 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 47 km | |
| Number of Phases | 15 |
| RMS | 0.8 |
| Number of Stations | 14 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 9 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106297 | IIEES | BJRD | E | 149000 | 0.62 | 2016-05-24 17:52:11 | 2016-05-25 05:23:00 | n |
| 106298 | IIEES | BJRD | N | 83893.6 | 0.58 | 2016-05-24 17:52:12 | 2016-05-25 05:23:00 | n |
| 106299 | IIEES | MRVT | E | 9059.9 | 0.32 | 2016-05-24 17:52:43 | 2016-05-25 05:23:00 | n |
| 106300 | IIEES | MRVT | N | 10163.2 | 0.28 | 2016-05-24 17:52:44 | 2016-05-25 05:23:00 | n |
| 106301 | IIEES | SHRO | N | 2168.8 | 0.56 | 2016-05-24 17:53:01 | 2016-05-25 05:23:00 | n |
| 106302 | IIEES | SHRO | E | 2548.5 | 0.7 | 2016-05-24 17:53:02 | 2016-05-25 05:23:00 | n |
| 106303 | IIEES | TABS | N | 901.8 | 0.83 | 2016-05-24 17:54:11 | 2016-05-25 05:23:00 | n |
| 106304 | IIEES | SHRT | N | 291.5 | 0.68 | 2016-05-24 17:54:37 | 2016-05-25 05:23:00 | n |
| 106305 | IIEES | SHRT | E | 214 | 0.39 | 2016-05-24 17:54:42 | 2016-05-25 05:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2016-05-24 17:52:06 | -0.1 | y | 27.4 | 349 | |||
| IIEES | MRVT | Z | Pg | E | 2016-05-24 17:52:21 | -0.19 | y | 124 | 281 | |||
| IIEES | SHRO | Z | Pn | E | 2016-05-24 17:52:34 | 0.21 | y | 207 | 219 | |||
| IIEES | SHRO | N | Sg | E | 2016-05-24 17:52:59 | -0.39 | y | 207 | 219 | |||
| IIEES | TABS | Z | Pn | E | 2016-05-24 17:53:01 | 0.01 | y | 424 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2016-05-24 17:53:09 | -0.11 | y | 494 | 148 | |||
| IIEES | CHTH | Z | Pn | E | 2016-05-24 17:53:24 | 2.02 | y | 592 | 255 | |||
| IIEES | YZKH | Z | Pn | E | 2016-05-24 17:53:25 | -0.2 | y | 620 | 206 | |||
| IIEES | BSRN | Z | Pn | E | 2016-05-24 17:53:26 | -0.11 | y | 628 | 166 | |||
| IIEES | GHVR | Z | Pn | E | 2016-05-24 17:53:29 | 0 | y | 651 | 241 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-24 17:53:31 | -0.21 | y | 669 | 221 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-24 17:53:42 | 0.86 | y | 744 | 247 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-05-24 17:53:46 | 0.05 | y | 786 | 266 | |||
| IIEES | KRBR | Z | Pn | E | 2016-05-24 17:53:52 | 0.08 | y | 832 | 185 | |||
| IIEES | GRMI | Z | Pn | E | 2016-05-24 17:53:52 | -2.34 | y | 852 | 283 | |||
