Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2016-05-27 08:00:17.4 |
| Date & Time (Local) | 1395/3/7 12:30:17.4 |

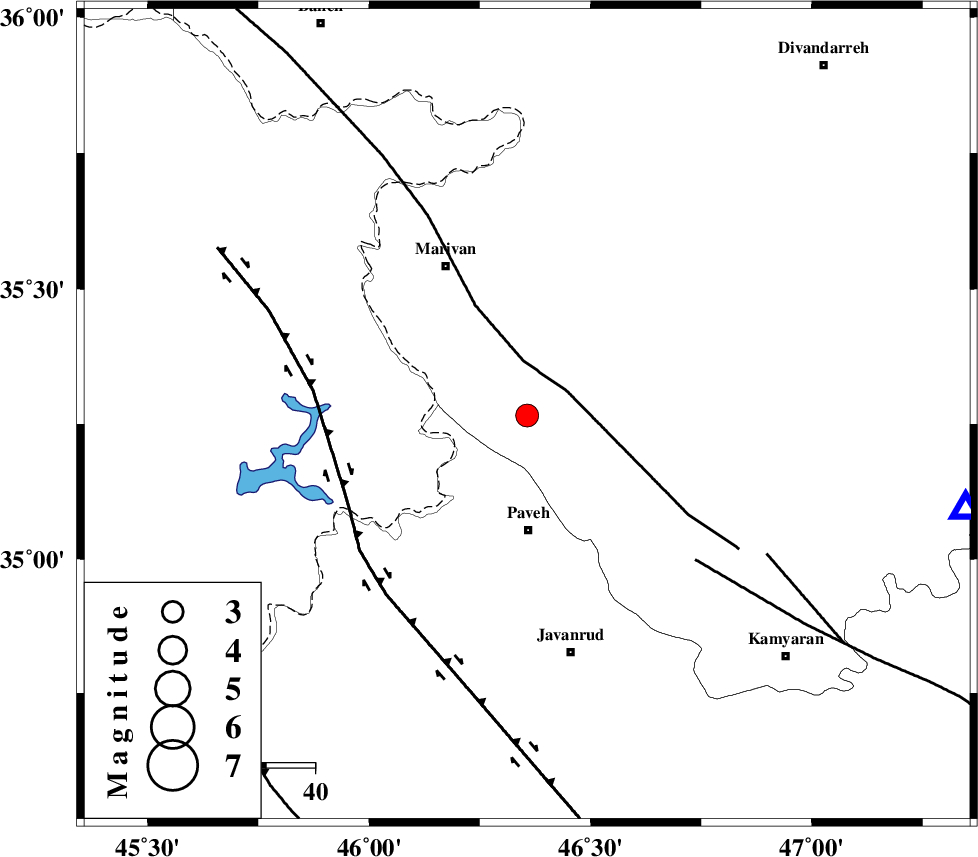

| Location | Lat:35.266 Lon: 46.357 |
| Region | Kurdistan Province, 24 km North of Paveh |
Nearest Cities |
|
| 5 km of Razab, Kurdistan Province | |
| 8 km North of Oramantakht, Kurdistan Province | |
| 12 km North East of Dezavard, Kermanshah Province | |
| 13 km of Qaleh ji, Kurdistan Province | |
| 15 km West of Nagol, Kurdistan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 10 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 41 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 45 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106362 | IIEES | ASAO | E | 47.2 | 0.64 | 2016-05-27 08:02:08 | 2016-05-28 06:35:00 | n |
| 106363 | IIEES | KHMZ | E | 46.6 | 0.48 | 2016-05-27 08:02:08 | 2016-05-28 06:35:00 | n |
| 106364 | IIEES | GHVR | E | 25.2 | 0.66 | 2016-05-27 08:02:45 | 2016-05-28 06:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pn | E | 2016-05-27 08:00:57 | 0.05 | y | 262 | 53 | |||
| IIEES | ZNJK | N | Sg | E | 2016-05-27 08:01:31 | -0.04 | y | 262 | 53 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-27 08:01:07 | -0.05 | y | 345 | 102 | |||
| IIEES | KHMZ | Z | P | E | 2016-05-27 08:01:11 | -0.08 | y | 372 | 116 | |||
| IIEES | KHMZ | E | Sg | E | 2016-05-27 08:02:01 | 0.08 | y | 372 | 116 | |||
| IIEES | GRMI | Z | Pn | E | 2016-05-27 08:01:16 | 0.06 | y | 416 | 19 | |||
| IIEES | CHTH | Z | Pn | E | 2016-05-27 08:01:25 | 6.45 | n | 4 | 438 | 79 | ||
| IIEES | GHVR | Z | Pn | E | 2016-05-27 08:01:31 | 10.11 | n | 4 | 455 | 100 | ||
| IIEES | NASN | Z | Pn | E | 2016-05-27 08:01:46 | -0.02 | y | 655 | 113 | |||
