Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2016-05-29 20:19:25.6 |
| Date & Time (Local) | 1395/3/10 00:49:25.6 |

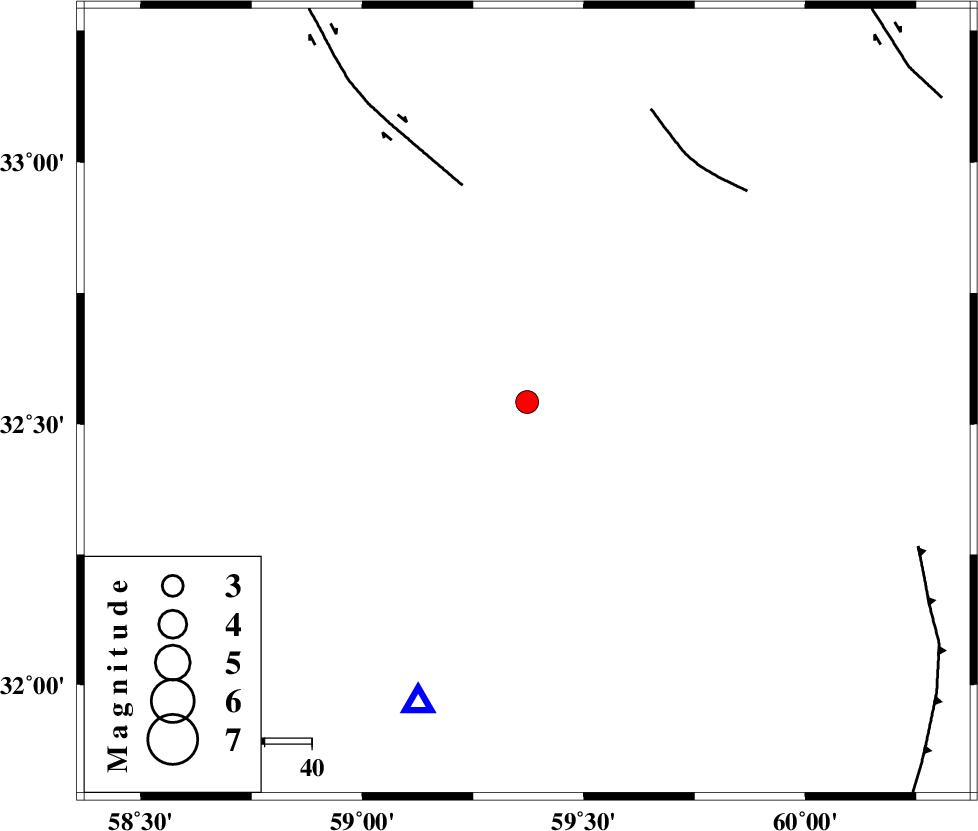

| Location | Lat:32.542 Lon: 59.372 |
| Region | Khorasan(south) Province, 40 km -West of Sarbisheh |
Nearest Cities |
|
| 7 km of Gaz, Khorasan(south) Province | |
| 9 km North of Mokhtaran, Khorasan(south) Province | |
| 10 km North West of Kalateh soleyman, Khorasan(south) Province | |
| 26 km South East of Gol, Khorasan(south) Province | |
| 27 km South West of Mud, Khorasan(south) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 48 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 62 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 88 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106405 | IIEES | SHRT | N | 174.4 | 0.51 | 2016-05-29 20:20:13 | 2016-05-30 05:27:00 | n |
| 106406 | IIEES | SHRT | E | 192.1 | 0.44 | 2016-05-29 20:20:14 | 2016-05-30 05:27:00 | n |
| 106407 | IIEES | TABS | N | 103.9 | 0.55 | 2016-05-29 20:20:40 | 2016-05-30 05:27:00 | n |
| 106408 | IIEES | KRBR | E | 65.8 | 0.54 | 2016-05-29 20:21:22 | 2016-05-30 05:27:00 | n |
| 106409 | IIEES | KRBR | N | 65.7 | 0.47 | 2016-05-29 20:21:26 | 2016-05-30 05:27:00 | n |
| 106410 | IIEES | YZKH | N | 39.4 | 0.58 | 2016-05-29 20:21:37 | 2016-05-30 05:27:00 | n |
| 106411 | IIEES | YZKH | E | 39.8 | 0.53 | 2016-05-29 20:21:39 | 2016-05-30 05:27:00 | n |
| 106412 | IIEES | SHRO | E | 6.2 | 0.5 | 2016-05-29 20:21:53 | 2016-05-30 05:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2016-05-29 20:19:37 | -0.29 | y | 68.1 | 200 | |||
| IIEES | SHRT | Z | Pg | E | 2016-05-29 20:19:50 | 0.1 | y | 149 | 35 | |||
| IIEES | TABS | Z | Pn | E | 2016-05-29 20:20:00 | -3.28 | n | 4 | 244 | 301 | ||
| IIEES | KRBR | Z | P | E | 2016-05-29 20:20:21 | 0.75 | y | 377 | 222 | |||
| IIEES | YZKH | Z | Pn | E | 2016-05-29 20:20:28 | -0.33 | y | 450 | 269 | |||
| IIEES | SHRO | Z | Pn | E | 2016-05-29 20:20:34 | -0.37 | y | 493 | 322 | |||
| IIEES | SHRO | E | Sg | E | 2016-05-29 20:21:43 | 0.25 | y | 493 | 322 | |||
| IIEES | MRVT | Z | Pn | E | 2016-05-29 20:20:52 | -0.19 | y | 642 | 333 | |||
