Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2016-05-29 21:21:34.1 |
| Date & Time (Local) | 1395/3/10 01:51:34.1 |
| Location | Lat:35.676 Lon: 51.109 |
| Region | Tehran Province, 5 km of Shahriyar |
Nearest Cities |
|
| 5 km North of Shahriyar, Tehran Province | |
| 11 km North of Joqin, Tehran Province | |
| 12 km North East of Malard, Tehran Province | |
| 16 km North of Manjilabad, Tehran Province | |
| 16 km North West of Firooz bahram, Tehran Province | |
| Depth | 14 km |
| Agency | |

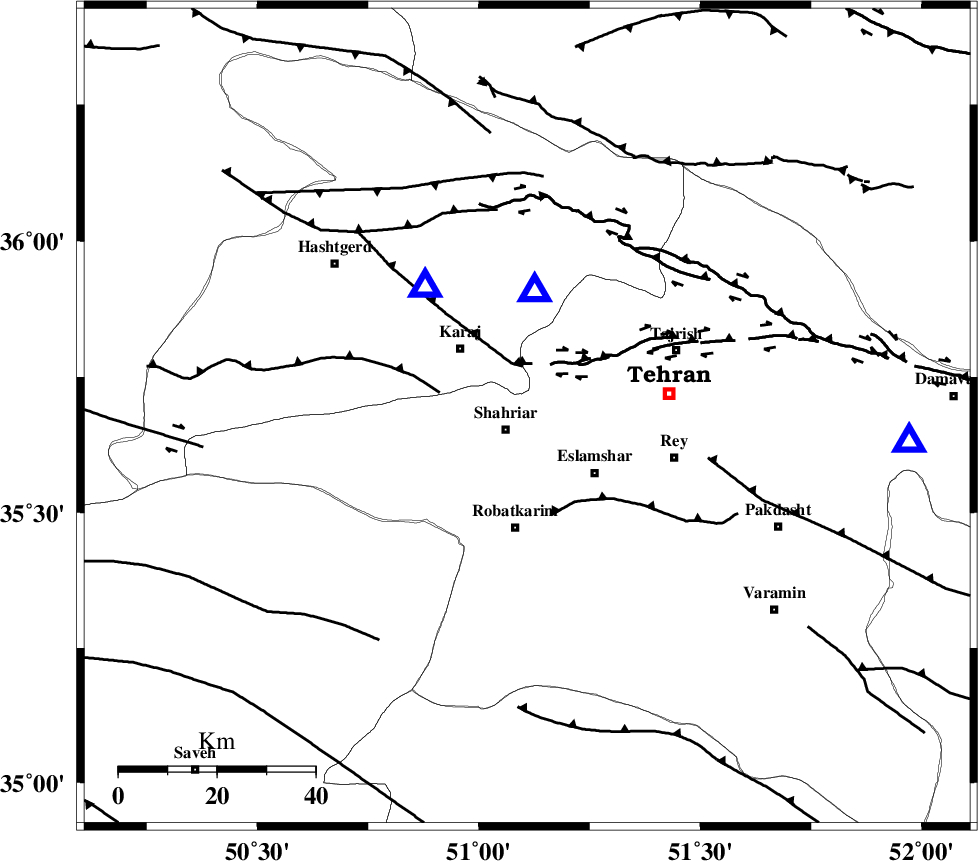

Faults within 150 km: |
|
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 9 km | |
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 19 km | |
| KAHRIZAK_F (Length: 44 km) , Distance to epicenter: 20 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106421 | IIEES | CHTH | E | 405.4 | 0.1 | 2016-05-29 21:21:43 | 2016-05-30 05:31:00 | n |
| 106422 | IIEES | CHTH | N | 268.6 | 0.09 | 2016-05-29 21:21:43 | 2016-05-30 05:31:00 | n |
| 106423 | IIEES | GHVR | E | 44.4 | 0.54 | 2016-05-29 21:22:18 | 2016-05-30 05:31:00 | n |
| 106424 | IIEES | GHVR | N | 30.4 | 0.57 | 2016-05-29 21:22:18 | 2016-05-30 05:31:00 | n |
| 106425 | IIEES | ASAO | N | 44.1 | 0.43 | 2016-05-29 21:22:20 | 2016-05-30 05:31:00 | n |
| 106426 | IIEES | ASAO | E | 17 | 0.68 | 2016-05-29 21:22:21 | 2016-05-30 05:31:00 | n |
| 106427 | IIEES | ZNJK | N | 7.9 | 0.36 | 2016-05-29 21:22:43 | 2016-05-30 05:31:00 | n |
| 106428 | IIEES | ZNJK | E | 8.6 | 0.18 | 2016-05-29 21:22:43 | 2016-05-30 05:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2016-05-29 21:21:39 | -0.04 | y | 25.8 | 3 | |||
| IIEES | GHVR | Z | Pg | E | 2016-05-29 21:21:56 | 0.03 | y | 133 | 175 | |||
| IIEES | ASAO | Z | Pg | E | 2016-05-29 21:22:00 | -0.1 | y | 159 | 219 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-05-29 21:22:11 | 0.05 | y | 239 | 206 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-05-29 21:22:12 | 0.07 | y | 244 | 298 | |||
