Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2016-06-03 10:18:11.5 |
| Date & Time (Local) | 1395/3/14 14:48:11.5 |
| Location | Lat:35.249 Lon: 52.129 |
| Region | Semnan Province, 19 km -West of Garmsar |
Nearest Cities |
|
| 12 km of Evanekay, Semnan Province | |
| 14 km East of Cheshmeh nadi, Semnan Province | |
| 19 km North West of Lajran, Semnan Province | |
| 19 km North West of Garmsar, Semnan Province | |
| 22 km East of Shorqazi, Semnan Province | |
| Depth | 14 km |
| Agency | |

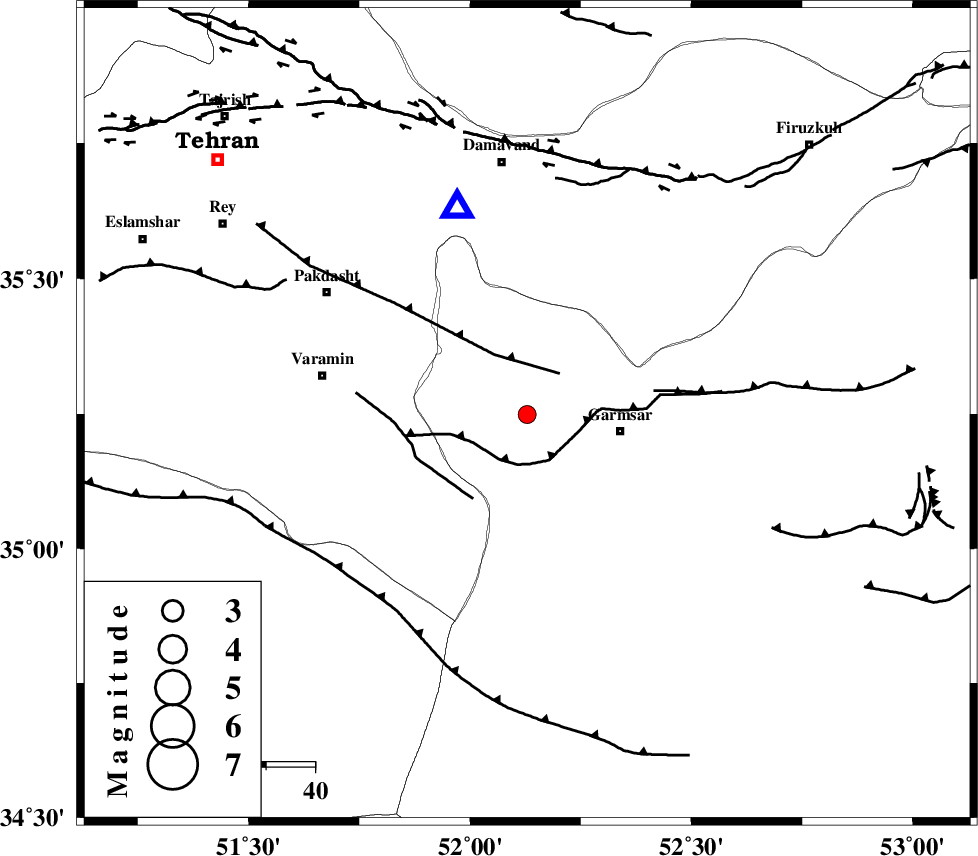

Faults within 150 km: |
|
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 10 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 11 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 21 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106492 | IIEES | CHTH | N | 64.5 | 0.16 | 2016-06-03 10:18:48 | 2016-06-05 07:24:00 | n |
| 106493 | IIEES | GHVR | N | 64.8 | 0.26 | 2016-06-03 10:18:52 | 2016-06-05 07:24:00 | n |
| 106494 | IIEES | GHVR | E | 127.2 | 0.36 | 2016-06-03 10:18:58 | 2016-06-05 07:24:00 | n |
| 106495 | IIEES | ASAO | N | 36.3 | 0.54 | 2016-06-03 10:19:20 | 2016-06-05 07:24:00 | n |
| 106496 | IIEES | ASAO | E | 35.3 | 0.36 | 2016-06-03 10:19:20 | 2016-06-05 07:24:00 | n |
| 106497 | IIEES | KHMZ | E | 16 | 0.41 | 2016-06-03 10:19:28 | 2016-06-05 07:24:00 | n |
| 106498 | IIEES | NASN | N | 19.1 | 0.55 | 2016-06-03 10:19:46 | 2016-06-05 07:24:00 | n |
| 106499 | IIEES | NASN | E | 29.9 | 0.63 | 2016-06-03 10:19:47 | 2016-06-05 07:24:00 | n |
| 106500 | IIEES | YZKH | N | 7.8 | 0.5 | 2016-06-03 10:20:05 | 2016-06-05 07:24:00 | n |
| 106501 | IIEES | YZKH | E | 7.1 | 0.69 | 2016-06-03 10:20:21 | 2016-06-05 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2016-06-03 10:18:31 | 0.17 | y | 117 | 309 | |||
| IIEES | GHVR | Z | Pg | E | 2016-06-03 10:18:31 | 0.05 | y | 118 | 224 | |||
| IIEES | ASAO | Z | Pg | E | 2016-06-03 10:18:45 | -0.39 | y | 207 | 249 | |||
| IIEES | ASAO | N | Sg | E | 2016-06-03 10:19:10 | 0.06 | y | 207 | 249 | |||
| IIEES | KHMZ | Z | P | E | 2016-06-03 10:18:51 | 0.16 | y | 260 | 231 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-03 10:18:54 | 0.06 | y | 279 | 167 | |||
| IIEES | SHRO | Z | Pn | E | 2016-06-03 10:19:04 | -0.02 | y | 362 | 75 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-03 10:19:08 | 0.21 | y | 390 | 144 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-03 10:19:19 | -0.38 | y | 492 | 110 | |||
