Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-06-06 04:37:46.0 |
| Date & Time (Local) | 1395/3/17 09:07:46.0 |

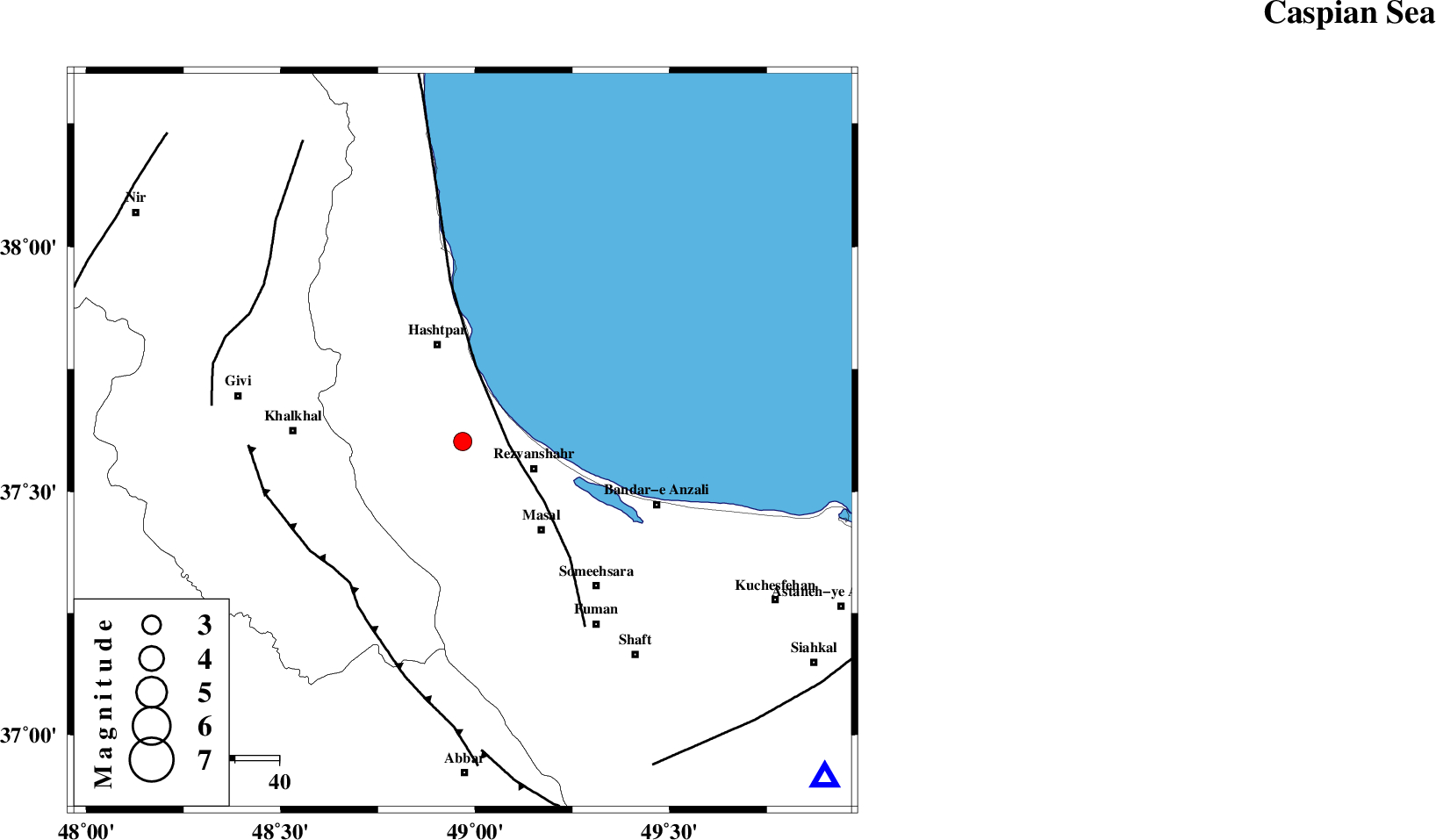

| Location | Lat:37.602 Lon: 48.968 |
| Region | Gilan Province, 17 km -West of Rezvanshahr |
Nearest Cities |
|
| 9 km North of Parrehsar, Gilan Province | |
| 9 km West of Void, Gilan Province | |
| 10 km North of Ardeh, Gilan Province | |
| 17 km South of Tularud, Gilan Province | |
| 17 km North West of Rezvanshahr, Gilan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 11 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 41 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 56 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106673 | IIEES | DAGI | E | 182.9 | 0.3 | 2016-06-06 04:38:22 | 2016-06-06 05:15:00 | n |
| 106674 | IIEES | DAGI | N | 294.5 | 0.3 | 2016-06-06 04:38:23 | 2016-06-06 05:15:00 | n |
| 106675 | IIEES | GRMI | N | 193.1 | 0.31 | 2016-06-06 04:38:34 | 2016-06-06 05:15:00 | n |
| 106676 | IIEES | GRMI | E | 169.2 | 0.51 | 2016-06-06 04:38:34 | 2016-06-06 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2016-06-06 04:38:04 | -0.02 | y | 106 | 194 | |||
| IIEES | DAGI | Z | Pg | E | 2016-06-06 04:38:05 | 0.1 | y | 113 | 132 | |||
| IIEES | DAGI | N | Sg | E | 2016-06-06 04:38:18 | -0.09 | y | 113 | 132 | |||
| IIEES | GRMI | Z | Pg | E | 2016-06-06 04:38:13 | 0.12 | y | 164 | 325 | |||
| IIEES | GRMI | E | Sg | E | 2016-06-06 04:38:32 | -0.11 | y | 164 | 325 | |||
| IIEES | CHTH | Z | Pn | E | 2016-06-06 04:38:27 | -0.01 | y | 269 | 134 | |||
