Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2016-06-12 16:48:40.4 |
| Date & Time (Local) | 1395/3/23 21:18:40.4 |

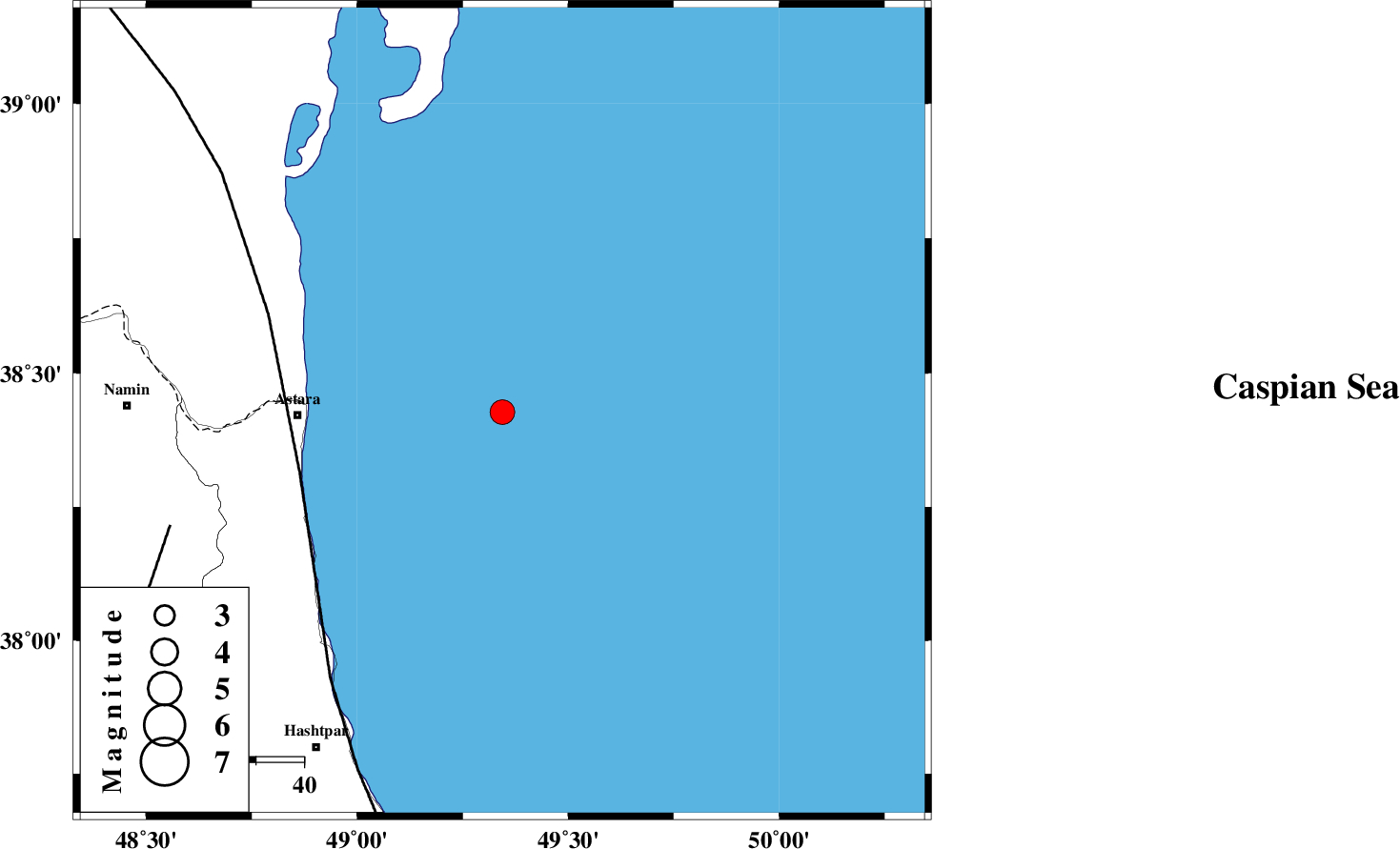

| Location | Lat:38.427 Lon: 49.344 |
| Region | Caspian Sea, 42 km -East of Astara |
Nearest Cities |
|
| 42 km North East of Astara, Gilan Province | |
| 45 km North East of Londovil, Gilan Province | |
| 50 km North East of Hariq, Gilan Province | |
| 60 km North East of Kiladeh, Gilan Province | |
| 62 km North East of Lisar, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 44 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 73 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 101 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 6.6 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106787 | IIEES | GIDE | E | 520.4 | 0.31 | 2016-06-12 16:49:30 | 2016-06-13 04:53:00 | n |
| 106788 | IIEES | ZNJK | E | 667.9 | 0.4 | 2016-06-12 16:49:41 | 2016-06-13 04:53:00 | n |
| 106789 | IIEES | ZNJK | N | 573.6 | 0.43 | 2016-06-12 16:49:41 | 2016-06-13 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2016-06-12 16:49:02 | -0.02 | y | 133 | 289 | |||
| IIEES | GRMI | E | Sg | E | 2016-06-12 16:49:19 | 0.13 | y | 133 | 289 | |||
| IIEES | GIDE | Z | Pg | E | 2016-06-12 16:49:08 | -0.47 | y | 174 | 163 | |||
| IIEES | ZNJK | Z | Pg | E | 2016-06-12 16:49:13 | -0.11 | y | 203 | 197 | |||
| IIEES | ZNJK | N | Sg | E | 2016-06-12 16:49:38 | 0 | y | 203 | 197 | |||
| IIEES | CHTH | Z | Pn | E | 2016-06-12 16:49:28 | 0.12 | y | 321 | 150 | |||
| IIEES | DAMV | Z | Pn | E | 2016-06-12 16:49:37 | 0.52 | y | 388 | 142 | |||
| IIEES | MAKU | Z | Pn | E | 2016-06-12 16:49:39 | -0.31 | y | 417 | 286 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-12 16:49:42 | 0.51 | y | 435 | 172 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-12 16:49:46 | 0.02 | y | 470 | 158 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-12 16:50:30 | 0.54 | y | 822 | 143 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-12 16:50:35 | -1.36 | y | 878 | 125 | |||
