Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2016-06-18 17:57:53.6 |
| Date & Time (Local) | 1395/3/29 22:27:53.6 |

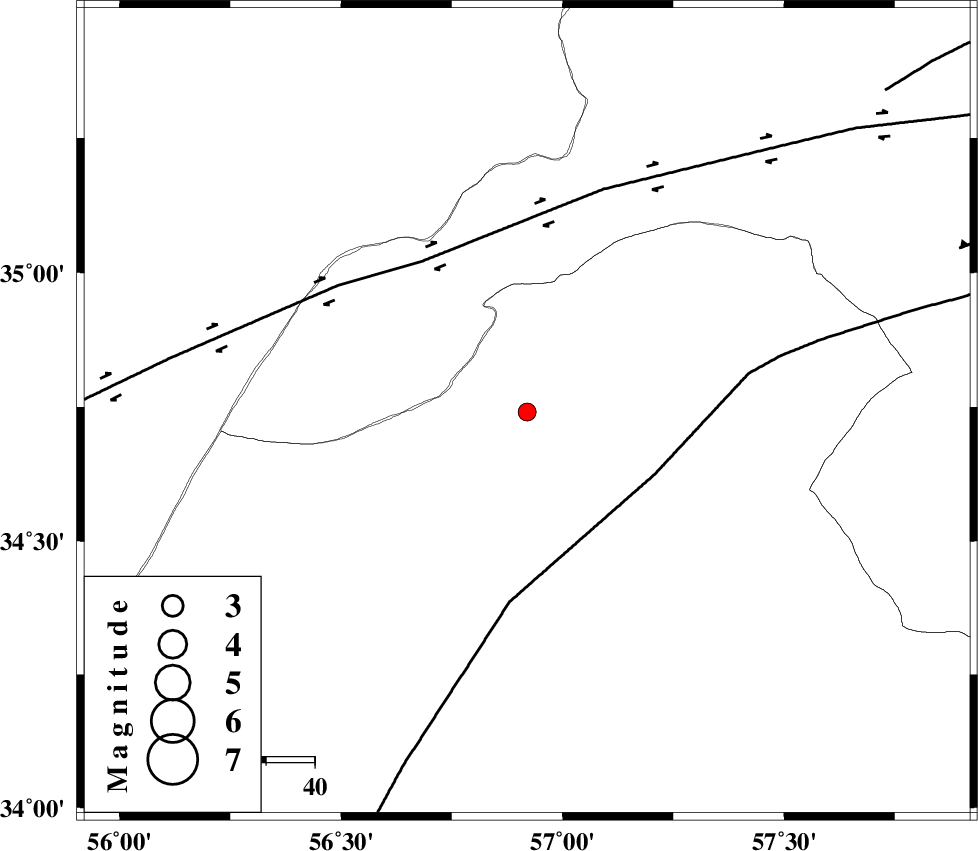

| Location | Lat:34.741 Lon: 56.92 |
| Region | Yazd Province, 127 km North of Tabas |
Nearest Cities |
|
| 34 km South West of Tappeh taq, Yazd Province | |
| 42 km North of Eshqabad, Yazd Province | |
| 87 km North West of Qaniabad, Khorasan(center) Province | |
| 95 km South East of Zamanabad, Semnan Province | |
| 102 km South West of Shahrabad, Khorasan(center) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 29 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 38 km | |
| MEHDIABAD_F (Length: 64 km) , Distance to epicenter: 95 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106879 | IIEES | TABS | N | 129.5 | 0.43 | 2016-06-18 17:58:33 | 2016-06-19 05:29:00 | n |
| 106880 | IIEES | SHRO | N | 45.4 | 0.27 | 2016-06-18 17:58:43 | 2016-06-19 05:29:00 | n |
| 106881 | IIEES | SHRT | E | 12.5 | 0.48 | 2016-06-18 17:59:28 | 2016-06-19 05:29:00 | n |
| 106882 | IIEES | SHRT | N | 12.7 | 0.31 | 2016-06-18 17:59:33 | 2016-06-19 05:29:00 | n |
| 106883 | IIEES | YZKH | N | 21.2 | 0.17 | 2016-06-18 17:59:30 | 2016-06-19 05:29:00 | n |
| 106884 | IIEES | YZKH | E | 20.5 | 0.46 | 2016-06-18 17:59:41 | 2016-06-19 05:29:00 | n |
| 106885 | IIEES | NASN | N | 4.1 | 0.35 | 2016-06-18 18:00:12 | 2016-06-19 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2016-06-18 17:58:14 | -0.13 | y | 122 | 171 | |||
| IIEES | TABS | N | Sg | E | 2016-06-18 17:58:29 | 0.09 | y | 122 | 171 | |||
| IIEES | SHRO | Z | Pg | E | 2016-06-18 17:58:20 | 0.03 | y | 163 | 330 | |||
| IIEES | SHRT | Z | Pn | E | 2016-06-18 17:58:42 | 0.01 | y | 334 | 110 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-18 17:58:43 | -0.01 | y | 339 | 220 | |||
| IIEES | BSRN | Z | Pn | E | 2016-06-18 17:58:46 | 0.01 | y | 370 | 146 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-18 17:59:06 | 11.02 | n | 4 | 437 | 242 | ||
