Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2016-06-22 21:05:45.2 |
| Date & Time (Local) | 1395/4/3 01:35:45.2 |

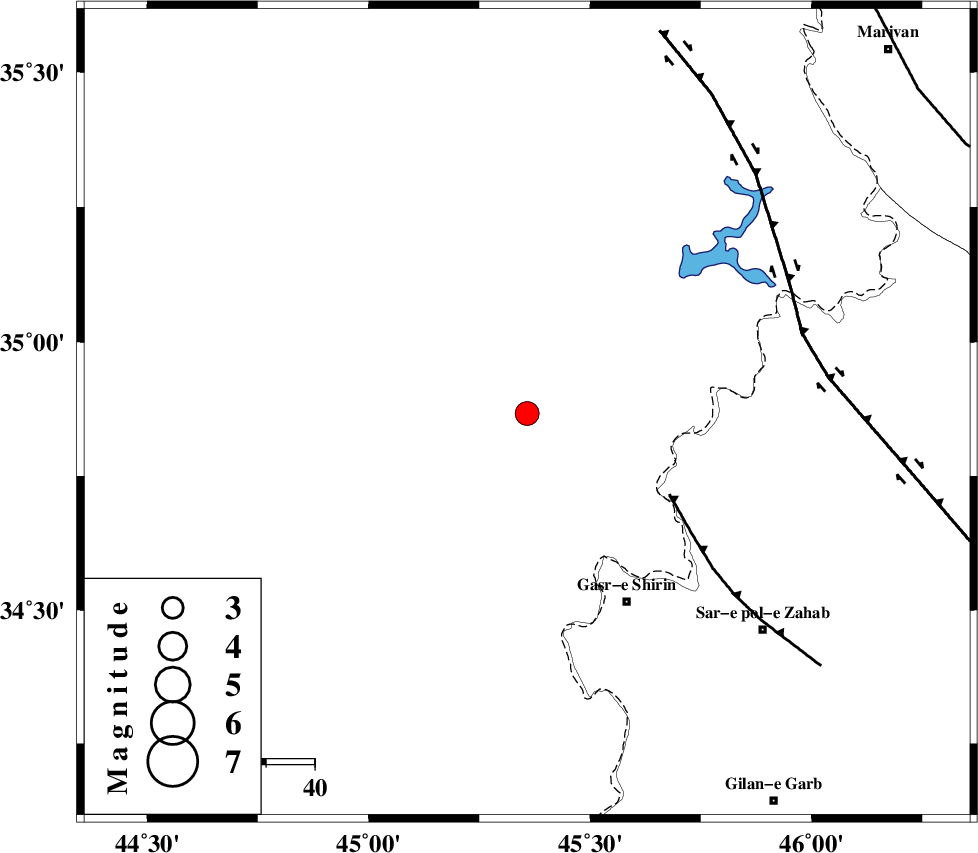

| Location | Lat:34.867 Lon: 45.358 |
| Region | Iraq, 44 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 35 km North West of Tappeh rash, Kermanshah Province | |
| 44 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 44 km North West of Gardehnu, Kermanshah Province | |
| 45 km North West of Tazehabad, Kermanshah Province | |
| 46 km North West of Aqabarar, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 59 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 104 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106994 | IIEES | SNGE | N | 706.1 | 0.65 | 2016-06-22 21:06:44 | 2016-06-25 09:12:00 | n |
| 106995 | IIEES | SNGE | E | 411.4 | 0.58 | 2016-06-22 21:07:00 | 2016-06-25 09:12:00 | n |
| 106996 | IIEES | ZNJK | N | 56 | 0.74 | 2016-06-22 21:07:42 | 2016-06-25 09:12:00 | n |
| 106997 | IIEES | ASAO | N | 40.9 | 0.66 | 2016-06-22 21:08:06 | 2016-06-25 09:12:00 | n |
| 106998 | IIEES | ASAO | E | 39.1 | 0.5 | 2016-06-22 21:08:06 | 2016-06-25 09:12:00 | n |
| 106999 | IIEES | KHMZ | E | 31.2 | 0.48 | 2016-06-22 21:07:40 | 2016-06-25 09:12:00 | n |
| 107000 | IIEES | GRMI | N | 23.5 | 0.76 | 2016-06-22 21:08:18 | 2016-06-25 09:12:00 | n |
| 107001 | IIEES | GRMI | E | 17.4 | 0.65 | 2016-06-22 21:08:32 | 2016-06-25 09:12:00 | n |
| 107002 | IIEES | GHVR | E | 21.4 | 0.5 | 2016-06-22 21:08:46 | 2016-06-25 09:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2016-06-22 21:06:15 | -0.28 | y | 183 | 82 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-06-22 21:06:37 | -0.09 | y | 361 | 55 | |||
| IIEES | ZNJK | N | Sg | E | 2016-06-22 21:07:26 | 0.15 | y | 361 | 55 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-22 21:06:46 | 0.25 | y | 429 | 93 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-06-22 21:06:48 | 0.04 | y | 442 | 105 | |||
| IIEES | GRMI | Z | Pn | E | 2016-06-22 21:06:54 | -0.02 | y | 493 | 27 | |||
| IIEES | CHTH | Z | Pn | E | 2016-06-22 21:06:59 | -0.17 | y | 537 | 76 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-22 21:07:00 | 0.08 | y | 541 | 93 | |||
| IIEES | DAMV | Z | Pn | E | 2016-06-22 21:07:08 | 0.25 | y | 608 | 80 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-22 21:07:23 | 0.1 | y | 727 | 106 | |||
| IIEES | AHRM | Z | Pn | E | 2016-06-22 21:07:41 | 0.01 | y | 870 | 138 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-22 21:07:44 | -0.38 | y | 899 | 105 | |||
