Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-07-02 00:47:50.8 |
| Date & Time (Local) | 1395/4/12 05:17:50.8 |

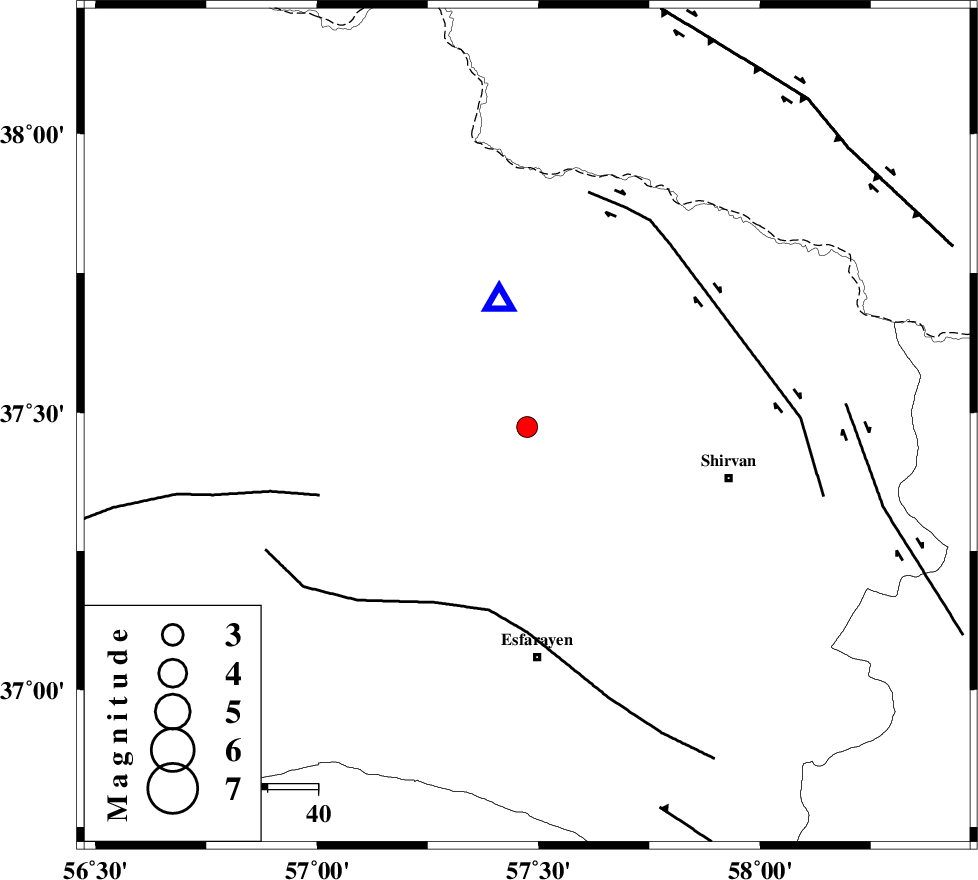

| Location | Lat:37.474 Lon: 57.474 |
| Region | Khorasan(north) Province, 13 km -East of Bojnurd |
Nearest Cities |
|
| 5 km of Hesar-egarmkhanh, Khorasan(north) Province | |
| 13 km North East of Bojnurd, Khorasan(north) Province | |
| 13 km North East of Void, Khorasan(north) Province | |
| 29 km North West of Zavarom, Khorasan(north) Province | |
| 33 km South West of Tukur, Khorasan(north) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 37 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 44 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 45 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107205 | IIEES | BJRD | E | 2672.9 | 0.17 | 2016-07-02 00:48:00 | 2016-07-02 06:14:00 | n |
| 107206 | IIEES | BJRD | N | 1647.3 | 0.36 | 2016-07-02 00:48:01 | 2016-07-02 06:14:00 | n |
| 107207 | IIEES | MRVT | E | 328 | 0.26 | 2016-07-02 00:48:33 | 2016-07-02 06:14:00 | n |
| 107208 | IIEES | MRVT | N | 235.2 | 0.33 | 2016-07-02 00:48:34 | 2016-07-02 06:14:00 | n |
| 107209 | IIEES | SHRO | E | 89.3 | 0.6 | 2016-07-02 00:48:52 | 2016-07-02 06:14:00 | n |
| 107210 | IIEES | DAMV | N | 4.1 | 0.63 | 2016-07-02 00:50:34 | 2016-07-02 06:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2016-07-02 00:47:56 | -0.06 | y | 25.7 | 347 | |||
| IIEES | BJRD | N | Sg | E | 2016-07-02 00:48:00 | 0.12 | y | 25.7 | 347 | |||
| IIEES | MRVT | Z | Pg | E | 2016-07-02 00:48:11 | -0.17 | y | 124 | 280 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-02 00:48:24 | 0.27 | y | 209 | 219 | |||
| IIEES | SHRO | N | Sg | E | 2016-07-02 00:48:50 | 0.02 | y | 209 | 219 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-02 00:48:51 | 0.25 | y | 426 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2016-07-02 00:48:59 | -0.19 | y | 495 | 148 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-02 00:49:04 | -0.08 | y | 533 | 249 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-02 00:49:15 | -0.29 | y | 622 | 206 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-02 00:49:16 | -0.08 | y | 629 | 166 | |||
