Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2016-07-01 01:07:54.5 |
| Date & Time (Local) | 1395/4/11 05:37:54.5 |
| Location | Lat:36.327 Lon: 54.617 |
| Region | Semnan Province, 30 km North-East of Damghan |
Nearest Cities |
|
| 13 km North of Mehmandust, Semnan Province | |
| 17 km South of Majen, Semnan Province | |
| 29 km South East of Cheharbagh, Golestan Province | |
| 30 km North East of Damghan, Semnan Province | |
| 33 km West of Shahrud, Semnan Province | |
| Depth | 15 km |
| Agency | |

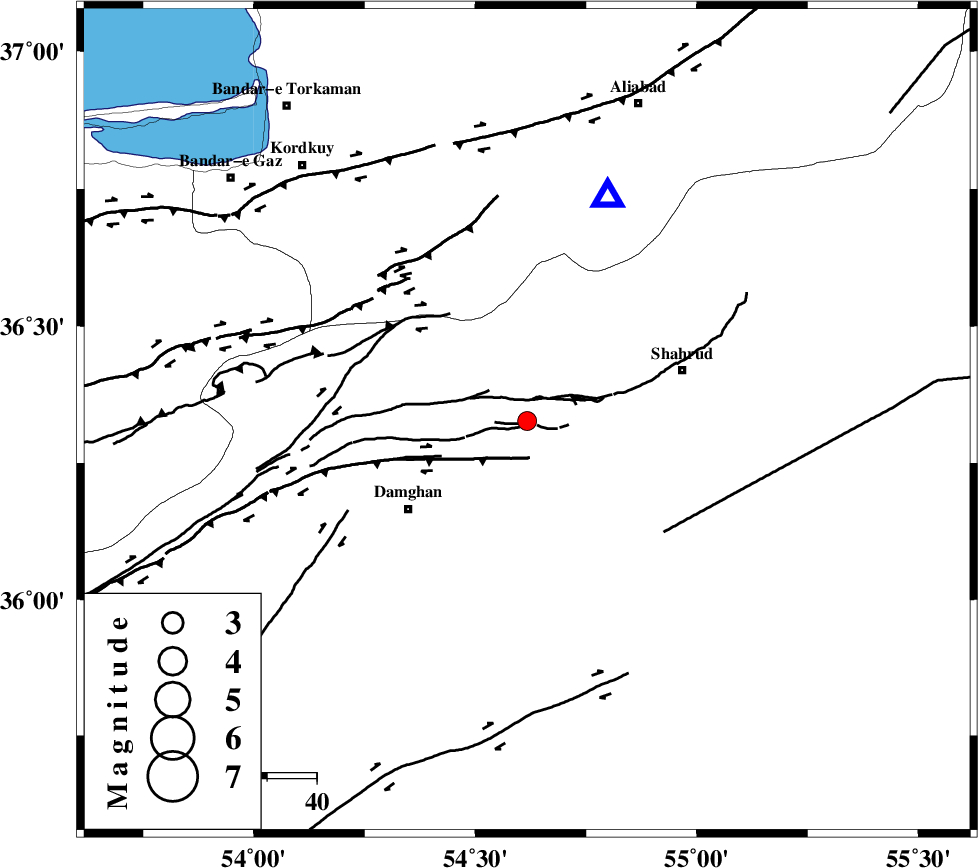

Faults within 150 km: |
|
| ATARI_F (Length: 185 km) , Distance to epicenter: 8 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 11 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 17 km | |
| Number of Phases | 14 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | >6.4 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107232 | IIEES | DAMV | N | 41.1 | 0.46 | 2016-07-01 01:09:08 | 2016-07-02 08:08:00 | n |
| 107233 | IIEES | DAMV | E | 27.9 | 0.29 | 2016-07-01 01:09:09 | 2016-07-02 08:08:00 | n |
| 107234 | IIEES | GHVR | N | 9.1 | 0.62 | 2016-07-01 01:09:45 | 2016-07-02 08:08:00 | n |
| 107235 | IIEES | GHVR | E | 23.1 | 0.5 | 2016-07-01 01:09:45 | 2016-07-02 08:08:00 | n |
| 107236 | IIEES | GIDE | N | 9.5 | 0.47 | 2016-07-01 01:10:04 | 2016-07-02 08:08:00 | n |
| 107237 | IIEES | GIDE | E | 10.4 | 0.47 | 2016-07-01 01:10:06 | 2016-07-02 08:08:00 | n |
| 107238 | IIEES | ASAO | E | 4.3 | 0.64 | 2016-07-01 01:10:13 | 2016-07-02 08:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-07-01 01:08:15 | -0.42 | y | 130 | 105 | |||
| IIEES | MRVT | Z | Pg | E | 2016-07-01 01:08:26 | -0.67 | y | 198 | 41 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-01 01:08:33 | 0.31 | y | 251 | 253 | |||
| IIEES | DAMV | N | Sg | E | 2016-07-01 01:09:05 | -0.2 | y | 251 | 253 | |||
| IIEES | BJRD | Z | Pn | E | 2016-07-01 01:08:39 | 1.03 | y | 291 | 58 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-01 01:08:42 | 0.87 | y | 318 | 263 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-01 01:08:47 | -0.16 | y | 368 | 237 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-01 01:08:48 | -0.24 | y | 375 | 142 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-01 01:08:55 | 0.48 | y | 425 | 204 | |||
| IIEES | GIDE | Z | Pn | E | 2016-07-01 01:08:54 | -1.06 | y | 426 | 280 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-01 01:08:56 | -0.2 | y | 437 | 180 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-01 01:08:58 | -0.67 | y | 461 | 246 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-01 01:09:21 | 0.53 | y | 638 | 138 | |||
| IIEES | GRMI | Z | Pn | E | 2016-07-01 01:09:24 | 0.73 | y | 655 | 297 | |||
