Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2016-07-13 09:31:19.7 |
| Date & Time (Local) | 1395/4/23 14:01:19.7 |

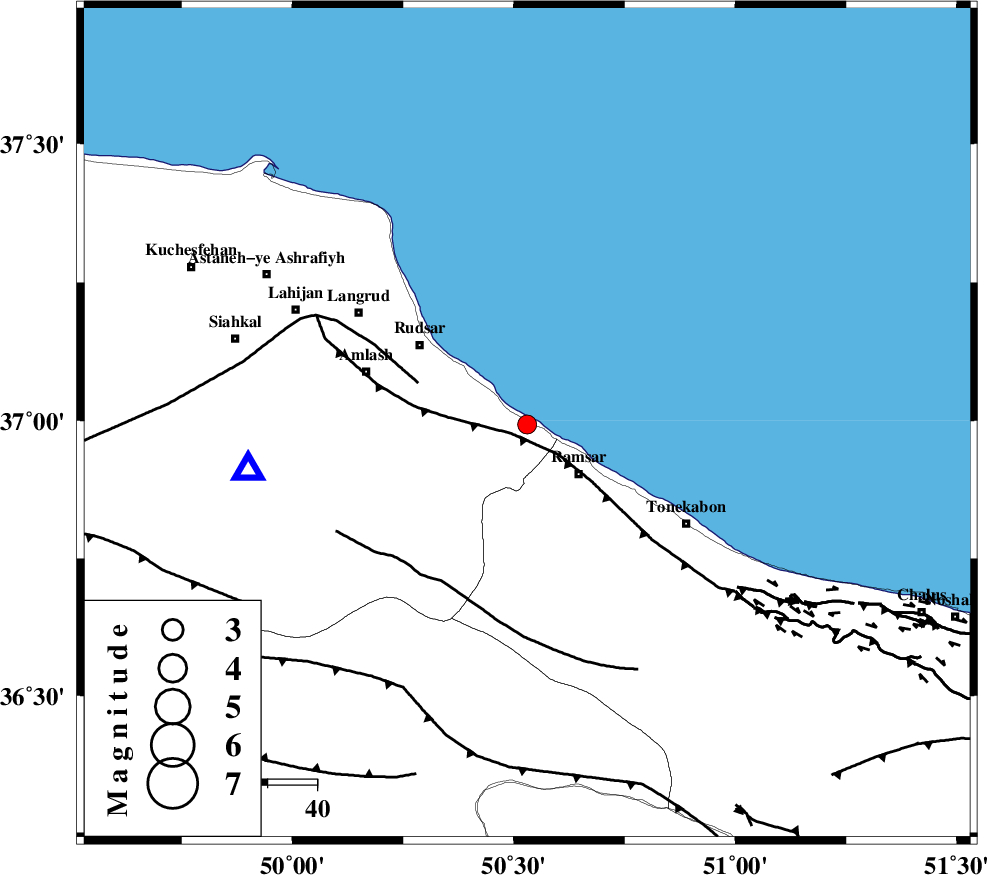

| Location | Lat:36.993 Lon: 50.53 |
| Region | Gilan Province, 14 km -West of Ramsar |
Nearest Cities |
|
| 3 km North of Chaboksar, Gilan Province | |
| 11 km North of Galesh mahalleh, Mazandaran Province | |
| 12 km East of Vajargah, Gilan Province | |
| 14 km North West of Ramsar, Mazandaran Province | |
| 18 km East of Rahimabad, Gilan Province | |
| Depth | 25 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 4 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 23 km | |
| BONAN_F (Length: 74 km) , Distance to epicenter: 36 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 5 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107658 | IIEES | GIDE | N | 1392.5 | 0.21 | 2016-07-13 09:31:38 | 2016-07-16 09:37:00 | n |
| 107659 | IIEES | GIDE | E | 1131 | 0.33 | 2016-07-13 09:31:38 | 2016-07-16 09:37:00 | n |
| 107660 | IIEES | ZNJK | N | 208.4 | 0.38 | 2016-07-13 09:32:07 | 2016-07-16 09:37:00 | n |
| 107661 | IIEES | ZNJK | E | 153.1 | 0.21 | 2016-07-13 09:32:07 | 2016-07-16 09:37:00 | n |
| 107662 | IIEES | DAMV | N | 33.6 | 0.35 | 2016-07-13 09:32:20 | 2016-07-16 09:37:00 | n |
| 107663 | IIEES | DAMV | E | 30.6 | 0.2 | 2016-07-13 09:32:23 | 2016-07-16 09:37:00 | n |
| 107664 | IIEES | ASAO | N | 32.1 | 0.4 | 2016-07-13 09:32:35 | 2016-07-16 09:37:00 | n |
| 107665 | IIEES | ASAO | E | 19.3 | 0.63 | 2016-07-13 09:32:37 | 2016-07-16 09:37:00 | n |
| 107666 | IIEES | GRMI | E | 10.6 | 0.32 | 2016-07-13 09:32:34 | 2016-07-16 09:37:00 | n |
| 107667 | IIEES | GRMI | N | 11.5 | 0.32 | 2016-07-13 09:32:36 | 2016-07-16 09:37:00 | n |
| 107668 | IIEES | SNGE | N | 7.2 | 0.45 | 2016-07-13 09:33:08 | 2016-07-16 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GIDE | Z | Pg | E | 2016-07-13 09:31:30 | 0.31 | y | 55.7 | 262 | |||
| IIEES | CHTH | Z | Pg | E | 2016-07-13 09:31:41 | -0.4 | y | 132 | 156 | |||
| IIEES | ZNJK | Z | Pg | E | 2016-07-13 09:31:46 | -0.3 | y | 168 | 258 | |||
| IIEES | DAMV | Z | Pg | E | 2016-07-13 09:31:52 | 0.29 | y | 199 | 139 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-13 09:32:00 | 0.08 | y | 275 | 190 | |||
| IIEES | GRMI | Z | Pn | E | 2016-07-13 09:32:04 | -0.1 | y | 307 | 312 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-13 09:32:10 | 0.13 | y | 356 | 235 | |||
