Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2016-07-17 00:05:31.5 |
| Date & Time (Local) | 1395/4/27 04:35:31.5 |

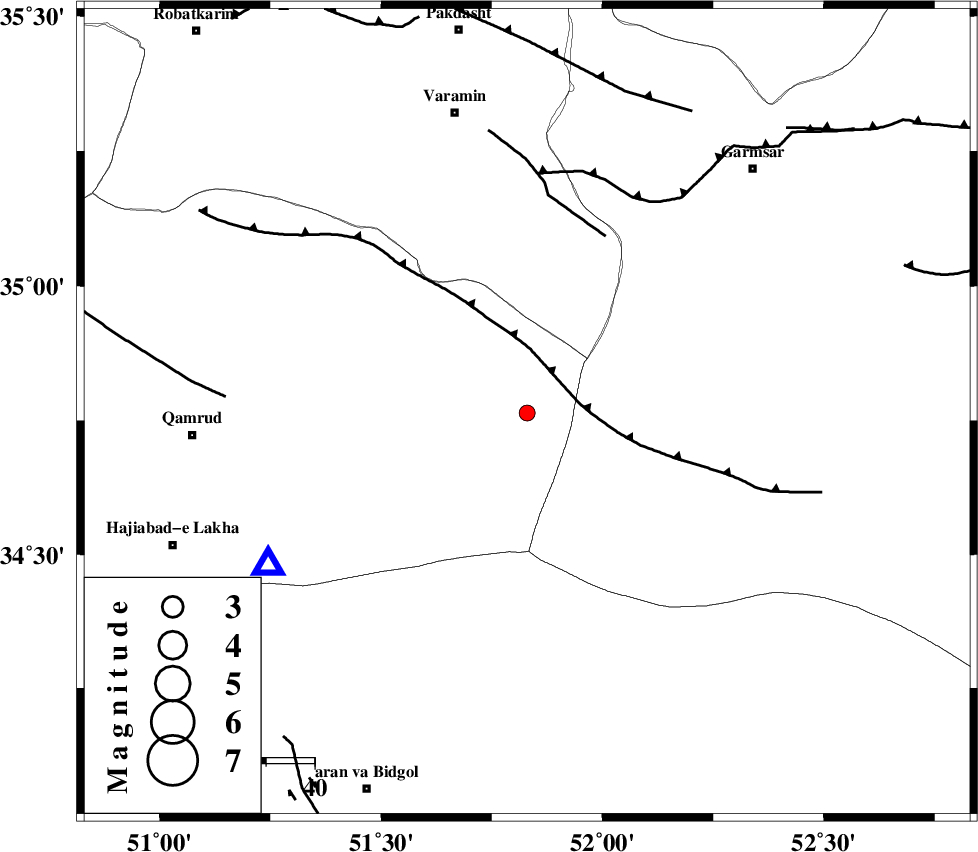

| Location | Lat:34.764 Lon: 51.83 |
| Region | Qom Province, 64 km South-East of Varamin |
Nearest Cities |
|
| 52 km North of Marnejab, Esfahan Province | |
| 58 km South of Shorqazi, Semnan Province | |
| 59 km South East of Ab barik, Tehran Province | |
| 61 km South West of Cheshmeh nadi, Semnan Province | |
| 61 km South of Pishva, Tehran Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 9 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 40 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 50 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107714 | IIEES | GHVR | E | 153.5 | 0.16 | 2016-07-17 00:05:56 | 2016-07-17 05:29:00 | n |
| 107715 | IIEES | GHVR | N | 109.7 | 0.25 | 2016-07-17 00:05:56 | 2016-07-17 05:29:00 | n |
| 107716 | IIEES | DAMV | N | 145.3 | 0.23 | 2016-07-17 00:06:01 | 2016-07-17 05:29:00 | n |
| 107717 | IIEES | DAMV | E | 200.3 | 0.2 | 2016-07-17 00:06:01 | 2016-07-17 05:29:00 | n |
| 107718 | IIEES | CHTH | E | 43.5 | 0.32 | 2016-07-17 00:06:16 | 2016-07-17 05:29:00 | n |
| 107719 | IIEES | CHTH | N | 44 | 0.25 | 2016-07-17 00:06:16 | 2016-07-17 05:29:00 | n |
| 107720 | IIEES | ASAO | E | 28.8 | 0.39 | 2016-07-17 00:06:22 | 2016-07-17 05:29:00 | n |
| 107721 | IIEES | KHMZ | E | 17.5 | 0.65 | 2016-07-17 00:06:30 | 2016-07-17 05:29:00 | n |
| 107722 | IIEES | NASN | N | 25.3 | 0.17 | 2016-07-17 00:06:38 | 2016-07-17 05:29:00 | n |
| 107723 | IIEES | NASN | E | 30 | 0.31 | 2016-07-17 00:06:40 | 2016-07-17 05:29:00 | n |
| 107724 | IIEES | YZKH | N | 3.3 | 0.42 | 2016-07-17 00:07:23 | 2016-07-17 05:29:00 | n |
| 107725 | IIEES | YZKH | E | 3.9 | 0.58 | 2016-07-17 00:07:23 | 2016-07-17 05:29:00 | n |
| 107726 | IIEES | SHRO | E | 2 | 0.41 | 2016-07-17 00:07:33 | 2016-07-17 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2016-07-17 00:05:42 | -0.08 | y | 62.2 | 240 | |||
| IIEES | DAMV | Z | Pg | E | 2016-07-17 00:05:48 | -0.07 | y | 96.9 | 8 | |||
| IIEES | CHTH | Z | Pg | E | 2016-07-17 00:05:55 | 0.18 | y | 142 | 333 | |||
| IIEES | CHTH | N | Sg | E | 2016-07-17 00:06:12 | -0.11 | y | 142 | 333 | |||
| IIEES | ASAO | Z | Pg | E | 2016-07-17 00:05:59 | 0.1 | y | 167 | 262 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-17 00:06:04 | -0.25 | y | 206 | 237 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-17 00:06:08 | 0.21 | y | 236 | 157 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-07-17 00:06:23 | 0.19 | y | 355 | 308 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-17 00:06:24 | -0.09 | y | 367 | 135 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-17 00:06:29 | -0.09 | y | 404 | 69 | |||
