Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2016-07-26 02:08:12.8 |
| Date & Time (Local) | 1395/5/5 06:38:12.8 |

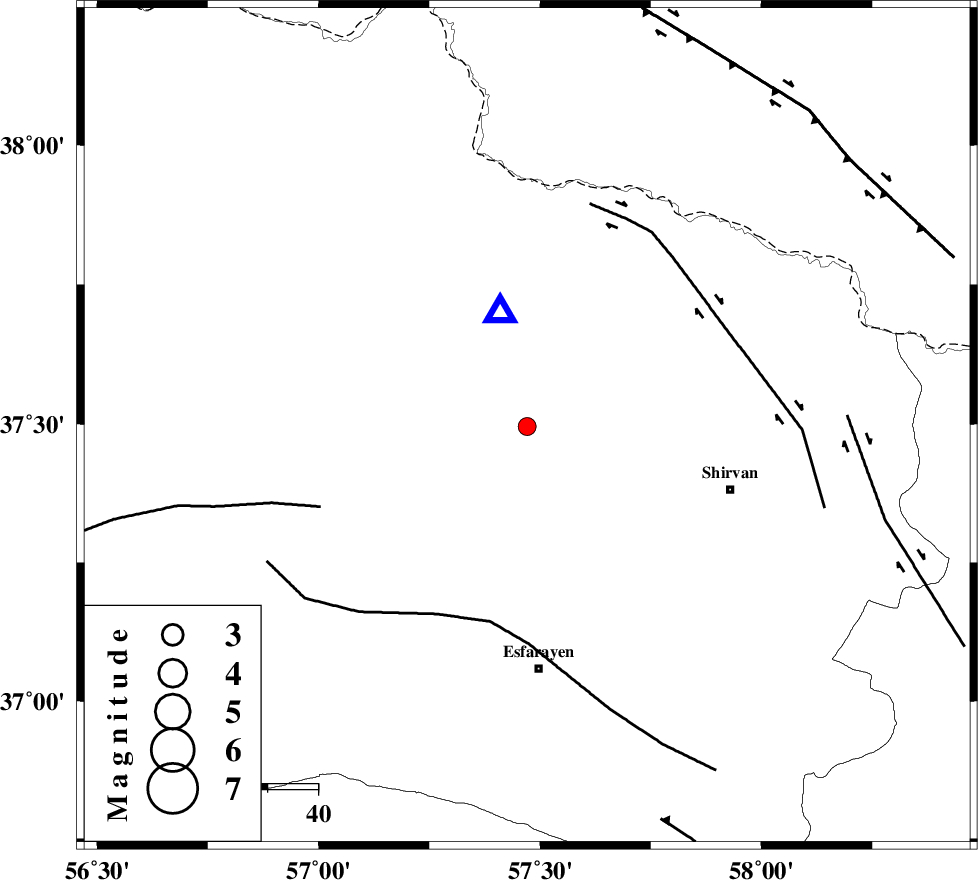

| Location | Lat:37.495 Lon: 57.471 |
| Region | Khorasan(north) Province, 13 km -East of Bojnurd |
Nearest Cities |
|
| 3 km of Hesar-egarmkhanh, Khorasan(north) Province | |
| 13 km North East of Void, Khorasan(north) Province | |
| 13 km North East of Bojnurd, Khorasan(north) Province | |
| 31 km North West of Zavarom, Khorasan(north) Province | |
| 32 km South West of Tukur, Khorasan(north) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 40 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 44 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 45 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107982 | IIEES | BJRD | E | 751.6 | 0.23 | 2016-07-26 02:08:23 | 2016-07-26 05:18:00 | n |
| 107983 | IIEES | BJRD | N | 517.5 | 0.32 | 2016-07-26 02:08:24 | 2016-07-26 05:18:00 | n |
| 107984 | IIEES | MRVT | N | 113.6 | 0.44 | 2016-07-26 02:09:00 | 2016-07-26 05:18:00 | n |
| 107985 | IIEES | MRVT | E | 84.2 | 0.42 | 2016-07-26 02:09:01 | 2016-07-26 05:18:00 | n |
| 107986 | IIEES | SHRO | N | 33.7 | 0.52 | 2016-07-26 02:09:14 | 2016-07-26 05:18:00 | n |
| 107987 | IIEES | SHRO | E | 51.6 | 0.73 | 2016-07-26 02:09:15 | 2016-07-26 05:18:00 | n |
| 107988 | IIEES | TABS | N | 8.4 | 0.67 | 2016-07-26 02:10:29 | 2016-07-26 05:18:00 | n |
| 107989 | IIEES | SHRT | N | 2.9 | 0.47 | 2016-07-26 02:10:17 | 2016-07-26 05:18:00 | n |
| 107990 | IIEES | SHRT | E | 2.6 | 0.47 | 2016-07-26 02:10:18 | 2016-07-26 05:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2016-07-26 02:08:17 | 0.03 | y | 23.4 | 346 | |||
| IIEES | MRVT | Z | Pg | E | 2016-07-26 02:08:33 | -0.06 | y | 123 | 279 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-26 02:08:46 | 0.23 | y | 210 | 219 | |||
| IIEES | SHRO | N | Sg | E | 2016-07-26 02:09:12 | -0.06 | y | 210 | 219 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-26 02:09:13 | 0.3 | y | 428 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2016-07-26 02:09:21 | -0.29 | y | 498 | 148 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-26 02:09:37 | -0.37 | y | 624 | 206 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-26 02:09:39 | 0.04 | y | 632 | 166 | |||
