Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2016-08-03 23:15:45.0 |
| Date & Time (Local) | 1395/5/14 03:45:45.0 |

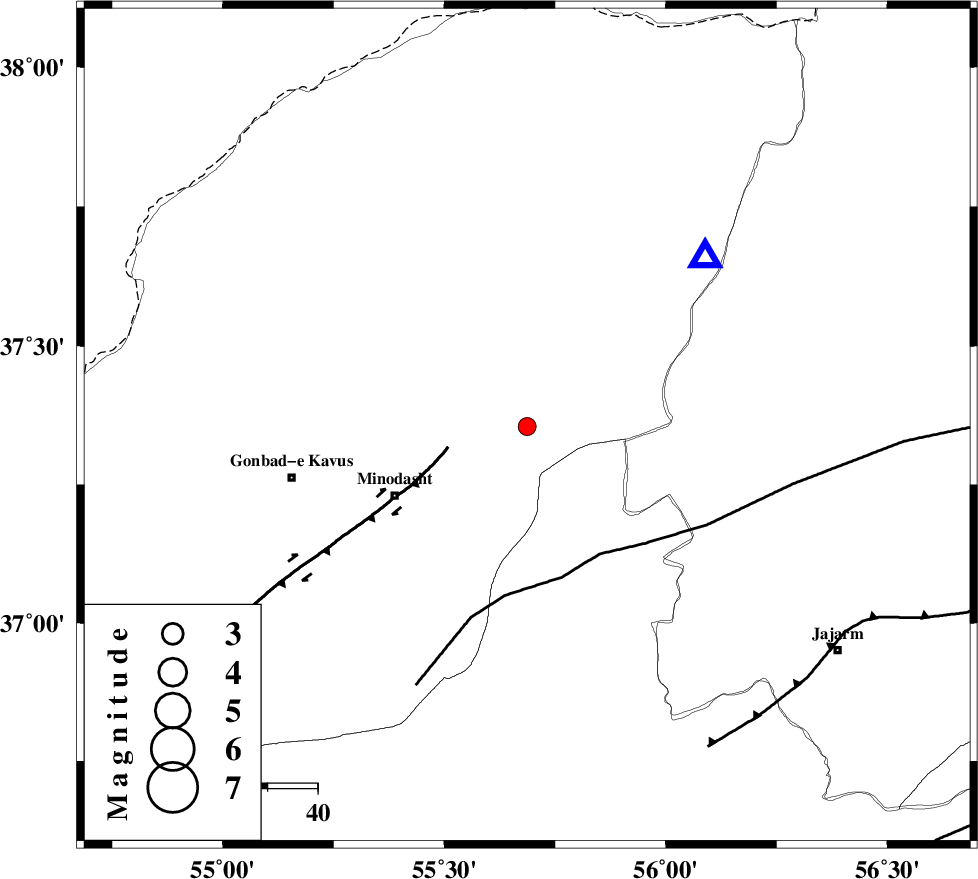

| Location | Lat:37.355 Lon: 55.687 |
| Region | Golestan Province, 17 km -East of Kalaleh |
Nearest Cities |
|
| 6 km of Aq qamish, Golestan Province | |
| 13 km East of Ajen sangarli, Golestan Province | |
| 16 km North of Farsian, Golestan Province | |
| 17 km East of Kalaleh, Golestan Province | |
| 19 km South of Pashikmar, Golestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 29 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 74 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 75 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108305 | IIEES | MRVT | E | 334.7 | 0.16 | 2016-08-03 23:16:01 | 2016-08-06 05:57:00 | n |
| 108306 | IIEES | SHRO | N | 47.1 | 0.2 | 2016-08-03 23:16:29 | 2016-08-06 05:57:00 | n |
| 108307 | IIEES | DAMV | E | 15.9 | 0.55 | 2016-08-03 23:17:41 | 2016-08-06 05:57:00 | n |
| 108308 | IIEES | DAMV | N | 11.4 | 0.33 | 2016-08-03 23:17:43 | 2016-08-06 05:57:00 | n |
| 108309 | IIEES | TABS | N | 4.8 | 0.61 | 2016-08-03 23:17:58 | 2016-08-06 05:57:00 | n |
| 108310 | IIEES | CHTH | E | 4.8 | 0.54 | 2016-08-03 23:17:58 | 2016-08-06 05:57:00 | n |
| 108311 | IIEES | CHTH | N | 4.7 | 0.5 | 2016-08-03 23:17:58 | 2016-08-06 05:57:00 | n |
| 108312 | IIEES | GHVR | E | 4.3 | 0.43 | 2016-08-03 23:18:20 | 2016-08-06 05:57:00 | n |
| 108313 | IIEES | GHVR | N | 5.9 | 0.51 | 2016-08-03 23:18:26 | 2016-08-06 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-08-03 23:15:54 | 0.03 | y | 49.1 | 46 | |||
| IIEES | MRVT | N | Sg | E | 2016-08-03 23:16:00 | 0.04 | y | 49.1 | 46 | |||
| IIEES | SHRO | Z | Pg | E | 2016-08-03 23:16:10 | -0.14 | y | 152 | 169 | |||
| IIEES | SHRO | N | Sg | E | 2016-08-03 23:16:28 | 0.05 | y | 152 | 169 | |||
| IIEES | BJRD | Z | Pg | E | 2016-08-03 23:16:10 | -0.14 | y | 157 | 75 | |||
| IIEES | BJRD | N | Sg | E | 2016-08-03 23:16:30 | 0.13 | y | 157 | 75 | |||
| IIEES | DAMV | Z | Pn | E | 2016-08-03 23:16:40 | 0.44 | y | 384 | 241 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-03 23:16:46 | 0.15 | y | 431 | 162 | |||
| IIEES | CHTH | Z | Pn | E | 2016-08-03 23:16:46 | -0.31 | y | 438 | 250 | |||
| IIEES | GHVR | Z | Pn | E | 2016-08-03 23:16:56 | 0.18 | y | 512 | 233 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-03 23:17:02 | 0.05 | y | 560 | 191 | |||
| IIEES | SHRT | Z | Pn | E | 2016-08-03 23:17:04 | -0.38 | y | 586 | 133 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-08-03 23:17:10 | -0.01 | y | 628 | 265 | |||
| IIEES | GRMI | Z | Pn | E | 2016-08-03 23:17:19 | -0.32 | y | 702 | 286 | |||
