Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2016-08-19 13:26:53.1 |
| Date & Time (Local) | 1395/5/29 17:56:53.1 |

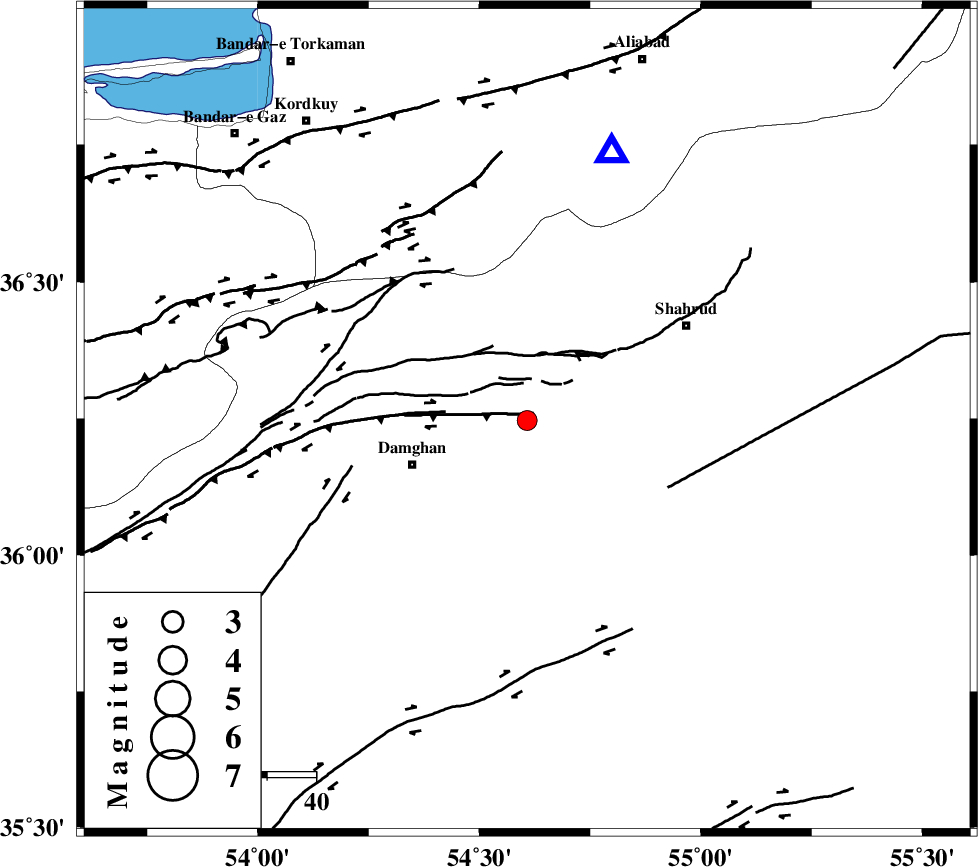

| Location | Lat:36.247 Lon: 54.608 |
| Region | Semnan Province, 25 km -East of Damghan |
Nearest Cities |
|
| 6 km North of Mehmandust, Semnan Province | |
| 25 km North East of Damghan, Semnan Province | |
| 26 km South of Majen, Semnan Province | |
| 37 km South East of Cheharbagh, Golestan Province | |
| 37 km South West of Ruyan, Semnan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ATARI_F (Length: 185 km) , Distance to epicenter: 2 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 8 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 26 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108641 | IIEES | SHRO | E | 155.1 | 0.36 | 2016-08-19 13:27:32 | 2016-08-20 06:36:00 | n |
| 108642 | IIEES | SHRO | N | 122.8 | 0.28 | 2016-08-19 13:27:38 | 2016-08-20 06:36:00 | n |
| 108643 | IIEES | MRVT | E | 131 | 0.33 | 2016-08-19 13:27:58 | 2016-08-20 06:36:00 | n |
| 108644 | IIEES | GHVR | N | 32 | 0.23 | 2016-08-19 13:28:42 | 2016-08-20 06:36:00 | n |
| 108645 | IIEES | GHVR | E | 27.2 | 0.4 | 2016-08-19 13:28:52 | 2016-08-20 06:36:00 | n |
| 108646 | IIEES | TABS | N | 14.2 | 0.52 | 2016-08-19 13:28:49 | 2016-08-20 06:36:00 | n |
| 108647 | IIEES | NASN | E | 13.9 | 0.34 | 2016-08-19 13:29:01 | 2016-08-20 06:36:00 | n |
| 108648 | IIEES | NASN | N | 11.3 | 0.28 | 2016-08-19 13:29:02 | 2016-08-20 06:36:00 | n |
| 108649 | IIEES | YZKH | N | 9.4 | 0.4 | 2016-08-19 13:29:11 | 2016-08-20 06:36:00 | n |
| 108650 | IIEES | YZKH | E | 11.4 | 0.63 | 2016-08-19 13:29:19 | 2016-08-20 06:36:00 | n |
| 108651 | IIEES | ASAO | E | 8.4 | 0.5 | 2016-08-19 13:29:11 | 2016-08-20 06:36:00 | n |
| 108652 | IIEES | ASAO | N | 6.9 | 0.5 | 2016-08-19 13:29:23 | 2016-08-20 06:36:00 | n |
| 108653 | IIEES | KHMZ | E | 3.1 | 0.47 | 2016-08-19 13:29:25 | 2016-08-20 06:36:00 | n |
| 108654 | IIEES | KHMZ | N | 3.6 | 0.42 | 2016-08-19 13:29:29 | 2016-08-20 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-08-19 13:27:15 | 0 | y | 129 | 101 | |||
| IIEES | MRVT | Z | Pn | E | 2016-08-19 13:27:26 | -0.29 | y | 205 | 40 | |||
| IIEES | DAMV | Z | Pn | E | 2016-08-19 13:27:32 | -0.27 | y | 248 | 255 | |||
| IIEES | BJRD | Z | Pn | E | 2016-08-19 13:27:38 | 0.31 | y | 297 | 56 | |||
| IIEES | CHTH | Z | Pn | E | 2016-08-19 13:27:41 | 0.17 | y | 316 | 264 | |||
| IIEES | GHVR | Z | Pn | E | 2016-08-19 13:27:46 | -0.33 | y | 363 | 238 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-19 13:27:47 | 0.13 | y | 368 | 141 | |||
| IIEES | NASN | Z | Pn | E | 2016-08-19 13:27:53 | 0.21 | y | 417 | 204 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-19 13:27:54 | -0.46 | y | 428 | 180 | |||
| IIEES | ASAO | Z | Pn | E | 2016-08-19 13:27:58 | -0.01 | y | 457 | 247 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-08-19 13:28:05 | 0.73 | y | 507 | 238 | |||
