Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2016-10-07 12:02:08.3 |
| Date & Time (Local) | 1395/7/16 15:32:08.3 |

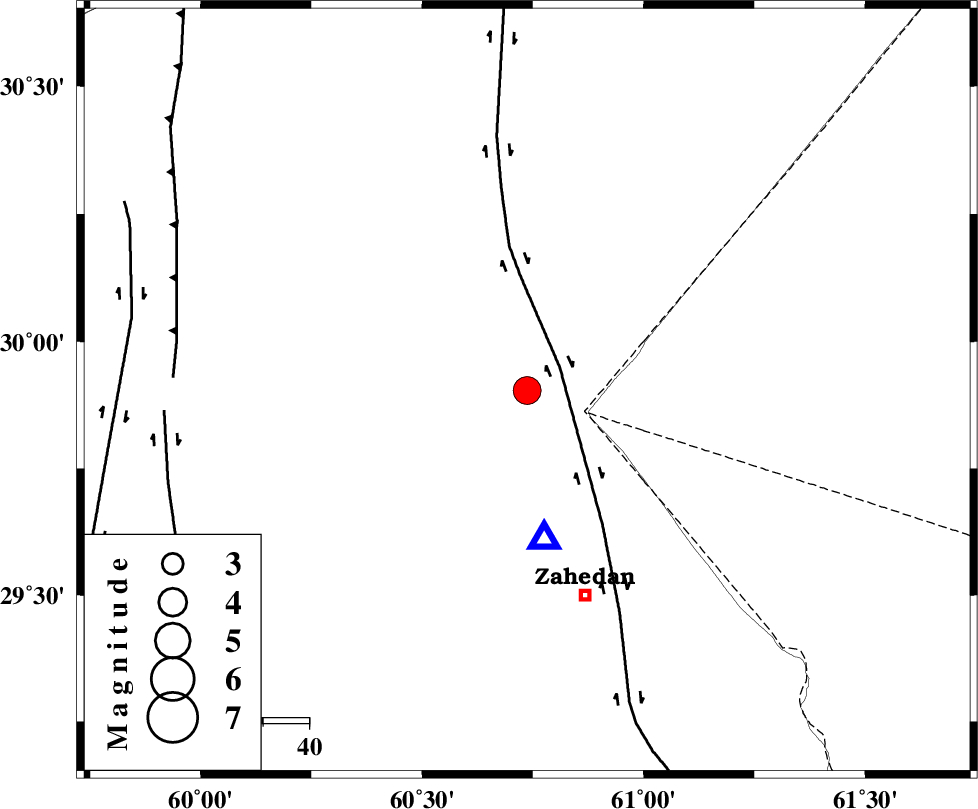

| Location | Lat:29.903 Lon: 60.737 |
| Region | Sistan va Baloochestan Province, 47 km North-West of Zahedan |
Nearest Cities |
|
| 47 km North West of Zahedan, Sistan va Baloochestan Province | |
| 58 km North East of Mohamadabad, Sistan va Baloochestan Province | |
| 73 km South West of Tasuki, Sistan va Baloochestan Province | |
| 73 km North East of Nosratabad, Sistan va Baloochestan Province | |
| 81 km North East of Hesaruyeh, Sistan va Baloochestan Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| ZAHEDAN_F (Length: 190 km) , Distance to epicenter: 9 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 77 km | |
| NOSRATABAD_F_Z3 (Length: 150 km) , Distance to epicenter: 79 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109800 | IIEES | KRBR | N | 172.3 | 0.51 | 2016-10-07 12:03:56 | 2016-10-08 06:29:00 | n |
| 109801 | IIEES | KRBR | E | 205.5 | 0.51 | 2016-10-07 12:04:05 | 2016-10-08 06:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pg | E | 2016-10-07 12:02:14 | 0 | y | 32.5 | 173 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-07 12:02:50 | -0.38 | y | 276 | 326 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-07 12:03:04 | 0.22 | y | 384 | 272 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-07 12:03:08 | 0.34 | y | 417 | 354 | |||
| IIEES | CHBR | Z | Pn | E | 2016-10-07 12:03:15 | -0.08 | y | 478 | 183 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-07 12:03:23 | 0.11 | y | 538 | 321 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-07 12:03:39 | 2.23 | n | 4 | 648 | 297 | ||
| IIEES | SHRO | Z | Pn | E | 2016-10-07 12:03:56 | -0.24 | y | 808 | 328 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-07 12:04:24 | 26.63 | n | 4 | 820 | 295 | ||
