Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2016-10-08 12:09:10.8 |
| Date & Time (Local) | 1395/7/17 15:39:10.8 |

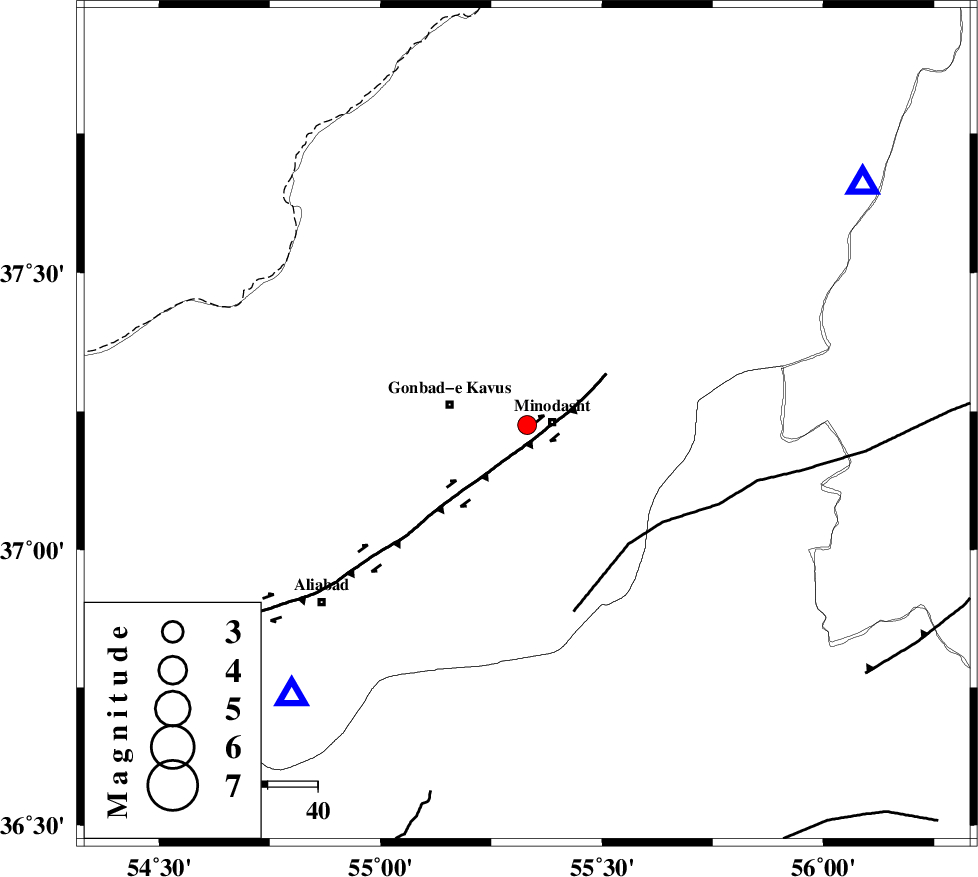

| Location | Lat:37.225 Lon: 55.331 |
| Region | Golestan Province, 5 km of Minodasht |
Nearest Cities |
|
| 5 km of Minodasht, Golestan Province | |
| 9 km of Aqabad, Golestan Province | |
| 9 km of Yanqaq, Golestan Province | |
| 10 km of Galikesh, Golestan Province | |
| 16 km East of Gonbad-e kavus, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 31 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 41 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 51 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109827 | IIEES | MRVT | E | 303.1 | 0.1 | 2016-10-08 12:09:37 | 2016-10-09 06:03:00 | n |
| 109828 | IIEES | MRVT | N | 245.4 | 0.36 | 2016-10-08 12:09:41 | 2016-10-09 06:03:00 | n |
| 109829 | IIEES | BJRD | N | 85.7 | 0.3 | 2016-10-08 12:10:04 | 2016-10-09 06:03:00 | n |
| 109830 | IIEES | BJRD | E | 91.8 | 0.22 | 2016-10-08 12:10:05 | 2016-10-09 06:03:00 | n |
| 109831 | IIEES | DAMV | E | 18.1 | 0.48 | 2016-10-08 12:10:54 | 2016-10-09 06:03:00 | n |
| 109832 | IIEES | DAMV | N | 14.9 | 0.56 | 2016-10-08 12:10:56 | 2016-10-09 06:03:00 | n |
| 109833 | IIEES | CHTH | E | 6.3 | 0.45 | 2016-10-08 12:11:16 | 2016-10-09 06:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-10-08 12:09:24 | -0.4 | y | 82.7 | 54 | |||
| IIEES | MRVT | N | Sg | E | 2016-10-08 12:09:35 | 0.31 | y | 82.7 | 54 | |||
| IIEES | SHRO | Z | Pg | E | 2016-10-08 12:09:35 | -0.38 | y | 148 | 155 | |||
| IIEES | SHRO | N | Sg | E | 2016-10-08 12:09:53 | 0.22 | y | 148 | 155 | |||
| IIEES | BJRD | Z | Pg | E | 2016-10-08 12:09:35 | -6.42 | n | 4 | 191 | 73 | ||
| IIEES | DAMV | Z | Pn | E | 2016-10-08 12:10:01 | -0.27 | y | 349 | 241 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-08 12:10:09 | 0.51 | y | 404 | 250 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-08 12:10:11 | 0.12 | y | 429 | 157 | |||
