Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2016-10-31 12:26:20.0 |
| Date & Time (Local) | 1395/8/10 15:56:20.0 |

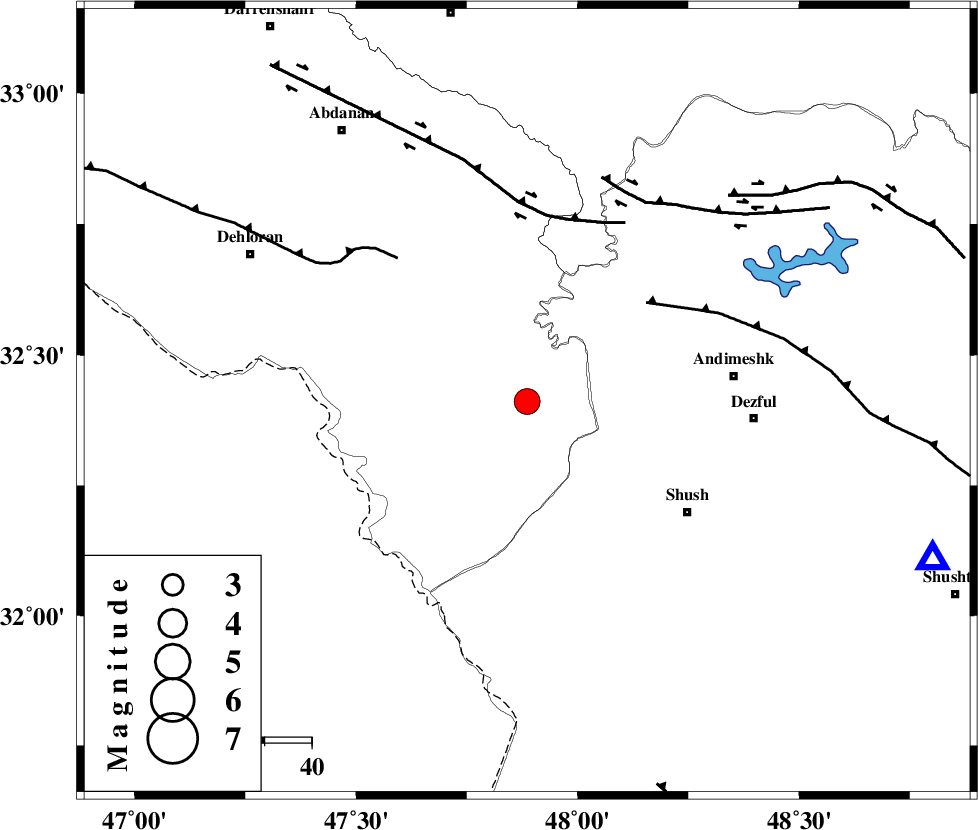

| Location | Lat:32.411 Lon: 47.886 |
| Region | Ilam Province, 44 km -West of Andimeshk |
Nearest Cities |
|
| 41 km North West of Shush, Khoozestan Province | |
| 44 km West of Andimeshk, Khoozestan Province | |
| 45 km North West of Amaleh teimur, Khoozestan Province | |
| 45 km South West of Hoseinieh, Khoozestan Province | |
| 48 km North West of Dezful, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 40 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 41 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110396 | IIEES | KHMZ | N | 217.6 | 0.46 | 2016-10-31 12:27:34 | 2016-10-31 01:09:00 | n |
| 110397 | IIEES | SNGE | E | 209.3 | 0.47 | 2016-10-31 12:27:51 | 2016-10-31 01:09:00 | n |
| 110398 | IIEES | SNGE | N | 200.1 | 0.62 | 2016-10-31 12:27:59 | 2016-10-31 01:09:00 | n |
| 110399 | IIEES | ASAO | E | 154.8 | 0.65 | 2016-10-31 12:27:53 | 2016-10-31 01:09:00 | n |
| 110400 | IIEES | ASAO | N | 193.8 | 0.59 | 2016-10-31 12:27:56 | 2016-10-31 01:09:00 | n |
| 110401 | IIEES | GHVR | N | 101.4 | 0.55 | 2016-10-31 12:28:16 | 2016-10-31 01:09:00 | n |
| 110402 | IIEES | GHVR | E | 136.6 | 0.55 | 2016-10-31 12:28:16 | 2016-10-31 01:09:00 | n |
| 110403 | IIEES | NASN | E | 27.5 | 0.44 | 2016-10-31 12:28:42 | 2016-10-31 01:09:00 | n |
| 110404 | IIEES | AHRM | E | 116 | 0.52 | 2016-10-31 12:29:04 | 2016-10-31 01:09:00 | n |
| 110405 | IIEES | AHRM | N | 102.7 | 0.3 | 2016-10-31 12:29:11 | 2016-10-31 01:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-31 12:26:57 | 0.14 | y | 244 | 52 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-31 12:27:04 | -0.17 | y | 302 | 351 | |||
| IIEES | SNGE | E | Sg | E | 2016-10-31 12:27:45 | 0.01 | y | 302 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-31 12:27:06 | 0.32 | y | 309 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-31 12:27:16 | 1.33 | n | 4 | 388 | 53 | ||
| IIEES | NASN | Z | Pn | E | 2016-10-31 12:27:25 | 0.08 | y | 464 | 83 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-31 12:27:28 | 0.07 | y | 490 | 37 | |||
| IIEES | AHRM | Z | Pn | E | 2016-10-31 12:27:30 | 0.14 | y | 511 | 139 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-31 12:27:31 | -0.45 | y | 519 | 45 | |||
| IIEES | GIDE | Z | Pn | E | 2016-10-31 12:27:33 | 0.15 | y | 534 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-31 12:27:45 | -0.23 | y | 631 | 88 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-31 12:28:12 | -0.55 | y | 848 | 60 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-31 12:28:15 | -0.01 | y | 873 | 78 | |||
