Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2016-11-05 18:32:34.1 |
| Date & Time (Local) | 1395/8/15 22:02:34.1 |

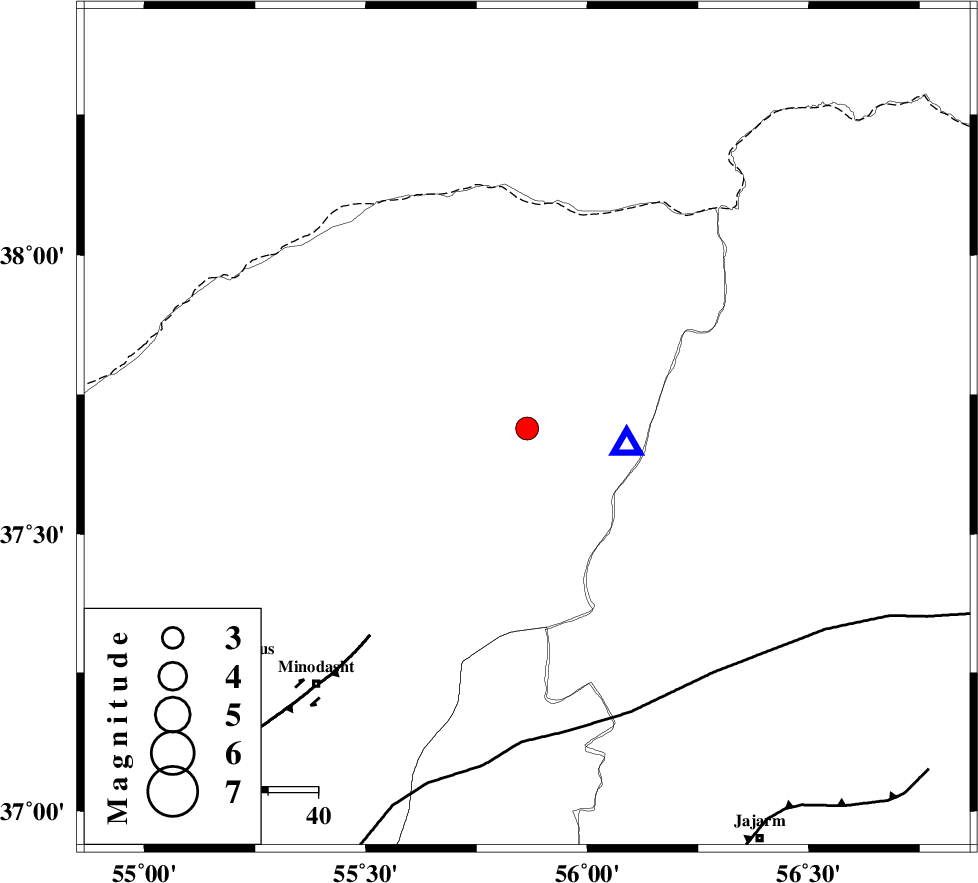

| Location | Lat:37.689 Lon: 55.864 |
| Region | Golestan Province, 48 km North-East of Kalaleh |
Nearest Cities |
|
| 9 km North of Golidagh, Golestan Province | |
| 25 km South of Moravehtappeh, Golestan Province | |
| 28 km North East of Pashikmar, Golestan Province | |
| 34 km East of Qareh aghaj, Golestan Province | |
| 40 km North East of Ajen sangarli, Golestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 60 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 92 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 102 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 5 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110504 | IIEES | MRVT | N | 6213.4 | 0.22 | 2016-11-05 18:32:42 | 2016-11-06 05:40:00 | n |
| 110505 | IIEES | MRVT | E | 15020.3 | 0.27 | 2016-11-05 18:32:42 | 2016-11-06 05:40:00 | n |
| 110506 | IIEES | BJRD | N | 570.6 | 0.44 | 2016-11-05 18:33:18 | 2016-11-06 05:40:00 | n |
| 110507 | IIEES | BJRD | E | 674.7 | 0.29 | 2016-11-05 18:33:19 | 2016-11-06 05:40:00 | n |
| 110508 | IIEES | CHTH | N | 8.2 | 0.56 | 2016-11-05 18:34:55 | 2016-11-06 05:40:00 | n |
| 110509 | IIEES | YZKH | E | 7 | 0.46 | 2016-11-05 18:35:02 | 2016-11-06 05:40:00 | n |
| 110510 | IIEES | YZKH | N | 4.3 | 0.62 | 2016-11-05 18:35:03 | 2016-11-06 05:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-11-05 18:32:38 | 0.54 | y | 20.1 | 99 | |||
| IIEES | BJRD | Z | Pg | E | 2016-11-05 18:32:57 | -0.28 | y | 136 | 89 | |||
| IIEES | BJRD | E | Sg | E | 2016-11-05 18:33:14 | -0.14 | y | 136 | 89 | |||
| IIEES | SHRO | Z | Pg | E | 2016-11-05 18:33:06 | -0.28 | y | 187 | 176 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-05 18:33:34 | -0.27 | y | 416 | 238 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-05 18:33:40 | 0.69 | y | 462 | 165 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-05 18:33:40 | 0.13 | y | 467 | 246 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-05 18:33:57 | 0.07 | y | 599 | 192 | |||
| IIEES | SHRT | Z | Pn | E | 2016-11-05 18:33:56 | -0.52 | y | 601 | 137 | |||
| IIEES | BSRN | Z | Pn | E | 2016-11-05 18:34:09 | 0.05 | y | 701 | 154 | |||
