Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-11-20 18:07:11.6 |
| Date & Time (Local) | 1395/8/30 21:37:11.6 |

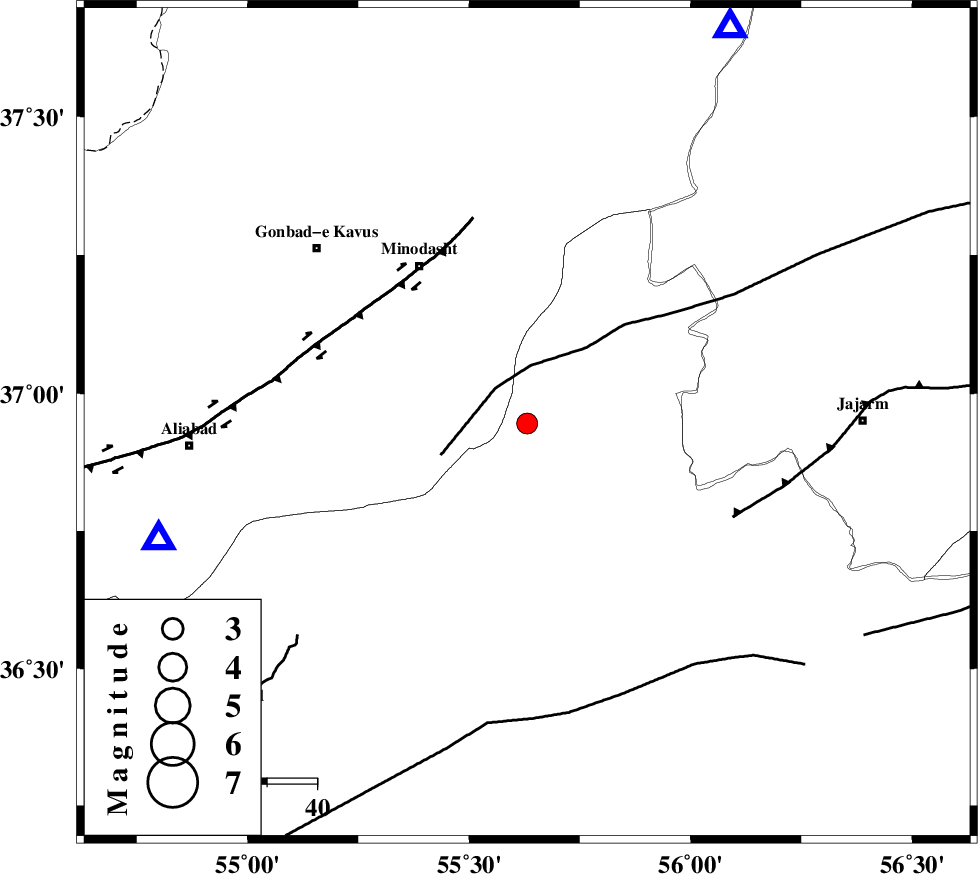

| Location | Lat:36.945 Lon: 55.631 |
| Region | Semnan Province, 38 km South-East of Minodasht |
Nearest Cities |
|
| 5 km of Qaleh qafeh, Semnan Province | |
| 16 km East of Qale-ye qafeh, Golestan Province | |
| 17 km West of Nardin, Semnan Province | |
| 18 km East of Farsian, Golestan Province | |
| 20 km South of Rezvan, Semnan Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 10 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 42 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 45 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110893 | IIEES | BJRD | E | 146.3 | 0.68 | 2016-11-20 18:08:07 | 2016-11-21 10:09:00 | n |
| 110894 | IIEES | BJRD | N | 155.9 | 0.42 | 2016-11-20 18:08:07 | 2016-11-21 10:09:00 | n |
| 110895 | IIEES | DAMV | E | 24.1 | 0.51 | 2016-11-20 18:08:59 | 2016-11-21 10:09:00 | n |
| 110896 | IIEES | DAMV | N | 16.7 | 0.51 | 2016-11-20 18:09:01 | 2016-11-21 10:09:00 | n |
| 110897 | IIEES | GHVR | E | 12.4 | 0.63 | 2016-11-20 18:09:39 | 2016-11-21 10:09:00 | n |
| 110898 | IIEES | GHVR | N | 8.4 | 0.48 | 2016-11-20 18:09:40 | 2016-11-21 10:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-11-20 18:07:26 | -0.16 | y | 89.1 | 27 | |||
| IIEES | MRVT | N | Sg | E | 2016-11-20 18:07:38 | 0.07 | y | 89.1 | 27 | |||
| IIEES | SHRO | Z | Pg | E | 2016-11-20 18:07:30 | 0.08 | y | 109 | 162 | |||
| IIEES | SHRO | E | Sg | E | 2016-11-20 18:07:43 | -0.02 | y | 109 | 162 | |||
| IIEES | BJRD | Z | Pg | E | 2016-11-20 18:07:37 | -2.98 | n | 4 | 178 | 61 | ||
| IIEES | DAMV | Z | Pn | E | 2016-11-20 18:08:03 | 0.07 | y | 360 | 247 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-20 18:08:06 | 0.03 | y | 390 | 159 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-20 18:08:10 | 0.35 | y | 420 | 255 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-20 18:08:17 | -0.49 | y | 482 | 237 | |||
