Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-12-09 15:41:22.4 |
| Date & Time (Local) | 1395/9/19 19:11:22.4 |

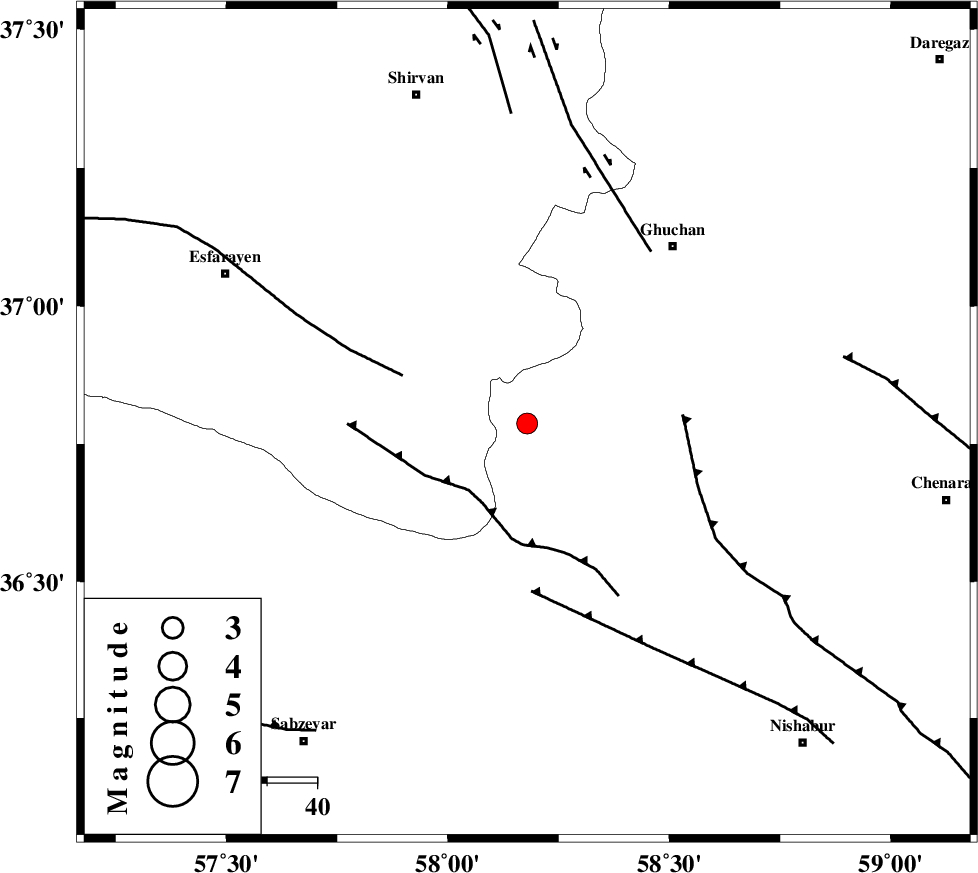

| Location | Lat:36.787 Lon: 58.179 |
| Region | Khorasan(center) Province, 46 km South-West of Quchan |
Nearest Cities |
|
| 24 km South East of Bam, Khorasan(north) Province | |
| 24 km North East of Safiabad, Khorasan(north) Province | |
| 25 km South West of Yangi qaleh, Khorasan(center) Province | |
| 25 km North West of Abdollahgiv, Khorasan(center) Province | |
| 27 km West of Chakaneh, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| RIVAND_F (Length: 70 km) , Distance to epicenter: 18 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 27 km | |
| BINALUD_F1 (Length: 129 km) , Distance to epicenter: 31 km | |
| Number of Phases | 11 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111239 | IIEES | BJRD | N | 279.5 | 0.3 | 2016-12-09 15:42:03 | 2016-12-10 10:16:00 | n |
| 111240 | IIEES | BJRD | E | 315.3 | 0.45 | 2016-12-09 15:42:03 | 2016-12-10 10:16:00 | n |
| 111241 | IIEES | MRVT | N | 158.1 | 0.49 | 2016-12-09 15:42:25 | 2016-12-10 10:16:00 | n |
| 111242 | IIEES | MRVT | E | 140 | 0.49 | 2016-12-09 15:42:28 | 2016-12-10 10:16:00 | n |
| 111243 | IIEES | SHRO | E | 202.3 | 0.51 | 2016-12-09 15:42:24 | 2016-12-10 10:16:00 | n |
| 111244 | IIEES | SHRO | N | 171.2 | 0.42 | 2016-12-09 15:42:25 | 2016-12-10 10:16:00 | n |
| 111245 | IIEES | TABS | N | 16 | 0.55 | 2016-12-09 15:43:04 | 2016-12-10 10:16:00 | n |
| 111246 | IIEES | TABS | E | 10 | 0.49 | 2016-12-09 15:43:23 | 2016-12-10 10:16:00 | n |
| 111247 | IIEES | SHRT | N | 10.8 | 0.7 | 2016-12-09 15:43:05 | 2016-12-10 10:16:00 | n |
| 111248 | IIEES | SHRT | E | 10.6 | 0.7 | 2016-12-09 15:43:36 | 2016-12-10 10:16:00 | n |
| 111249 | IIEES | DAMV | N | 4.2 | 0.79 | 2016-12-09 15:44:09 | 2016-12-10 10:16:00 | n |
| 111250 | IIEES | DAMV | E | 3.6 | 0.34 | 2016-12-09 15:44:29 | 2016-12-10 10:16:00 | n |
| 111251 | IIEES | YZKH | N | 3.9 | 0.46 | 2016-12-09 15:44:24 | 2016-12-10 10:16:00 | n |
| 111252 | IIEES | YZKH | E | 3.7 | 0.69 | 2016-12-09 15:44:34 | 2016-12-10 10:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2016-12-09 15:41:42 | -0.15 | y | 122 | 326 | |||
| IIEES | MRVT | Z | Pn | E | 2016-12-09 15:41:56 | 0.03 | y | 209 | 298 | |||
| IIEES | MRVT | N | Sg | E | 2016-12-09 15:42:22 | 0.18 | y | 209 | 298 | |||
| IIEES | SHRO | Z | Pn | E | 2016-12-09 15:41:56 | -0.08 | y | 213 | 247 | |||
| IIEES | SHRO | N | Sg | E | 2016-12-09 15:42:22 | -0.03 | y | 213 | 247 | |||
| IIEES | TABS | Z | Pn | E | 2016-12-09 15:42:14 | 0 | y | 361 | 196 | |||
| IIEES | SHRT | Z | Pn | E | 2016-12-09 15:42:19 | 0.27 | y | 398 | 150 | |||
| IIEES | BSRN | Z | Pn | E | 2016-12-09 15:42:37 | -0.25 | y | 542 | 170 | |||
| IIEES | DAMV | Z | Pn | E | 2016-12-09 15:42:41 | -0.08 | y | 573 | 259 | |||
| IIEES | YZKH | Z | Pn | E | 2016-12-09 15:42:43 | 0.15 | y | 588 | 215 | |||
| IIEES | CHTH | Z | Pn | E | 2016-12-09 15:42:49 | -0.1 | y | 640 | 263 | |||
