Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2016-12-14 13:59:34.5 |
| Date & Time (Local) | 1395/9/24 17:29:34.5 |

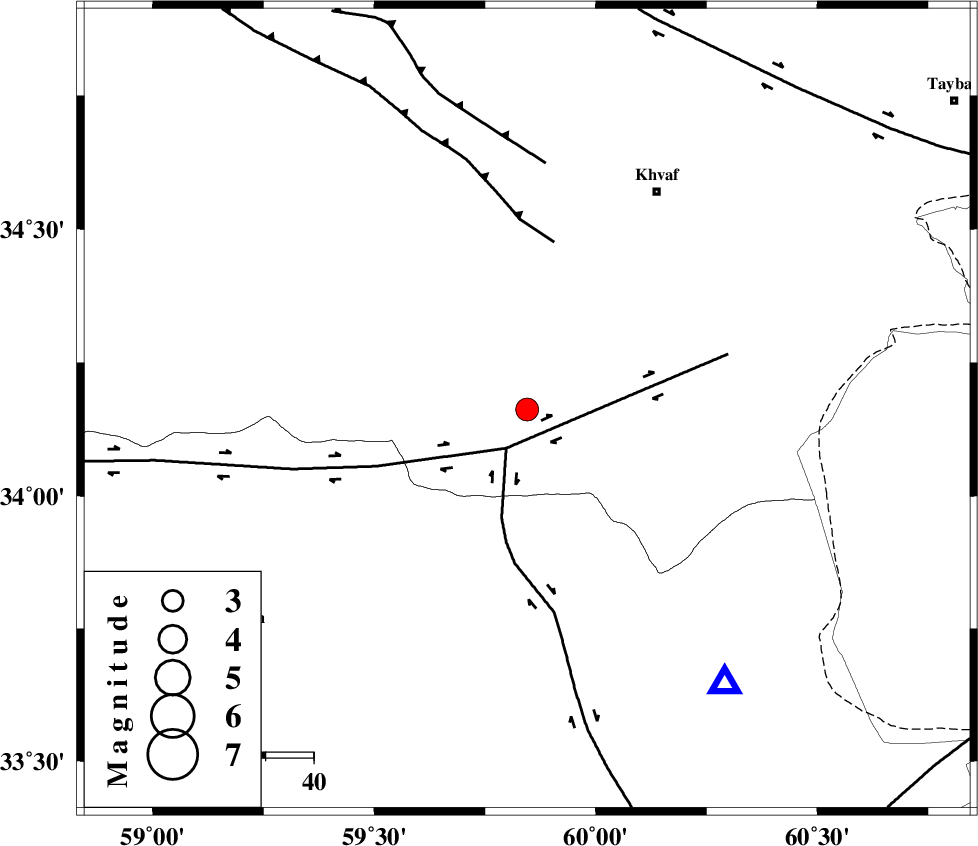

| Location | Lat:34.162 Lon: 59.845 |
| Region | Khorasan(center) Province, 53 km South-West of Khaf |
Nearest Cities |
|
| 13 km South of Ebrahimi, Khorasan(center) Province | |
| 21 km South of Zuzan, Khorasan(center) Province | |
| 23 km South of Qasemabad, Khorasan(center) Province | |
| 24 km South West of Biasabad, Khorasan(center) Province | |
| 25 km West of Pasgah-e chazul, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 9 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 9 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 35 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111385 | IIEES | SHRT | E | 1459.1 | 0.37 | 2016-12-14 13:59:59 | 2016-12-18 07:44:00 | n |
| 111386 | IIEES | SHRT | N | 2112.4 | 0.27 | 2016-12-14 13:59:59 | 2016-12-18 07:44:00 | n |
| 111387 | IIEES | TABS | N | 122 | 0.45 | 2016-12-14 14:00:52 | 2016-12-18 07:44:00 | n |
| 111388 | IIEES | TABS | E | 61.1 | 0.61 | 2016-12-14 14:00:56 | 2016-12-18 07:44:00 | n |
| 111389 | IIEES | SHRO | N | 25.2 | 0.47 | 2016-12-14 14:01:36 | 2016-12-18 07:44:00 | n |
| 111390 | IIEES | SHRO | E | 26.7 | 0.47 | 2016-12-14 14:01:41 | 2016-12-18 07:44:00 | n |
| 111391 | IIEES | BJRD | E | 16.4 | 0.58 | 2016-12-14 14:01:57 | 2016-12-18 07:44:00 | n |
| 111392 | IIEES | BJRD | N | 11.8 | 0.67 | 2016-12-14 14:02:05 | 2016-12-18 07:44:00 | n |
| 111393 | IIEES | YZKH | N | 14.9 | 0.42 | 2016-12-14 14:02:07 | 2016-12-18 07:44:00 | n |
| 111394 | IIEES | YZKH | E | 20.6 | 0.56 | 2016-12-14 14:02:12 | 2016-12-18 07:44:00 | n |
| 111395 | IIEES | KRBR | N | 9.8 | 0.46 | 2016-12-14 14:01:54 | 2016-12-18 07:44:00 | n |
| 111396 | IIEES | KRBR | E | 11.1 | 0.46 | 2016-12-14 14:02:24 | 2016-12-18 07:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2016-12-14 13:59:46 | -0.05 | y | 70.5 | 144 | |||
| IIEES | SHRT | N | Sg | E | 2016-12-14 13:59:55 | 0.02 | y | 70.5 | 144 | |||
| IIEES | TABS | Z | Pn | E | 2016-12-14 14:00:14 | -0.01 | y | 258 | 258 | |||
| IIEES | TABS | N | Sg | E | 2016-12-14 14:00:47 | 0.03 | y | 258 | 258 | |||
| IIEES | SHRO | Z | Pn | E | 2016-12-14 14:00:32 | -0.21 | y | 405 | 301 | |||
| IIEES | BJRD | Z | Pn | E | 2016-12-14 14:00:38 | 0.14 | y | 450 | 331 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-12-14 14:00:57 | 11.63 | n | 4 | 512 | 170 | ||
| IIEES | MRVT | Z | Pn | E | 2016-12-14 14:00:46 | 0.06 | y | 515 | 320 | |||
| IIEES | YZKH | Z | Pn | E | 2016-12-14 14:00:47 | -0.08 | y | 527 | 250 | |||
| IIEES | KRBR | Z | Pn | E | 2016-12-14 14:00:50 | 0.16 | y | 547 | 213 | |||
