Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-12-28 00:01:39.6 |
| Date & Time (Local) | 1395/10/8 03:31:39.6 |

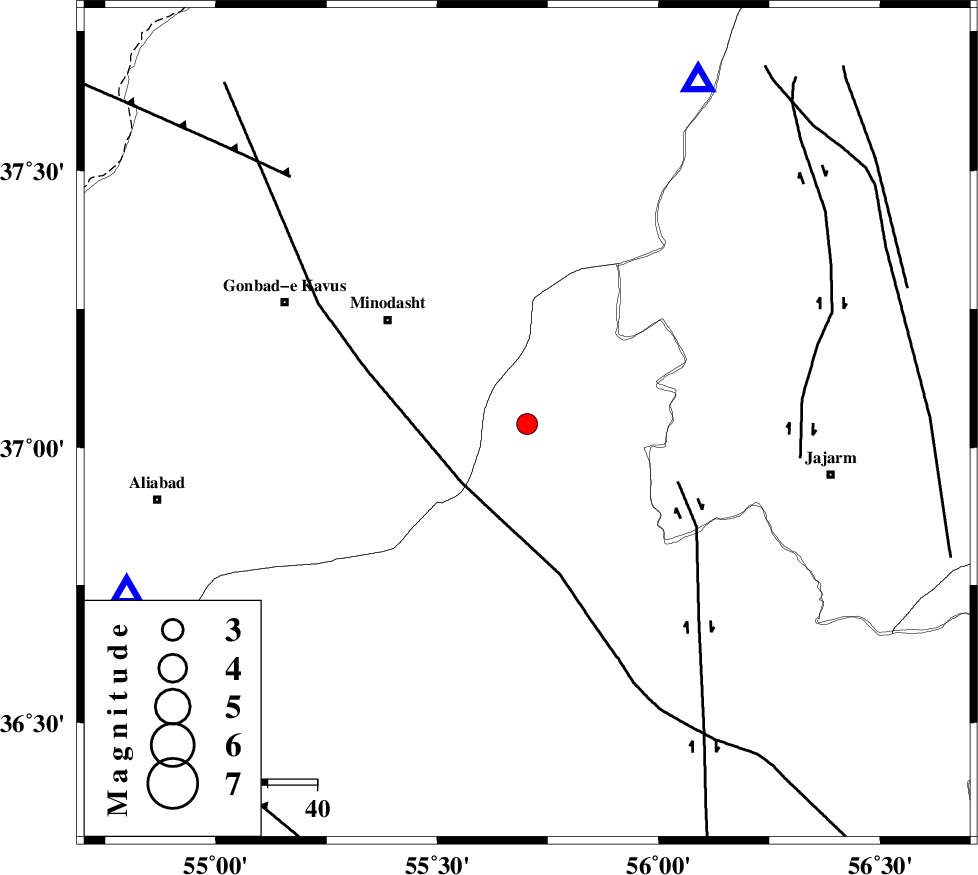

| Location | Lat:37.042 Lon: 55.703 |
| Region | Semnan Province, 35 km South-East of Minodasht |
Nearest Cities |
|
| 7 km North of Nardin, Semnan Province | |
| 8 km of Rezvan, Semnan Province | |
| 8 km North of Qaleh qafeh, Semnan Province | |
| 14 km East of Duzin, Golestan Province | |
| 18 km North East of Qale-ye qafeh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 6 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 46 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 53 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >3 km |
| Error in Longitude | 6.6 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111864 | IIEES | BJRD | E | 294.5 | 0.8 | 2016-12-28 00:02:34 | 2016-12-28 08:37:00 | n |
| 111865 | IIEES | BJRD | N | 235.6 | 0.48 | 2016-12-28 00:02:36 | 2016-12-28 08:37:00 | n |
| 111866 | IIEES | DAMV | E | 16.4 | 0.62 | 2016-12-28 00:03:42 | 2016-12-28 08:37:00 | n |
| 111867 | IIEES | TABS | N | 14.1 | 0.55 | 2016-12-28 00:03:47 | 2016-12-28 08:37:00 | n |
| 111868 | IIEES | GHVR | E | 11.9 | 0.45 | 2016-12-28 00:04:18 | 2016-12-28 08:37:00 | n |
| 111869 | IIEES | GHVR | N | 9.3 | 0.36 | 2016-12-28 00:04:26 | 2016-12-28 08:37:00 | n |
| 111870 | IIEES | YZKH | N | 5 | 0.43 | 2016-12-28 00:04:27 | 2016-12-28 08:37:00 | n |
| 111871 | IIEES | YZKH | E | 6.6 | 0.62 | 2016-12-28 00:04:37 | 2016-12-28 08:37:00 | n |
| 111872 | IIEES | NASN | E | 3.1 | 0.51 | 2016-12-28 00:04:40 | 2016-12-28 08:37:00 | n |
| 111873 | IIEES | ASAO | E | 2.3 | 0.52 | 2016-12-28 00:04:44 | 2016-12-28 08:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-12-28 00:01:52 | -0.07 | y | 76.6 | 26 | |||
| IIEES | SHRO | Z | Pg | E | 2016-12-28 00:01:59 | 0.05 | y | 118 | 166 | |||
| IIEES | SHRO | N | Sg | E | 2016-12-28 00:02:13 | -0.07 | y | 118 | 166 | |||
| IIEES | BJRD | Z | Pg | E | 2016-12-28 00:02:07 | 0.1 | y | 168 | 64 | |||
| IIEES | DAMV | Z | Pn | E | 2016-12-28 00:02:34 | 0.66 | y | 370 | 246 | |||
| IIEES | TABS | Z | Pn | E | 2016-12-28 00:02:36 | 0.17 | y | 398 | 161 | |||
| IIEES | GHVR | Z | Pn | E | 2016-12-28 00:02:47 | -0.98 | y | 493 | 236 | |||
| IIEES | YZKH | Z | Pn | E | 2016-12-28 00:02:52 | -0.31 | y | 526 | 191 | |||
| IIEES | NASN | Z | Pn | E | 2016-12-28 00:02:55 | 0.79 | y | 540 | 210 | |||
| IIEES | SHRT | Z | Pn | E | 2016-12-28 00:02:56 | -0.34 | y | 562 | 131 | |||
| IIEES | ASAO | Z | Pn | E | 2016-12-28 00:02:59 | -0.35 | y | 583 | 243 | |||
| IIEES | BSRN | Z | Pn | E | 2016-12-28 00:03:07 | 0.16 | y | 645 | 150 | |||
