Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2017-01-22 05:25:00.5 |
| Date & Time (Local) | 1395/11/3 08:55:00.5 |

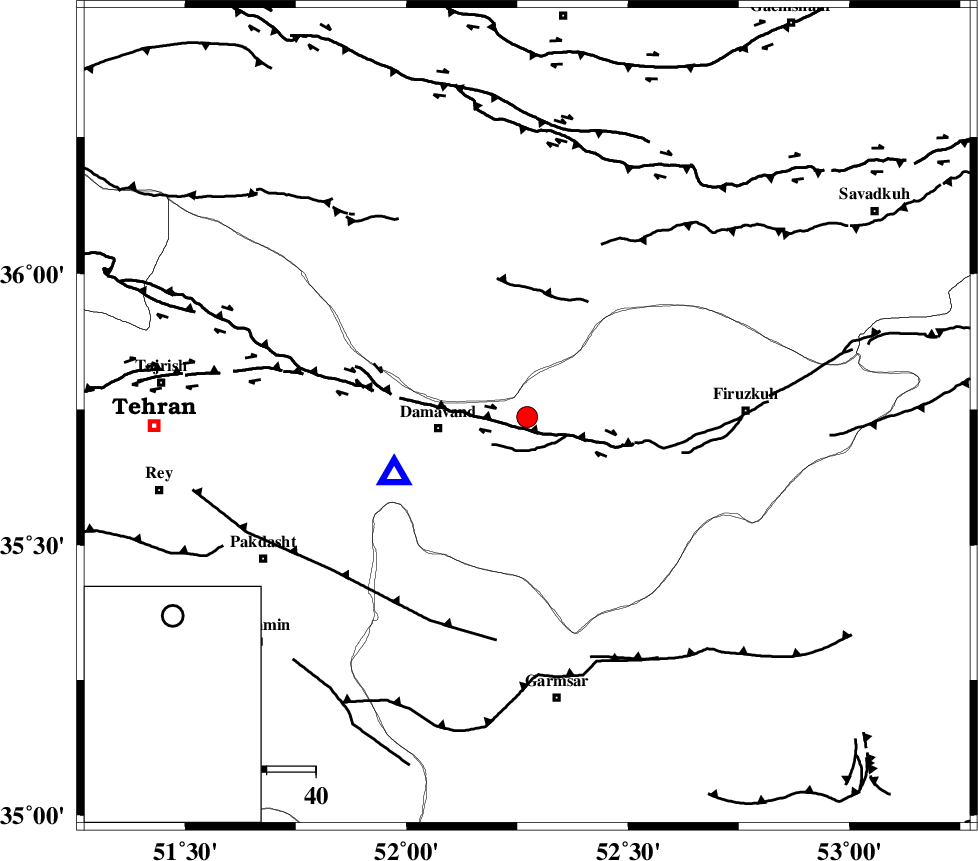

| Location | Lat:35.736 Lon: 52.272 |
| Region | Tehran Province, 18 km -East of Damavand |
Nearest Cities |
|
| 11 km North of Sarbandan, Tehran Province | |
| 18 km North East of Mara, Tehran Province | |
| 18 km North East of Damavand, Tehran Province | |
| 19 km South East of Rineh, Mazandaran Province | |
| 20 km South of Gaznak, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 2 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 45 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 46 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112472 | IIEES | DAMV | N | 3373.6 | 0.16 | 2017-01-22 05:25:11 | 2017-01-22 05:53:00 | n |
| 112473 | IIEES | DAMV | E | 2948.1 | 0.14 | 2017-01-22 05:25:13 | 2017-01-22 05:53:00 | n |
| 112474 | IIEES | CHTH | N | 280.6 | 0.18 | 2017-01-22 05:25:32 | 2017-01-22 05:53:00 | n |
| 112475 | IIEES | THKV | N | 318.6 | 0.26 | 2017-01-22 05:25:40 | 2017-01-22 05:53:00 | n |
| 112476 | IIEES | THKV | E | 354.3 | 0.56 | 2017-01-22 05:25:41 | 2017-01-22 05:53:00 | n |
| 112477 | IIEES | GHVR | E | 287.3 | 0.24 | 2017-01-22 05:25:56 | 2017-01-22 05:53:00 | n |
| 112478 | IIEES | GHVR | N | 145.7 | 0.48 | 2017-01-22 05:25:59 | 2017-01-22 05:53:00 | n |
| 112479 | IIEES | ASAO | N | 68.7 | 0.33 | 2017-01-22 05:26:11 | 2017-01-22 05:53:00 | n |
| 112480 | IIEES | ASAO | E | 62 | 0.39 | 2017-01-22 05:26:11 | 2017-01-22 05:53:00 | n |
| 112481 | IIEES | GIDE | N | 49.3 | 0.52 | 2017-01-22 05:26:24 | 2017-01-22 05:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2017-01-22 05:25:06 | -0.24 | y | 29.7 | 247 | |||
| IIEES | CHTH | Z | Pg | E | 2017-01-22 05:25:18 | -0.48 | y | 105 | 281 | |||
| IIEES | THKV | Z | Pg | E | 2017-01-22 05:25:22 | 0.57 | y | 127 | 279 | |||
| IIEES | GHVR | Z | Pg | E | 2017-01-22 05:25:28 | 0.12 | y | 168 | 214 | |||
| IIEES | ASAO | Z | Pn | E | 2017-01-22 05:25:38 | 0.2 | y | 244 | 238 | |||
| IIEES | ASAO | N | Sg | E | 2017-01-22 05:26:09 | -0.38 | y | 244 | 238 | |||
| IIEES | GIDE | Z | Pn | E | 2017-01-22 05:25:41 | 2.53 | n | 4 | 250 | 303 | ||
| IIEES | KHMZ | Z | Pn | E | 2017-01-22 05:25:47 | 0.73 | y | 306 | 224 | |||
| IIEES | NASN | Z | Pn | E | 2017-01-22 05:25:49 | -0.19 | y | 329 | 171 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-01-22 05:25:54 | 4.33 | n | 4 | 339 | 289 | ||
| IIEES | SHRO | Z | Pn | E | 2017-01-22 05:25:50 | 0.31 | y | 339 | 84 | |||
| IIEES | MRVT | Z | Pn | E | 2017-01-22 05:25:57 | -0.44 | y | 402 | 57 | |||
| IIEES | YZKH | Z | Pn | E | 2017-01-22 05:26:01 | -0.17 | y | 428 | 149 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-22 05:26:04 | -0.02 | y | 453 | 262 | |||
| IIEES | TABS | Z | Pn | E | 2017-01-22 05:26:10 | -0.11 | y | 501 | 116 | |||
