Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2017-02-05 13:46:25.7 |
| Date & Time (Local) | 1395/11/17 17:16:25.7 |

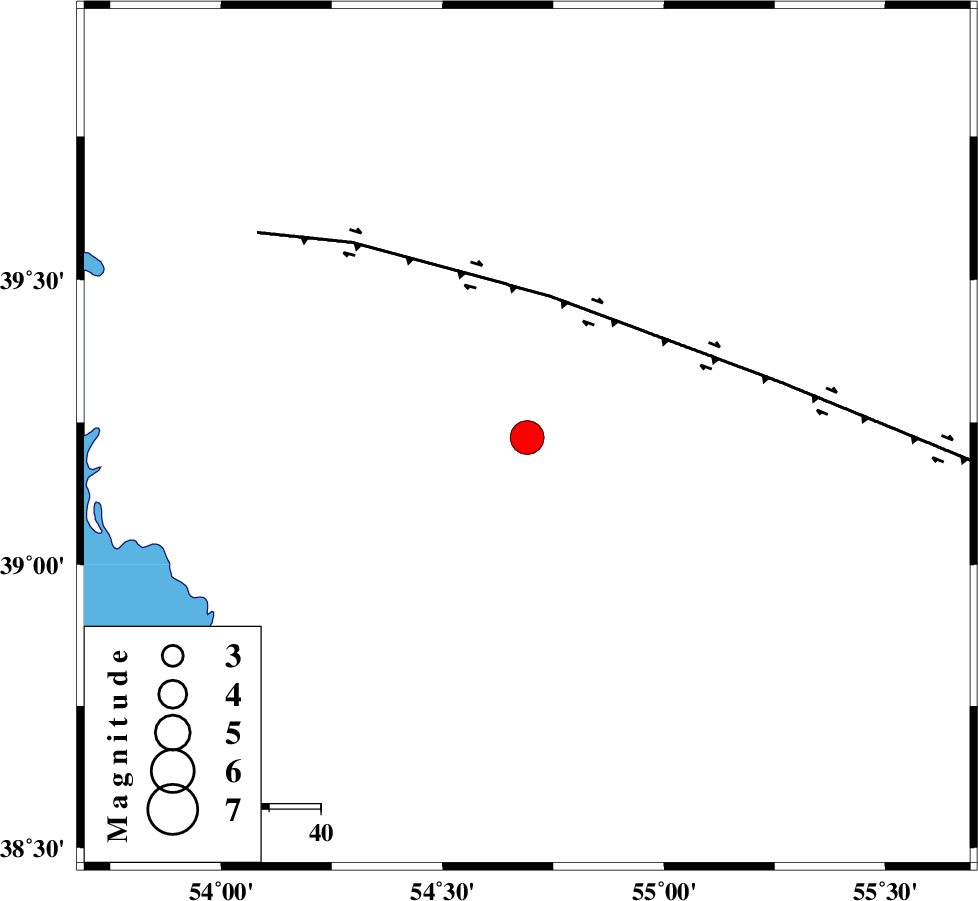

| Location | Lat:39.223 Lon: 54.691 |
| Region | Turkmenistan |
Nearest Cities |
|
| 158 km North West of Karand, Golestan Province | |
| 172 km South East of Turkmenbasi, Turkmenistan Province | |
| 176 km North West of Qareh aghaj, Golestan Province | |
| 178 km North West of Dashliborun, Golestan Province | |
| 184 km North West of Moravehtappeh, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 28 km | |
| Number of Phases | 25 |
| RMS | 0.5 |
| Number of Stations | 25 |
| Error in Latitude | >8.3 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112990 | IIEES | BJRD | N | 5372.3 | 0.82 | 2017-02-05 13:47:56 | 2017-02-06 05:57:00 | n |
| 112991 | IIEES | BJRD | E | 3804 | 0.57 | 2017-02-05 13:47:59 | 2017-02-06 05:57:00 | n |
| 112992 | IIEES | DAMV | N | 660.8 | 0.29 | 2017-02-05 13:48:24 | 2017-02-06 05:57:00 | n |
| 112993 | IIEES | GIDE | E | 414 | 0.64 | 2017-02-05 13:48:26 | 2017-02-06 05:57:00 | n |
| 112994 | IIEES | GIDE | N | 547.6 | 0.45 | 2017-02-05 13:48:34 | 2017-02-06 05:57:00 | n |
| 112995 | IIEES | THKV | E | 1152.6 | 0.54 | 2017-02-05 13:48:32 | 2017-02-06 05:57:00 | n |
| 112996 | IIEES | THKV | N | 912.8 | 0.36 | 2017-02-05 13:48:32 | 2017-02-06 05:57:00 | n |
| 112997 | IIEES | GRMI | N | 252.4 | 0.48 | 2017-02-05 13:48:55 | 2017-02-06 05:57:00 | n |
| 112998 | IIEES | GRMI | E | 191.3 | 0.72 | 2017-02-05 13:48:56 | 2017-02-06 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-02-05 13:46:59 | -0.19 | y | 212 | 144 | |||
| IIEES | BJRD | Z | Pn | E | 2017-02-05 13:47:04 | -4.96 | n | 4 | 291 | 125 | ||
| IIEES | SHRO | Z | Pn | E | 2017-02-05 13:47:20 | 0.08 | y | 375 | 161 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-05 13:47:32 | 0.67 | y | 466 | 212 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-05 13:47:33 | -0.57 | y | 484 | 222 | |||
| IIEES | GIDE | Z | Pn | E | 2017-02-05 13:47:33 | -0.46 | y | 491 | 240 | |||
| IIEES | THKV | Z | Pn | E | 2017-02-05 13:47:35 | -0.08 | y | 498 | 224 | |||
| IIEES | GRMI | Z | Pn | E | 2017-02-05 13:47:46 | 0.23 | y | 590 | 268 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-02-05 13:47:47 | -0.19 | y | 599 | 244 | |||
| IIEES | GHVR | Z | Pn | E | 2017-02-05 13:47:48 | -0.37 | y | 609 | 211 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-05 13:47:55 | 0.38 | y | 656 | 160 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-05 13:47:56 | 0.24 | y | 665 | 220 | |||
| IIEES | NASN | Z | Pn | E | 2017-02-05 13:48:04 | -0.49 | y | 733 | 194 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-05 13:48:06 | 0.77 | y | 741 | 216 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-05 13:48:12 | -0.22 | y | 796 | 139 | |||
| IIEES | SNGE | Z | Pn | E | 2017-02-05 13:48:12 | 0.35 | y | 797 | 237 | |||
| IIEES | MAKU | Z | Pn | E | 2017-02-05 13:48:20 | 0.09 | y | 863 | 274 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-05 13:48:24 | -0.21 | y | 900 | 152 | |||
| IIEES | ILBA | Z | Pn | E | 2017-02-05 13:48:35 | 0.29 | y | 981 | 233 | |||
| IIEES | KRBR | Z | Pn | E | 2017-02-05 13:48:42 | 0 | y | 1042 | 169 | |||
| IIEES | AHRM | Z | Pn | E | 2017-02-05 13:49:00 | -0.71 | y | 1190 | 196 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-02-05 13:49:04 | 1.89 | y | 1203 | 151 | |||
| IIEES | GHIR | Z | Pn | E | 2017-02-05 13:49:05 | -0.03 | y | 1223 | 188 | |||
| IIEES | BNDS | Z | Pn | E | 2017-02-05 13:49:17 | -0.06 | y | 1318 | 174 | |||
| IIEES | CHBR | Z | Pn | E | 2017-02-05 13:49:52 | -0.33 | y | 1605 | 159 | |||
