Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2017-02-06 04:03:55.9 |
| Date & Time (Local) | 1395/11/18 07:33:55.9 |

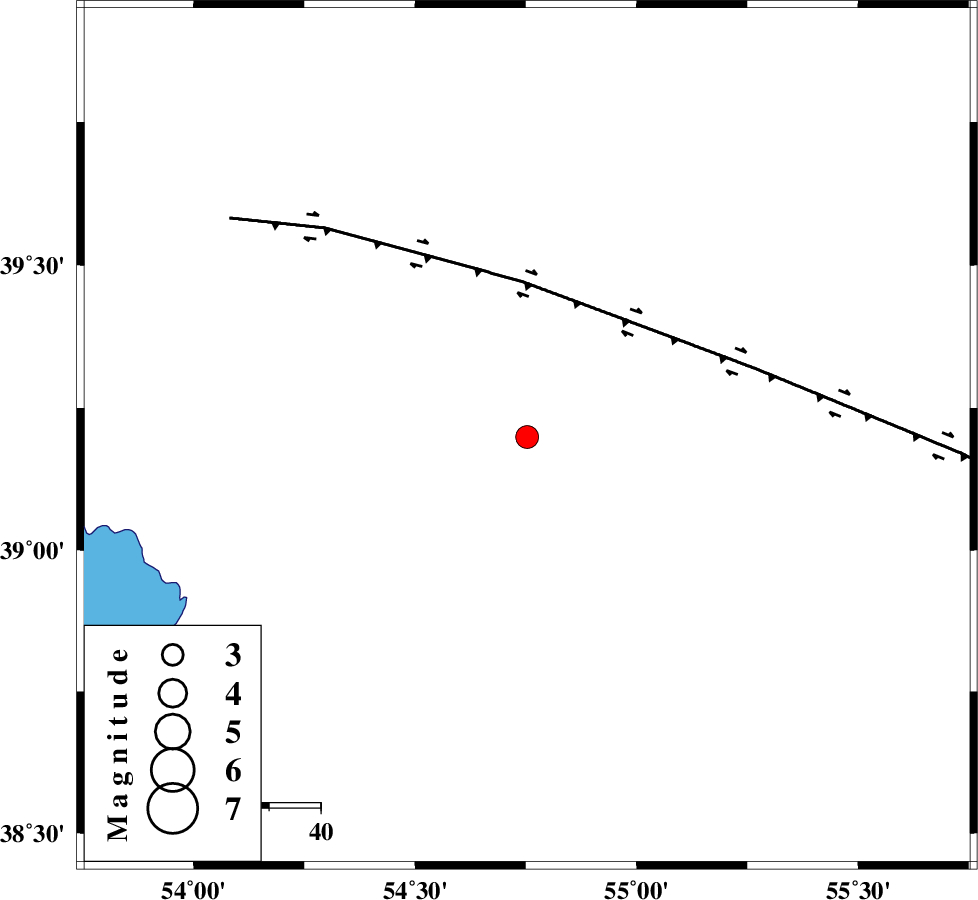

| Location | Lat:39.199 Lon: 54.753 |
| Region | Turkmenistan |
Nearest Cities |
|
| 153 km North West of Karand, Golestan Province | |
| 171 km North West of Qareh aghaj, Golestan Province | |
| 175 km North of Dashliborun, Golestan Province | |
| 178 km South East of Turkmenbasi, Turkmenistan Province | |
| 178 km North West of Moravehtappeh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 31 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 146 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 13 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113043 | IIEES | BJRD | E | 66.8 | 0.68 | 2017-02-06 04:05:23 | 2017-02-06 07:44:00 | n |
| 113044 | IIEES | BJRD | N | 68.4 | 0.68 | 2017-02-06 04:05:25 | 2017-02-06 07:44:00 | n |
| 113045 | IIEES | DAMV | N | 26.3 | 0.21 | 2017-02-06 04:05:54 | 2017-02-06 07:44:00 | n |
| 113046 | IIEES | GIDE | N | 12.5 | 0.2 | 2017-02-06 04:05:55 | 2017-02-06 07:44:00 | n |
| 113047 | IIEES | THKV | N | 39.9 | 0.4 | 2017-02-06 04:06:01 | 2017-02-06 07:44:00 | n |
| 113048 | IIEES | THKV | E | 39.4 | 0.48 | 2017-02-06 04:06:02 | 2017-02-06 07:44:00 | n |
| 113049 | IIEES | GRMI | N | 13.2 | 0.35 | 2017-02-06 04:06:18 | 2017-02-06 07:44:00 | n |
| 113050 | IIEES | GRMI | E | 8.6 | 0.42 | 2017-02-06 04:06:22 | 2017-02-06 07:44:00 | n |
| 113051 | IIEES | ZNJK | E | 5.9 | 0.56 | 2017-02-06 04:06:30 | 2017-02-06 07:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-02-06 04:04:29 | 0 | y | 207 | 145 | |||
| IIEES | MRVT | N | Sg | E | 2017-02-06 04:04:54 | -0.17 | y | 207 | 145 | |||
| IIEES | BJRD | Z | Pn | E | 2017-02-06 04:04:31 | -7.71 | n | 4 | 285 | 125 | ||
| IIEES | SHRO | Z | Pn | E | 2017-02-06 04:04:50 | 0.27 | y | 371 | 162 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-06 04:05:01 | 0.19 | y | 466 | 213 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-06 04:05:04 | -0.15 | y | 486 | 222 | |||
| IIEES | GIDE | Z | Pn | E | 2017-02-06 04:05:05 | -0.12 | y | 494 | 241 | |||
| IIEES | THKV | Z | Pn | E | 2017-02-06 04:05:05 | 0.12 | y | 500 | 224 | |||
| IIEES | GRMI | Z | Pn | E | 2017-02-06 04:05:17 | 0.06 | y | 596 | 268 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-02-06 04:05:18 | -0.17 | y | 603 | 244 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-06 04:05:24 | 0.24 | y | 651 | 160 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-06 04:05:41 | -0.22 | y | 791 | 139 | |||
| IIEES | MAKU | Z | Pn | E | 2017-02-06 04:05:51 | -0.28 | y | 869 | 274 | |||
| IIEES | BSRN | Z | P | E | 2017-02-06 04:05:54 | 0.06 | y | 895 | 152 | |||
